Industrial Lcd Screen Touch Monitor 17 Inch DC9-36V Input For Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis And Aluminum Front Bezel | Brightness | 250nits, 350nnits, 1000nits, 1500nits Optional |
|---|---|---|---|
| I/O | VGA, DVI, HDMI Inputs, USB Port, DC 9-36V Input | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Capacitive Touch Screen Or Resistive Touch |
| 24/7/365 Use | Supported | Resolution | 1280*1024 |
| Warranty | 2 Years | ||
| High Light | 1280x1024 Lcd Screen Touch Monitor,RoHS Compliance Industrial Lcd Panel,OEM 17 inch Lcd Industrial Monitor |
||
Product Description

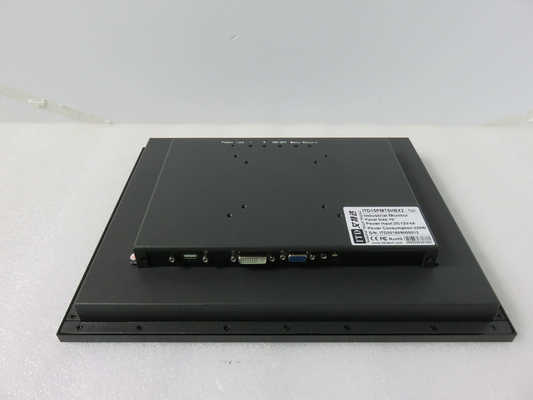

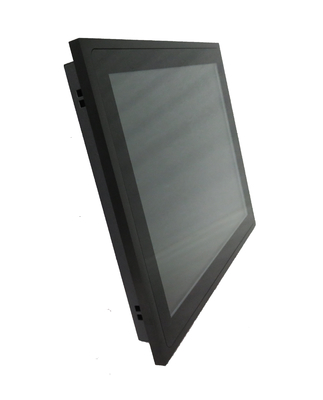

industrial lcd screen touch monitor 17 inch DC9-36V input for automation
ITD 17” industrial lcd screen touch monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES
• High contrast color TFT LCD display supports resolution up to 1280 x 1024
• Supports DDC 1/2B for Plug & Play compatibility
• Advanced OSD control for picture quality adjustment
• Robust design with aluminum NEMA 4/ IP65 front panel
• All steel construction designed for harsh and industrial environments
• CE, FCC, RoHS Compliance
OPTIONALS
• Anti-Glare / Anti-Reflective tempered glass
• Touch sensor technologies: resistive,IR,PCAP
• Sunlight readable, light sensor
• AV, DVI,HMDI inputs
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 17” 4:3 | |
| Active Area/Pixel Pitch | 337.920(H) x 270.336(V)/0.264mm | |
| Native Resolution/Colors | 1280 x 1024 /16.7M | |
| Brightness/Contrast | 250nits/1000:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 85/80/80/80 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input Signals | VGA, DVI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | DC9-36V input | |
| Power Consumption | Operation/Power Saving | Bellow 20W |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 17”Panel Mount Monitor with resistive touch/ITD17PMT101 | |
| 17”Panel Mount Monitor with IR touch/ITD17PMT201 | ||
| 17”Panel Mount Monitor with SAW touch/ITD17PMT301 | ||
| 17”Panel Mount Monitor with PCT touch/ITD17PMT501 | ||
