Industrial Lcd Screen Touch Display 19 Inch With OSD Menu On Front Bezel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis And Aluminum Front Bezel With OSD Menu | Brightness | 250nits, 350nnits, 1000nits, 1500nits Optional |
|---|---|---|---|
| I/O | VGA, DVI, HDMI Inputs, USB Port, DC 9-36V Input | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Capacitive Touch Screen Or Resistive Touch |
| 24/7/365 Use | Supported | Resolution | 1280*1024 |
| Warranty | 2 Years | Item | 19 Inch Industrial Touch Screen |
| High Light | 1280x1024 Panel Mount Lcd Monitor,RoHS Industrial Lcd Touch Screen Monitor,1000nits 19 Inch Lcd Industrial Monitor |
||
Product Description

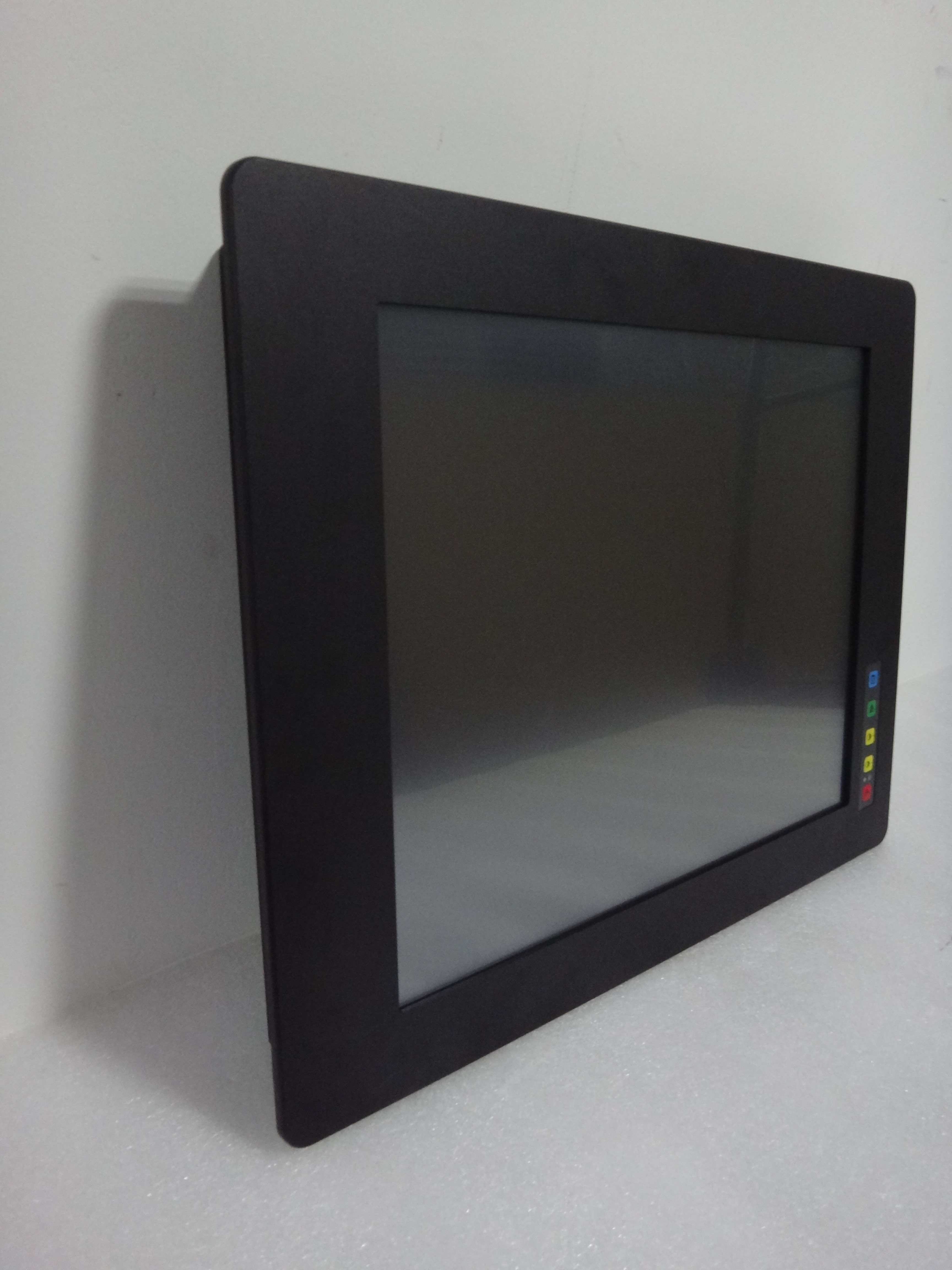

industrial lcd screen touch display 19 inch with OSD menu on front bezel
ITD 19” industrial lcd screen panel-mount LCD monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES of industrial lcd screen
•High contrast color TFT LCD display supports resolution up to 1280 x 1024
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•CE, FCC, RoHS Compliance
APPLICATIONS of industrial lcd screen
•Kiosks
•Industrial Automation/Factory Automation/Building Automation/Banking Automation
•Robots
•Delivery Cabinets
•IoT
BASIC PARAMETERS of industrial lcd screen
| LCD Panel | Model Name | ITD19PMT*** |
| Display Size | 19” | |
| Panel Type | a-Si TFT active matrix | |
| Pixel Format | 1280 x 1024 | |
| Active Area | 376.32(H) x 301.06(V) | |
| Pixel Pitch | 2.294(H) x 2.294(H)mm | |
| Colors | 262K/16.7M | |
| Brightness | 250 (cd/㎡) (Typ.) | |
| Contrast | 1000:1 (Typ.) | |
| Response Time | 8ms(TYP.) | |
| Viewing Angles | 170(H)/160(V) | |
| YPbPr(option) |
480i,480p,576i,576p 720p,1080i,1080p |
|
| PC-RGB |
VGA:640x480/720x400 SVGA:800x600 XGA:1024x768 SXGA:1280x1024/1400x1050 UXGA:1680x1200/1680x1050 WXGA:1366x768 WUXGA:1920x1080/1920x1200 |
|
| DVI | DVI-I | |
| HDMI(A type) |
480i,480p,576i,576p 720p,1080i,1080p |
|
| Audio Input Signals | PC Audio | Earphone Input 0.2~2.0VRMS |
| Audio Output Signals | Frequency Response | 100Hz~15KHz @±3dB (1KHz, 0dB reference signal) |
| Max Output Power |
2 x W(8Ω) THD+N<10%@1KHz (Power Supply: 12V, Audio Input: 0.5VRMS) |
|
| Touch Screen | Types | Resistive Touch, IR touch, PCAP touch, SAW Touch optional |
| Connector | USB or RS232 | |
| Operating System Support | Windows XP/7/8/10, Linux, Android, Mac, Raspberry Pi | |
| Temperature | Operating Temperature | -10～+60℃(-20～+70℃ optional) |
| Storage Temperature | -20～+70℃ | |
| Humidity | Relatively Humidity | 10～90%RH |
| Power Supply | Power Supply | 12V DC In |
| Power Consumption | ＜25 W |
