19 Inch Industrial Touch Screen Monitor IP65 Front Embedded Mounting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis With Anti-rust, Brushed Aluminum Front Bezel IP65 Front Embedded Mounting | Brightness | 350cd/㎡, 1500cd/㎡ Optional, Brigtness Control On Front Bezel |
|---|---|---|---|
| I/O | VGA, HDMI Inputs, USB Port, DC Input | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Capacitive Touch Screen |
| 24/7/365 Use | Supported | Resolution | 1280 X 1024 |
| Warranty | 2 Years | Keywords | 19 Inch Industrial Touch Screen Monitor |
| High Light | 19 Inch Industrial Lcd Monitor 250nits,FCC Compliance Industrial Touch Screen Monitor,Industrial Touch Screen Monitor IP65 |
||
Product Description

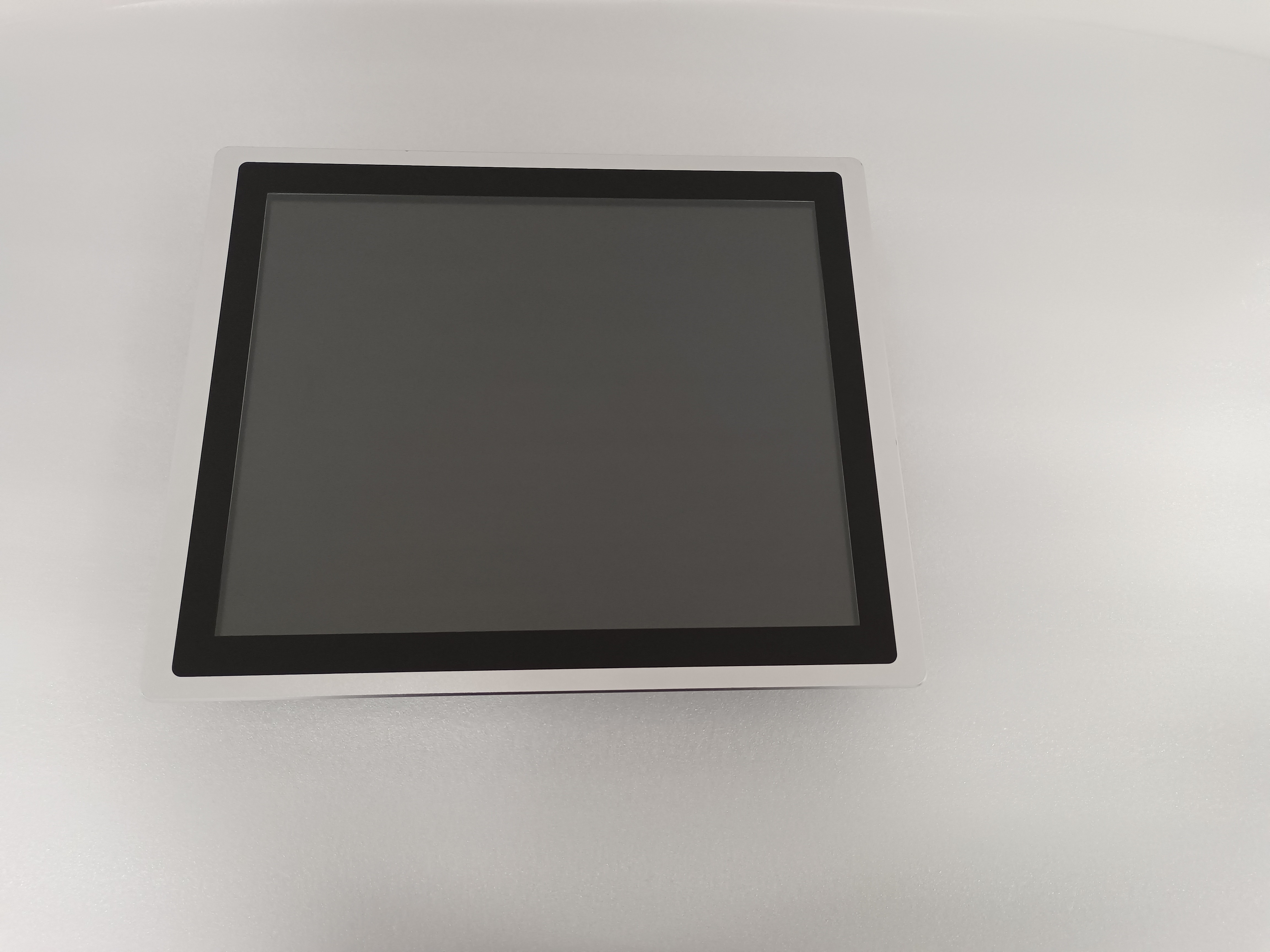

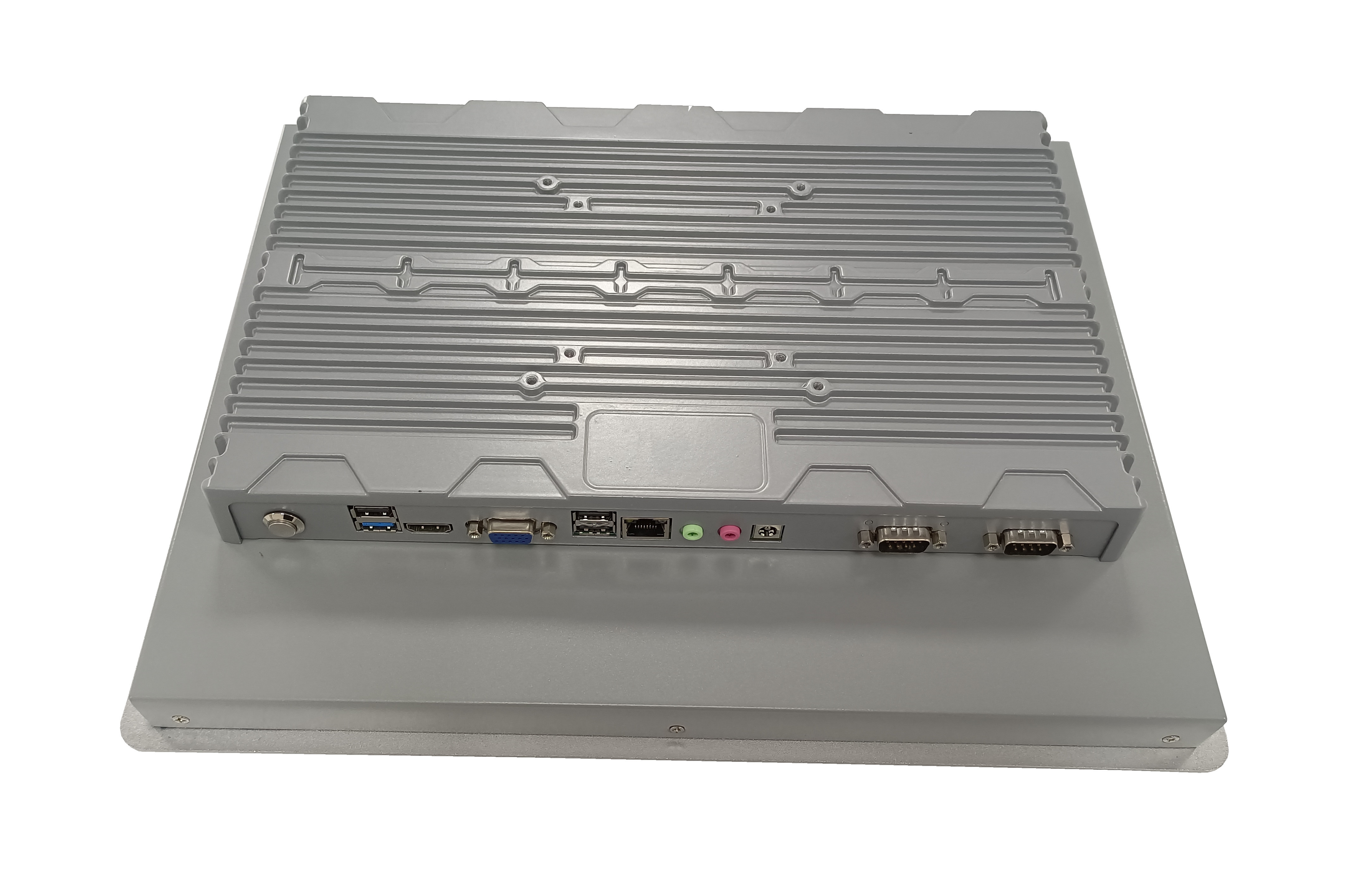

19 inch industrial touch screen monitor IP65 front embedded mounting
ITD 19” ITD19PPCT5Xxx-VT industrial touch screen monitor panel-mount LCD monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES of 19 inch industrial touch screen monitor
•High contrast color TFT LCD display supports resolution up to 1280 x 1024
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•CE, FCC, RoHS Compliance
OPTIONALS of 19 inch industrial touch screen monitor
•AR, AG glass
•High brightness, optical bonding
•DC 9-36V input
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 19” 4:3 | |
| Active Area/Pixel Pitch | 376.32(H) x 301.06(V)/0.294mm | |
| Native Resolution/Colors | 1280 x 1024 /16.7M | |
| Brightness/Contrast | 250nits/1000:1 | |
| Response Time | 8ms | |
| Viewing Angle(Typical) | 85/85/80/80 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input Signals | VGA/DVI/HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Bellow 26W |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 19”Panel Mount Monitor with PCAP touch/ITD19PPCT5X01-VT | |
| 19”Panel Mount Monitor with Tempered glass/ITD19PPCG1X01-VT | ||
