24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen

  • 24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen
  • 24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen
  • 24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD24CMT501
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis With Anti-rust, VESA Mounting Brightness 300cd/㎡
I/O VGA, HDMI Inputs, USB Port, DC Input MTBF 50000Hours
Operating Temperature -10~60℃ Touch Screen Capacitive Multi Touch Screen
24/7/365 Use Supported Resolution 1920 X 1080
Warranty 2 Years Keywords 24 Inch Lcd Monitor
High Light

1920x1080 Industrial Chassis LCD Monitor

,

RoHS Certified 24 Inch Lcd Monitor

,

Chassis LCD Monitor 300cd/2
Leave a Message
Product Description

24 inch lcd monitor industrial grade capacitive multi touch screen



BASIC PARAMETERS  of 24 inch lcd monitor

2. 1 General

Article 24” Industrial Chassis LCD Monitor
IP IP65(for front panel only) optional
Weight(N.W/G.W) 6.23Kg / 8.11Kg (Approx.)
LCD Type 23.8＂Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input, AC100-240V input optional
Power Consumption 40W
Mount Interface VESA 75×75/100×100mm
Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC,CE,RoHS Certified
Optional AR/AG Tempered glass; High brightness, sunlight readable; AV, S-Video inputs, RS232 remote control; Custom-design
Order Information 24”chassis monitor no touch/ITD24CMN101
24”chassis monitor with IR touch/ITD24CMT201
24”chassis monitor with SAW touch/ITD24CMT301
24”chassis monitor with PCT touch/ITD24CMT501
24”chassis monitor with tempered glass/ITD24CMG101

2. 2 LCD Specification

Active Area(mm) 527.04(H) x296.46(V)
Resolution 1920×1080
Pixel Pitch(mm) 0.2745×0.2745
Nominal Input Voltage VDD +5V(Typ)
Viewing angle (L/R/T/B) 89°/89°/89°/89°
Contrast 1000:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 14ms
Support Color 16.7M
Screen Scanning 60Hz
Backlight MTBF(hr.) 50000h

2.3 Touch Screen Specification(optional)

Type Projected Capacitive Touch Screen
Surface Hardness 7H
Light Transmission 85%±5%
Touch Life Cycle 50 million times
Touch Response time 5ms
Touch System Interface USB A type (USB B type optional)
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Mac, Android

2.4 External AC Power Adapter

Output 12V DC/5A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10～60°C
Storage Temp. -20～70°C
Operating RH: 20%～80%
Storage RH: 10%～90%
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis (optional)
Anti-Shock 15G, 15ms Duration (optional)



Pictures of 24 inch lcd monitor

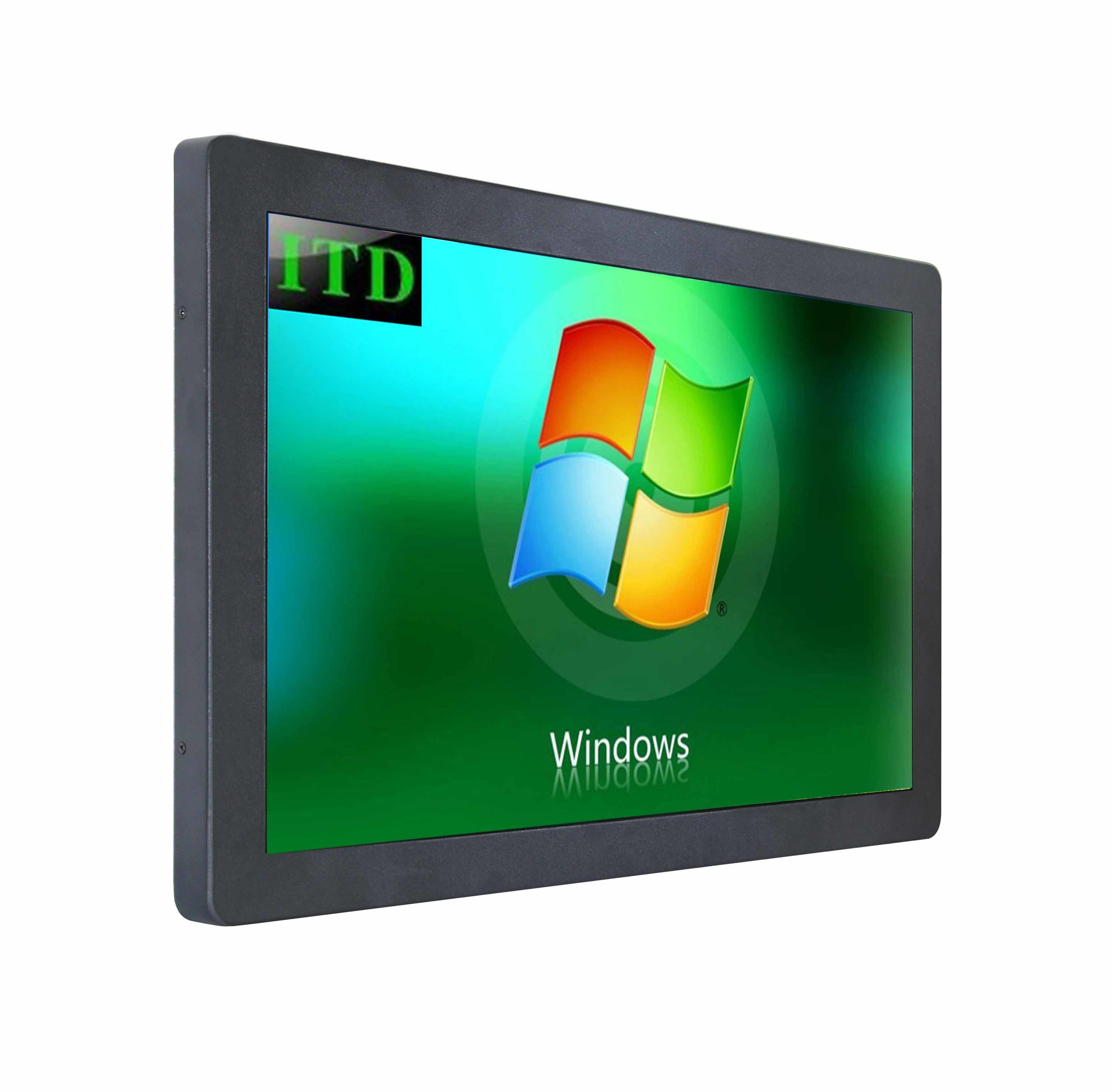

24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen 0

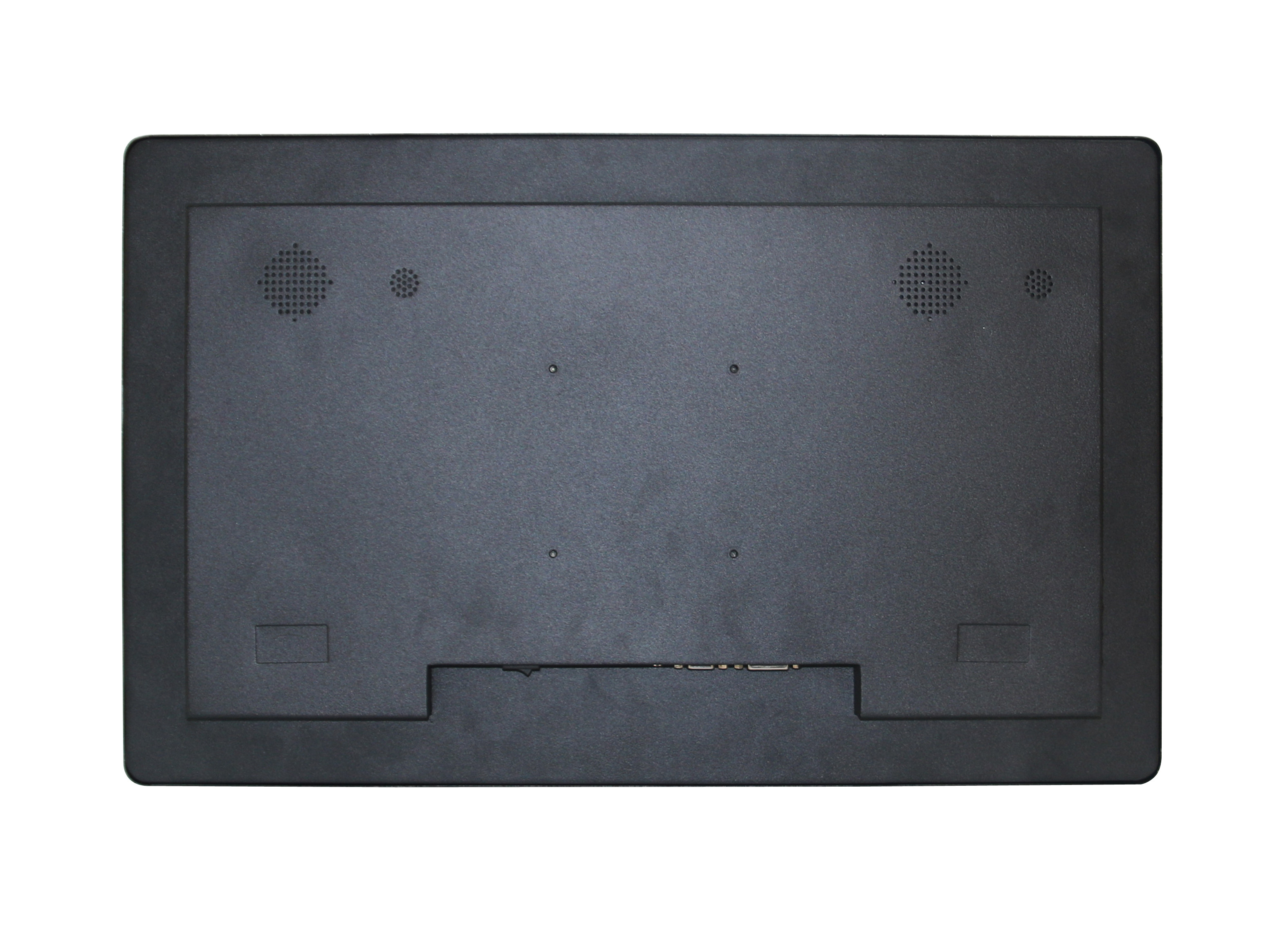

24 Inch Lcd Monitor Industrial Grade Capacitive Multi Touch Screen 1
