RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated

  • RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated
  • RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated
  • RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5KE1-RFID/NFC
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1920 X 1200, 1280 X 800 Optional Applications Access Control
I/O HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional Touch Panel Projected Capacitive 10 Points
Mounting Method VESA, 75x75 Power Input DC 12V
Operating Temperature -10~60℃ Peripherals RFID Or NFC Reader Integrated, Webcamera, MIC, Speakers
Material Steel Housing, Aluminum Frame Warranty 2 Years
MTBF 50000hours POE Optional
High Light

RK3368 10 inch panel pc

,

RFID 10 inch panel pc

,

RFID Android industrial tablet
Leave a Message
Product Description

10 inch panel pc Android industrial tablet with RFID for access control



ITD 10.1" panel pc Android industrial tablet with RFID is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Quad-Core Cortex-A53 Processor RK3368 1.5GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 10.1” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.



FEATURES of 10 inch panel pc

▪ Easy-to-clean, true flat front surface without bezel

▪ Card Reader like NFC, RFID, etc integrated

▪ Ten independent touch points with anti-vandalism & scratch

▪ Responds to a light touch to activate response

▪ Eliminates dust and debris build-up at the edge and corners of the display

▪ Provides improved power efficiency and reduced consumption

▪ Ruggedized levels of NEMA 4, IP65 ratings for front panel

▪All steel and aluminum frame construction designed for public and industrial environments

▪ CE, FCC, RoHS Compliance

OPTIONALS of 10 inch panel pc

•WIFI, Bluetooth

•Camera, Microphone built-in

•VESA brackets, desktop stand



PARAMETERS of 10 inch panel pc

Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.81(W) × 135.50(H)mm
Pixel Pitch 0.113 × 0.113mm
Native Resolution 1920 x 1200
Colors 16.7M
Brightness 300cd/㎡
Contrast 800:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED Backlight with 30000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz;

GPU: PowerVR G6110 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 8.0

Bluetooth: Optional

Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG

4 × COM; 1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Operating Humidity 10%~90% (Non Condensing)
Order Information 10.1” PCAP Touch Android PC with NFC Reader/ITD101PPCT5KE1-NFC
10.1” PCAP Touch Android PC with RFID Reader/ITD101PPCT5KE1-RFID
10.1” Non Touch Android PC with NFC Reader/ITD101PPCG1KE1-NFC
10.1” Non Touch Android PC with RFID Reader/ITD101PPCG1KE1-RFID

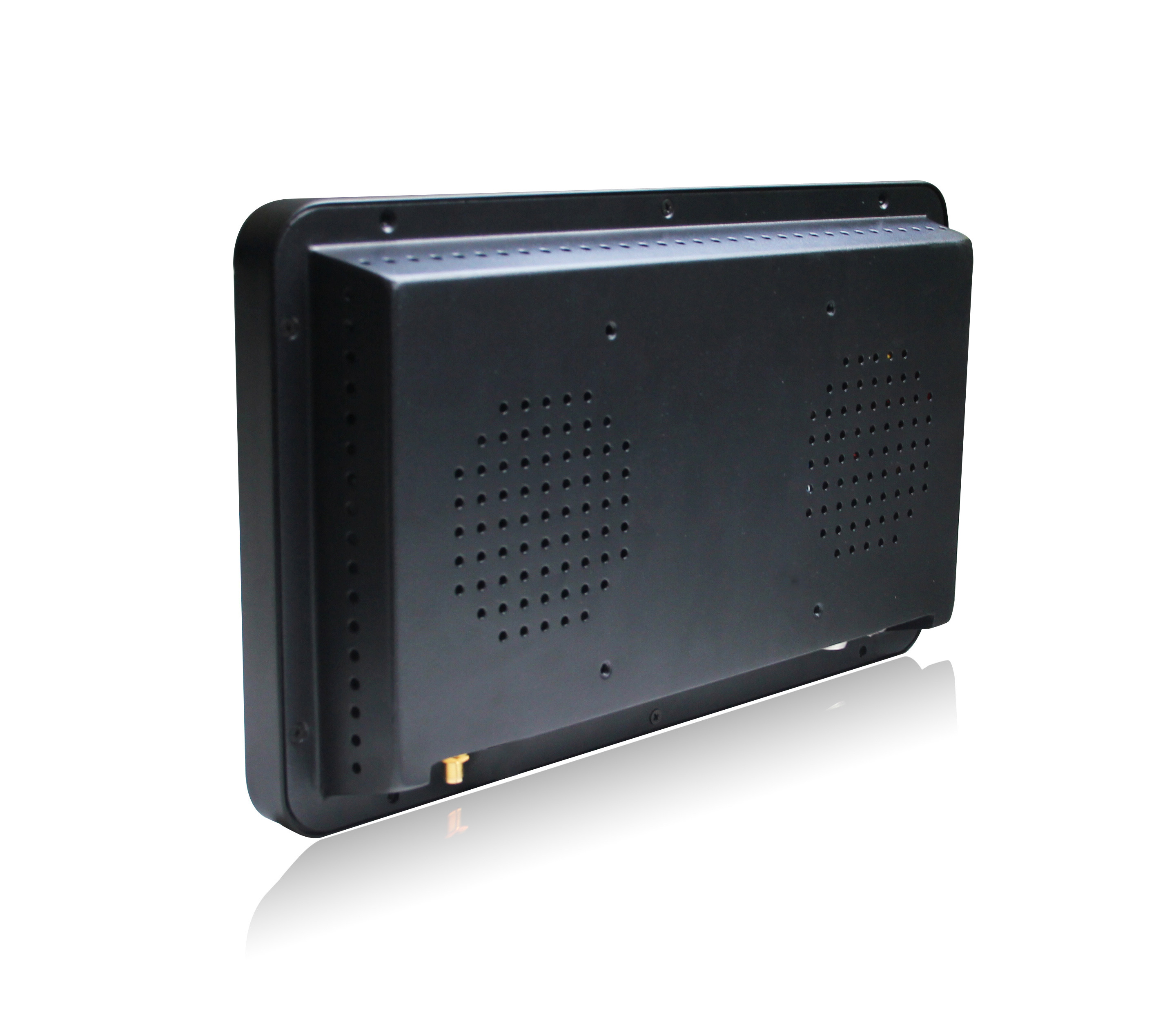

RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated 0

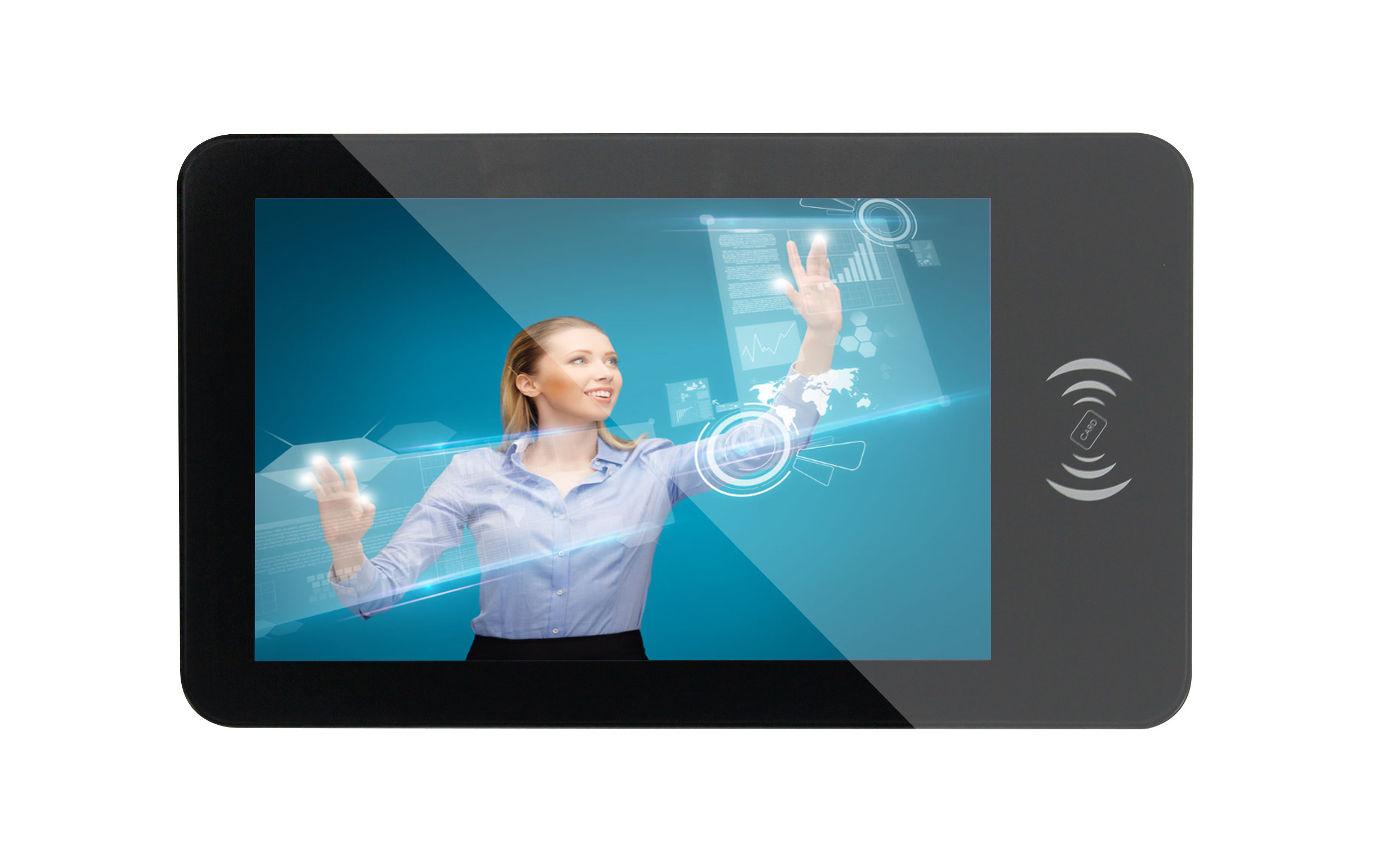

RK3368 10 Inch Panel PC Android Industrial Tablet With RFID Fully Integrated 1
