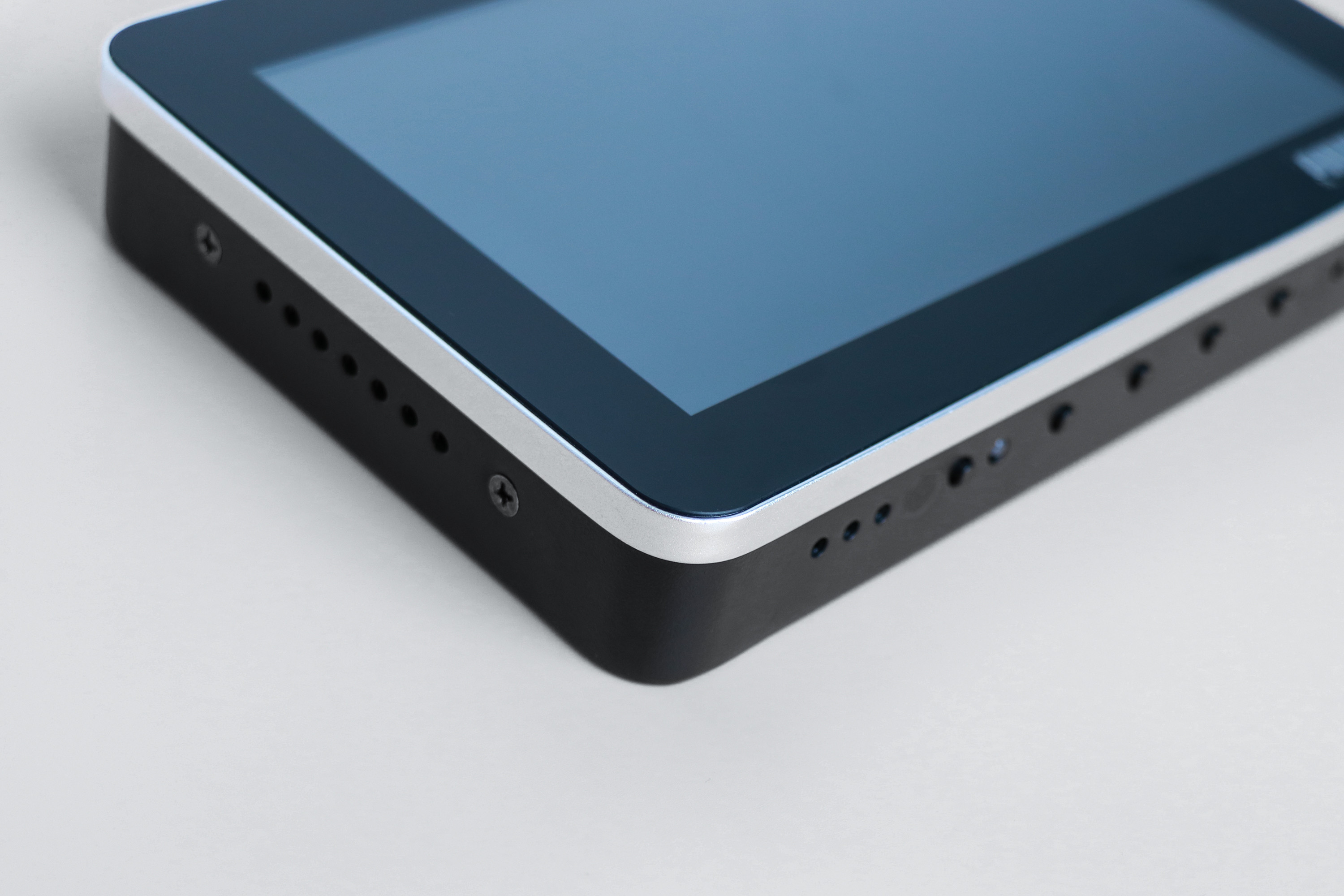

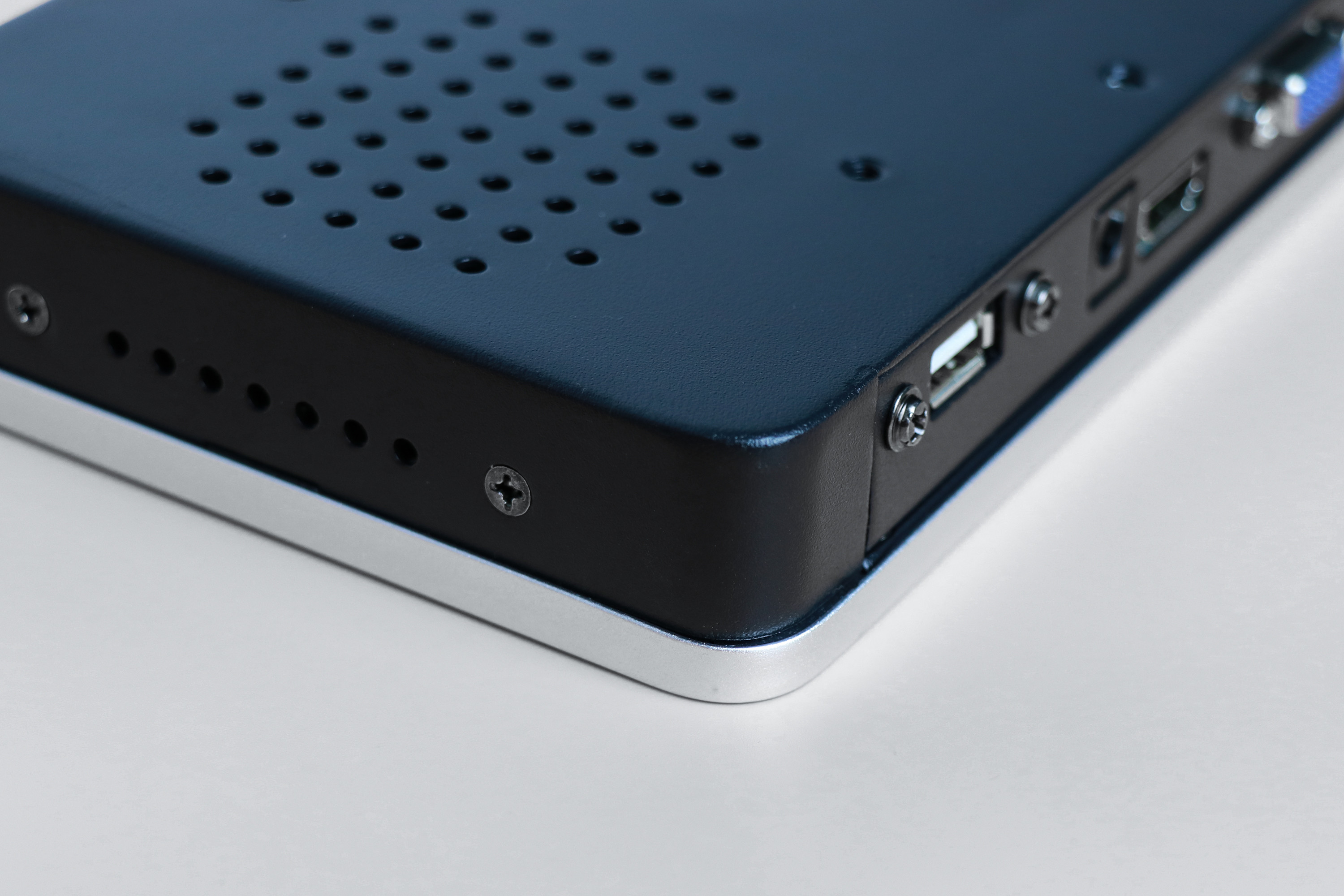

Aluminum Frame Android Industrial Panel PC 7 Inch Capacitive Touch Screen PoE Optional
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD07PPCT5KE1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution/Brightness | 1024 X 600, 500nits | Applications | Digital Signage, Automation, Security, Robots |
|---|---|---|---|
| I/O | HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional | Touch Panel | Projected Capacitive Touch Screen 10 Points |
| Mounting Method | VESA, 75x75 | Power Input | DC 12V |
| Operating Temperature | -10~60℃ | OS | Android 8/9/10/11 |
| Material | Steel Housing, Aluminum Frame | Warranty | 2 Years |
| MTBF | 50000hours | POE | Optional |
| High Light | Capacitive Touch android industrial panel pc,Aluminum Frame android industrial panel pc,PoE Optional android industrial panel pc |
||
Product Description
android industrial panel pc 7 inch capacitive touch screen PoE optional
FEATURES of android industrial panel pc
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Easy-to-install console and Open Frame chassis-mount display
▪ Multiple mounting options (100mm VESA mount and side brackets)
▪ Aluminum frame and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS of android industrial panel pc
•3G, 4G built-in
•Desktop stand
•High brightness, sunlight readable, optical bonding
•Non touch with tempered glass
•Web camera, speakers
PARAMETERS of android industrial panel pc
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 7”/16:9 | |
| Active Area/ Pixel Pitch | 155.5(W) x 87.5(H)mm/0.150 × 0.150mm | |
| Native Resolution/ Colors | 1024 x 600/16.7M | |
| Brightness/ Contrast | 500cd/㎡/800:1 | |
| Response Time | 10/15ms | |
| Viewing Angle (Typical) | 85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G Optional OS: Android 7.1/8 newer version; Linux Bluetooth: optional WIFI: included 802.11a/b/g/n Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output |
1 × HDMI; 2 × USB Max. 6× USB 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0 Com Port optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% |
| Order Information | 7” Zero-Bezel Android Panel PC with Tempered Glass/ITD07PPCG1KE1 |
