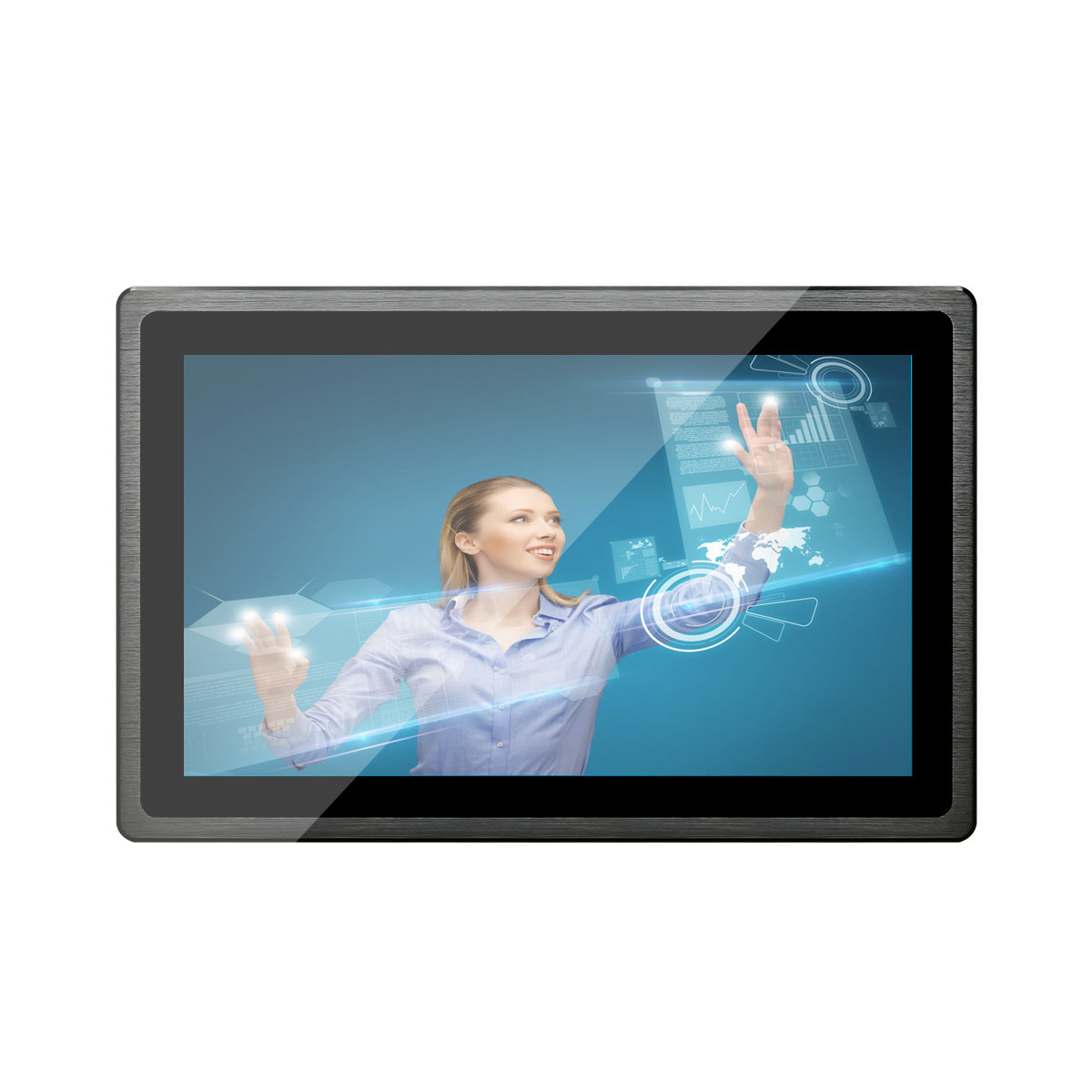

21 Inch Industrial Panel Mount PC 1000cd/M2 ARM Based Linux Touch Computer
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD21PPCT5HBXE2 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution/Brightness | 1920 X 1080, 1000cd/㎡, 1500cd/㎡ Optional | Applications | Automation, Food&beveragy Industry, Smart City, EV Chargers |
|---|---|---|---|
| I/O | HDMI Input, USB Ports, TF Card Slot, RJ45,COM Optional | Touch Panel | Projected Capacitive Touch Screen 10 Points |

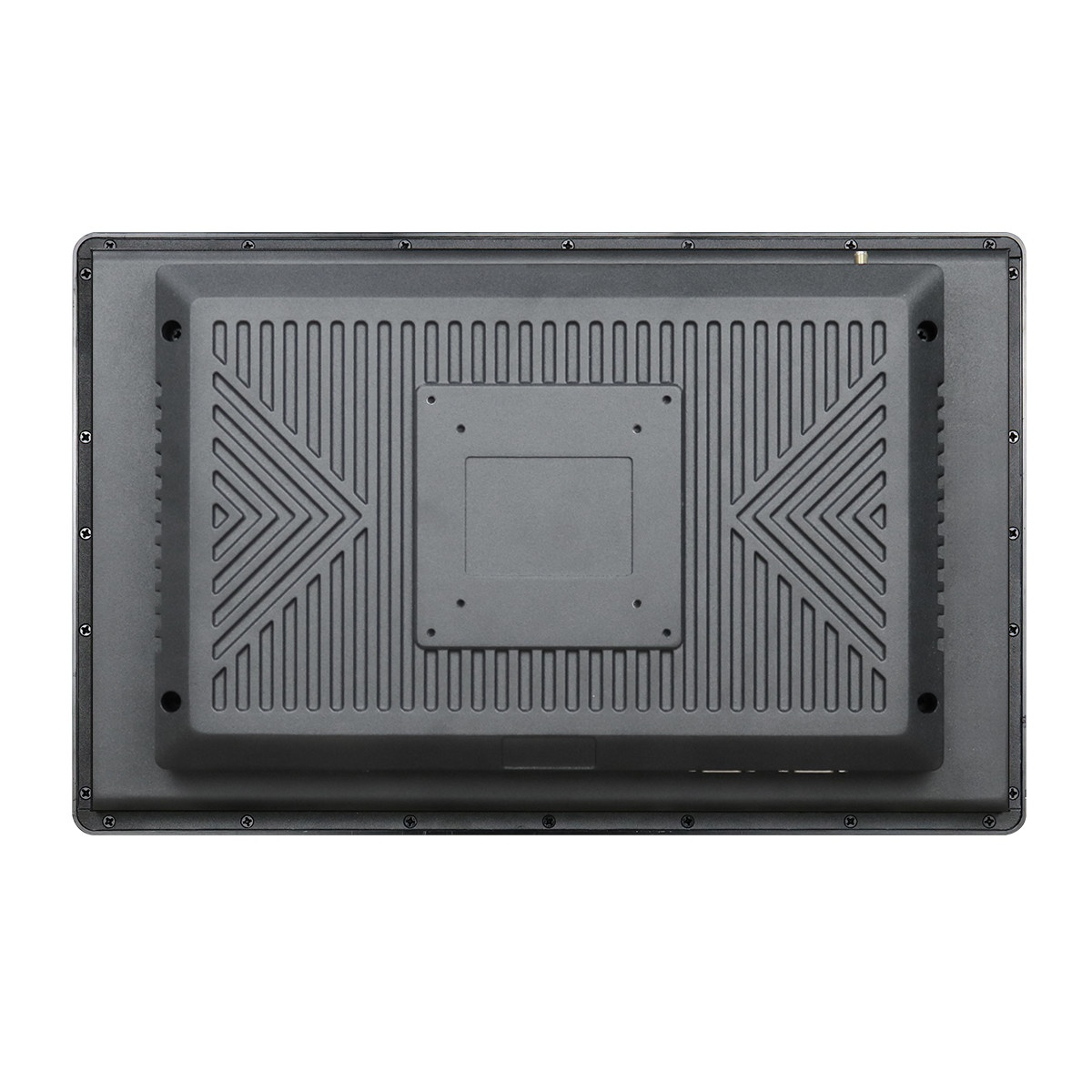

| Mounting Method | Panel Mount, VESA, 75x75, 100x100 | IP Level | IP65 Front |
| Operating Temperature | -10~60℃ | OS | Android, Linux |
| Configurations | RK3288, Quad Core, 2G RAM, 16G ROM | Warranty | 2 Years |
| MTBF | 50000hours | Color | Black, Silver |
| Product Name | Industrial Panel Mount Pc 21 Inch 1000cd/㎡ ARM Based Linux Touch Computer | ||
| High Light | 21 Inch Industrial Panel Mount PC,1000cd/M2 industrial panel mount pc,Linux Industrial Panel Mount PC |
||
Product Description
industrial panel mount pc 21 inch 1000cd/㎡ ARM based linux touch computer
FEATURES of industrial panel mount pc
• Easy-to-clean, true flat front surface without bezel
• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
• ARM based RK3288, Android, Linux OS Supported
• Eliminates dust and debris build-up at the edge and corners of the display
• Provides improved power efficiency and reduced consumption
• Responds to a light touch to activate response
• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
• Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
• CE, FCC, RoHS Compliance
OPTIONALS of industrial panel mount pc
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding |
| • Resistive touch screen, tempered glass | • WIFI, 3G, 4G |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc. |
SPECIFICATON of industrial panel mount pc
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5”/16:9 | |
| Active Area/ Pixel Pitch | 476.64(H) x268.11(V)mm/0.24825× 0.24825mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 1000cd/㎡(1500cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage |
8GB: 16GB/32GB/64GB Optional
|
1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662 Line-Out /MIC IN |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 40~65W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD21PPCT5HBXE2 | |
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD21PPCT1HBXE2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD21PPCG1HBXE2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD21PPCT5HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD21PPCT1HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD21PPCG1HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD21PPCT5HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD21PPCT1HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD21PPCG1HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD21PPCT5HBXI5 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD21PPCT1HBXI5 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD21PPCG1HBXI5 | ||
