RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth

  • RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth
  • RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth
  • RK3399 Open Frame Panel PC Android 11 With GPS 4G Module Bluetooth
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD13PPCT5FE2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution/Brightness 1920 X 1080 350cd/㎡ Applications Automation, Food&beveragy Industry, Smart City, EV Chargers
I/O HDMI Input, USB Ports, TF Card Slot, RJ45,COM Optional Touch Panel Projected Capacitive Touch Screen 10 Points
Communication WIFI, Bluetooth, GPS, 4G IP Level IP65 Front
Operating Temperature -10~60℃ OS Android 11, Linux
Configurations RK3399, 4G RAM, 32G ROM Warranty 2 Years
MTBF 50000hours Product Name Open Frame Panel Pc RK3399 Android 11 With GPS 4G Module Bluetooth
High Light

RK3399 Open Frame Panel PC

,

GPS 4G open frame panel pc
Leave a Message
Product Description

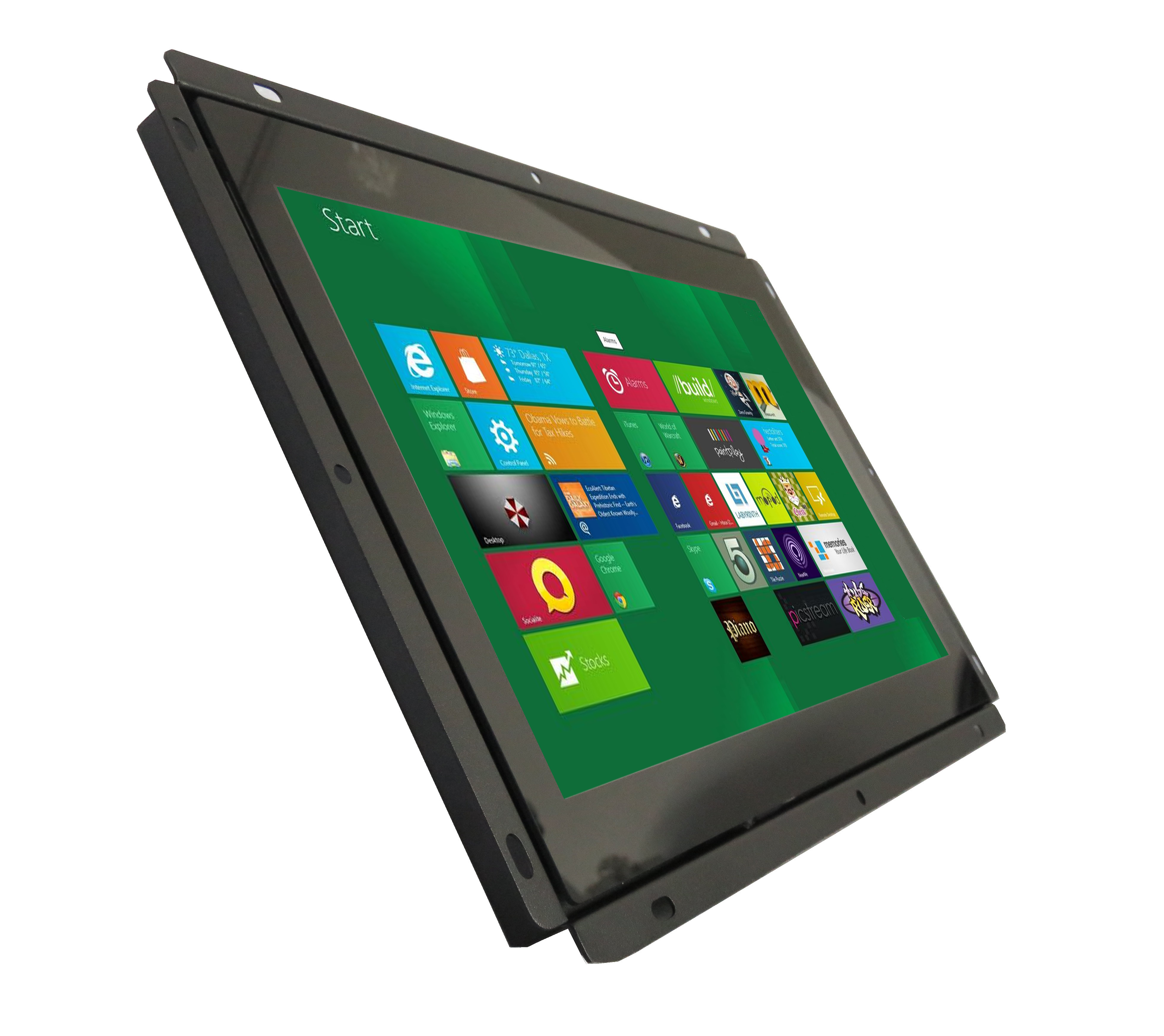

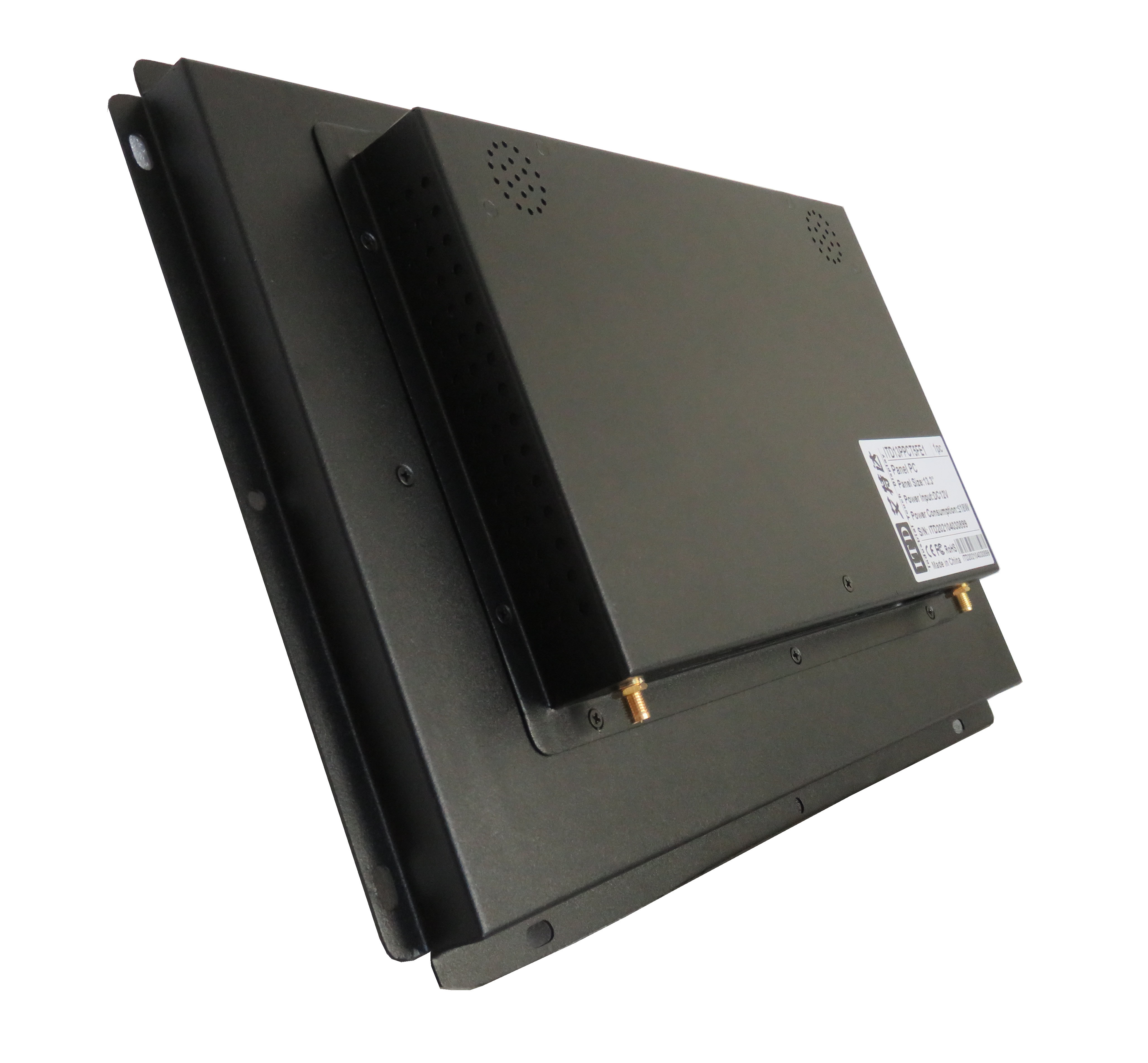

open frame panel pc RK3399 Android 11 with GPS 4G module Bluetooth



ITD HMI comfort open frame panel PC is fully-integrated‚ combines high-performance ARM based RK3399 system, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.



FEATURES of open frame panel pc

•RK3399, 4G RAM, 32G ROM, Android 11

•Equipped with GPS, 4G Module, Bluetooth, WIFI.

•Long lasting product cycle for continuity thru allphases of project rollouts and servicing

•Steel construction for harsh and industrialenvironments

•Easy to install Open Frame chassis mount display

•Multiple mounting options: 75 x 75 mm VESA mount and side brackets

• Provides improved power efficiency and reduced consumption

• CE, FCC, RoHS Compliance

OPTIONALS of open frame panel pc

• DC 24V, DC9-36V, AC100-240V • Optical bonding
• Resistive touch screen, PCAP touch, IR touch, SAW touch, AR/AG tempered glass • WIFI, 3G, 4G, Bluetooth

DISPLAY of open frame panel pc

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 13.3”/16:9
Active Area/ Pixel Pitch 293.76(W) x 165.24(H)mm/0.153× 0.153mm
Native Resolution/ Colors 1920 x 1080/16.7M
Brightness/ Contrast 1000cd/㎡/900:1
Response Time/ Viewing Angle (Typical) 30ms/85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

WIFI, Bluetooth, GPS included

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 11 Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 25~45W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃optional)
Storage Temperature -20~70℃
Relative Humidity 20%~80%
