12.1 Inch Industrial HMI Touch Panel PC Capacitive Resistive Touchscreen All In One
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD12PPCTxB-J1900/ITD12PPCTxB-I5-4200U/ITD10PPCTxB-I7-4500U |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 7-12 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Onboard Intel J1900/4th Iintel Core I3/i5/i7 | System Memory | Onboard DDR3L 4GB Memory / Optional SODIMM SKU |
|---|---|---|---|
| Ethernet | 2x GbE RJ45 Intel I211 | DC Inut | DC 9 ~ 36V With 3-pin Terminal Block |
| Luminance | 350cd/m2 1000cd/m2 Optional | Touch Screen | 5 Wire Resistive, Pcap Touch Optional |
| High Light | 12.1 Inch HMI Touch Panel PC,Industrial HMI Touch Panel PC |
||
Product Description
12.1 inch Industrial HMI Touch Panel PC capacitive resistive touchscreen all in one
BENEFITES of 12.1" industrial HMI
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
Specs OF HMI touch panel PC:
| Industrial HMI Touch Panel PC |
||||||||||
| Model Name | ITD12PPCT5B-xxxx | |||||||||
| IP Rating | IP65 Front Panel | |||||||||
PC Systems Options |
||||||||||
| X86 Windows Based CPU: Intel? Celeron J1900 2.0GHz
|
X86 Windows Based | |||||||||
| CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU | ||||||||||
| Chipset: Intel SoC | ||||||||||
| Memory: DDR3L SODIMM SKU, Up to 8GB | ||||||||||
| Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU ) | ||||||||||
| 1 × HDMI, 2×GbE RJ45 Intel? i211 | ||||||||||
| 3 × USB2.0 , 1× USB3.0 , 1×USB2.0 dongle | ||||||||||
| 2 × DB-9 COM1&COM2,RS-232/422/485 | ||||||||||
| 2 × 3-wire COM3&COM4 RS-232/485 with terminal block | ||||||||||
| 2 × 3-wire COM5&COM6 RS-232 with terminal block | ||||||||||
| 1 × Audio Out, 1×Line Out, 2 × 8Ω 1W Audio AMPout 1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G Mini-PCIe×1 half size for WIFI/BLT |
||||||||||
LCD Panel |
||||||||||
| Screen Diagonal (Inch) | 12.1” | |||||||||
| Display Active Screen Size (cm) | 246.0(H)×184.5(V) | |||||||||
| Aspect Ratio | 4:3 | |||||||||
| Physical Resolution | 800×600 (1024×768 optional) | |||||||||
| Maximum Resolution Supported | 1920×1080 | |||||||||
| Colors | 16.7M | |||||||||
| Brightness (cd/m2) | 350 | |||||||||
| Contrast Ratio | 800:1 | |||||||||
| View Angels | 80/80/70/70 | |||||||||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'LifetimeV | |||||||||
Touch Panel |
||||||||||
| Touch Options | Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel | |||||||||
| Touch Drivers | Windows 7/8/10, Linux, Android, Mac | |||||||||
Operation |
||||||||||
| Operating Temperature Range | -20~60°C | |||||||||
| Humidity Range (RH) | 10-90% | |||||||||
| 24/7/365 Use | Supported | |||||||||
Power |
||||||||||
| Power Indicator | Green LED | |||||||||
| Power Input | DC 9-36V with 3-pin terminal block | |||||||||
| Power Consumption | 35W | |||||||||

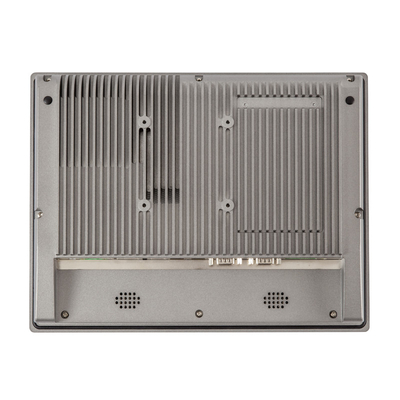

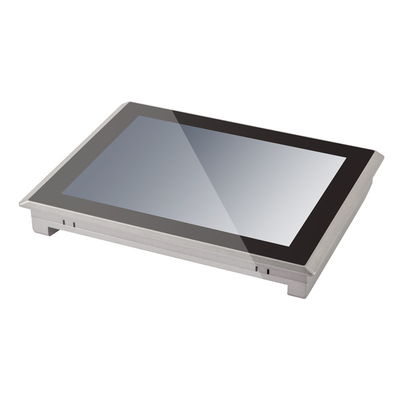

Produce image:
