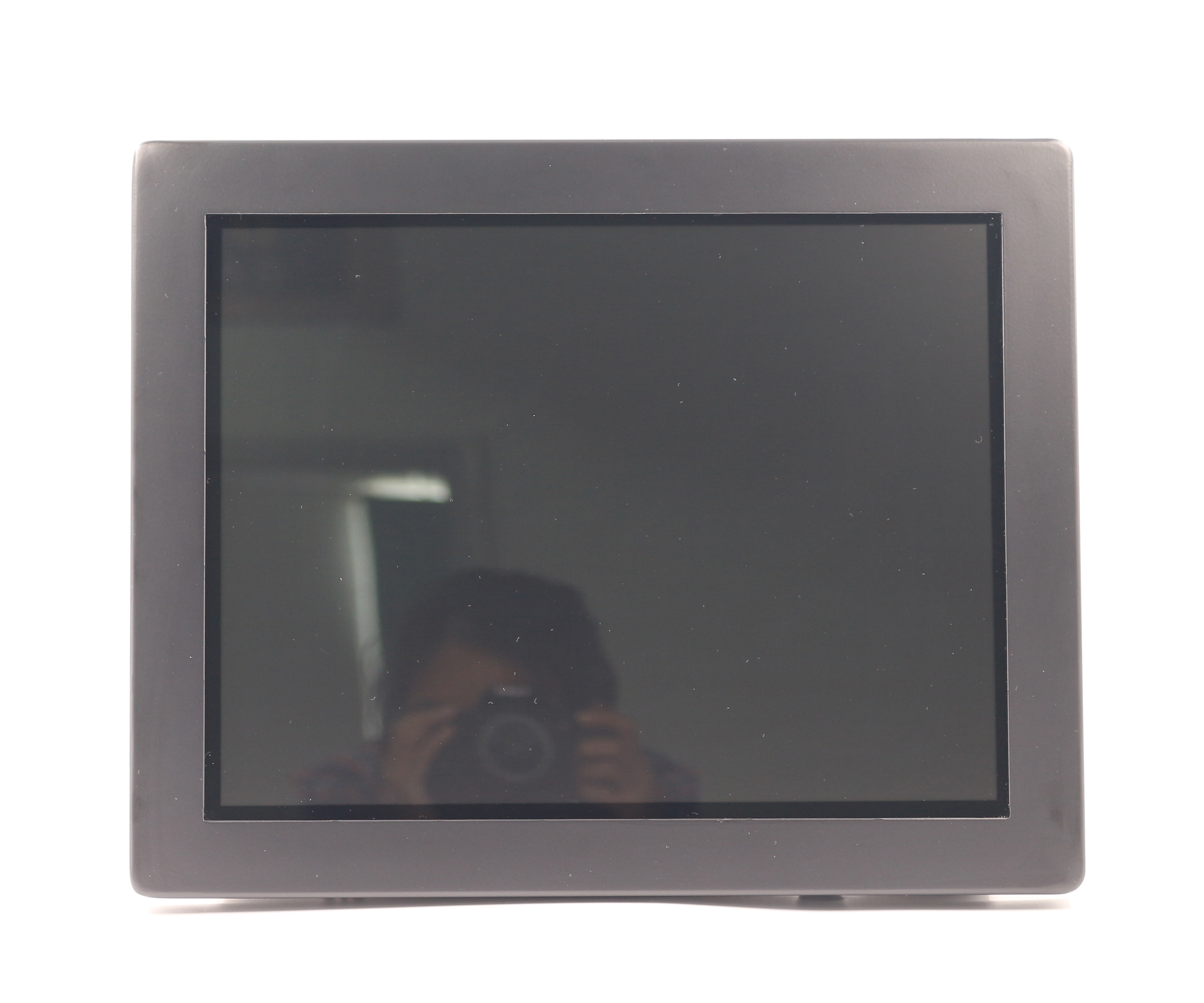

TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance

  • TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance
  • TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance
Place of Origin China
Brand Name ITD/OEM
Model Number ITD15PPCN1HBLxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 10 working days
Payment Terms L/C, T/T
Supply Ability 10000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cell Type/Glass Surface TFT Native Resolution/ Colors 1024 X 768/16.2M
Response Time 30ms Viewing Angle(Typical) 60/80
Light Source LED Backlight With 50000Hours’Lifetime Memory 2GB; 4GB Optional
High Light

TFT 65inch Touch Panel PC

,

30ms Touch Panel PC

,

TFT 65inch Touch Screen Computer
Leave a Message
Product Description

TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance



ITD 7-65inch chassis Industrial LCD touch display panel pc touch screen minitor all-in-one Mini Computer



FEATURES

• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Energy-efficient and fan-less HMI Systems
• Low cost solution with high cost-efficient
• All steel construction designed for harsh and industrial environments

• Flexible, easy configuration and integration
• CE, FCC, RoHS Compliance



OPTIONALS



• Anti-Glare / Anti-Reflective Tempered Glass • Optical Bonding
• Resistive, IR, SAW, PCAP, SLW • WIFI, 3G, 4G
• Web camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal printer, GPS etc. • DC9-36V input, AC100-240V input



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 15”/4:3
Active Area/ Pixel Pitch 304.13(W) x 228.10(H)mm/0.297 × 0.297mm
Native Resolution/ Colors 1024 x 768/16.2M
Brightness/ Contrast 1000cd/㎡(1500cd/㎡ optional)/700:1
Response Time/ Viewing Angle(Typical) 30ms/80/80/60/80
Light Source LED Backlight with 50000Hours’Lifetime



SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288(RK3399 optional) Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux



GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 25~55W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%



TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 0TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 1TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 2TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 3TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 4








TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance 5
