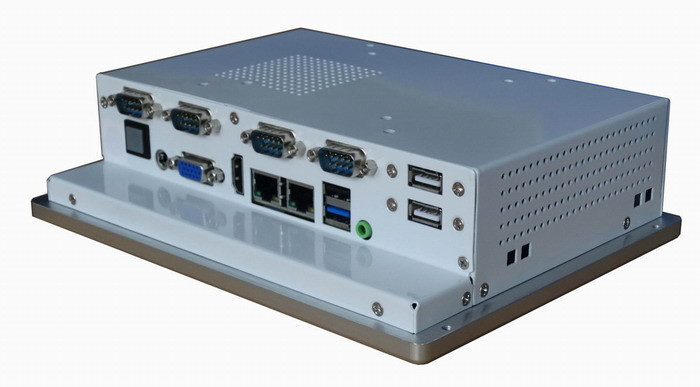

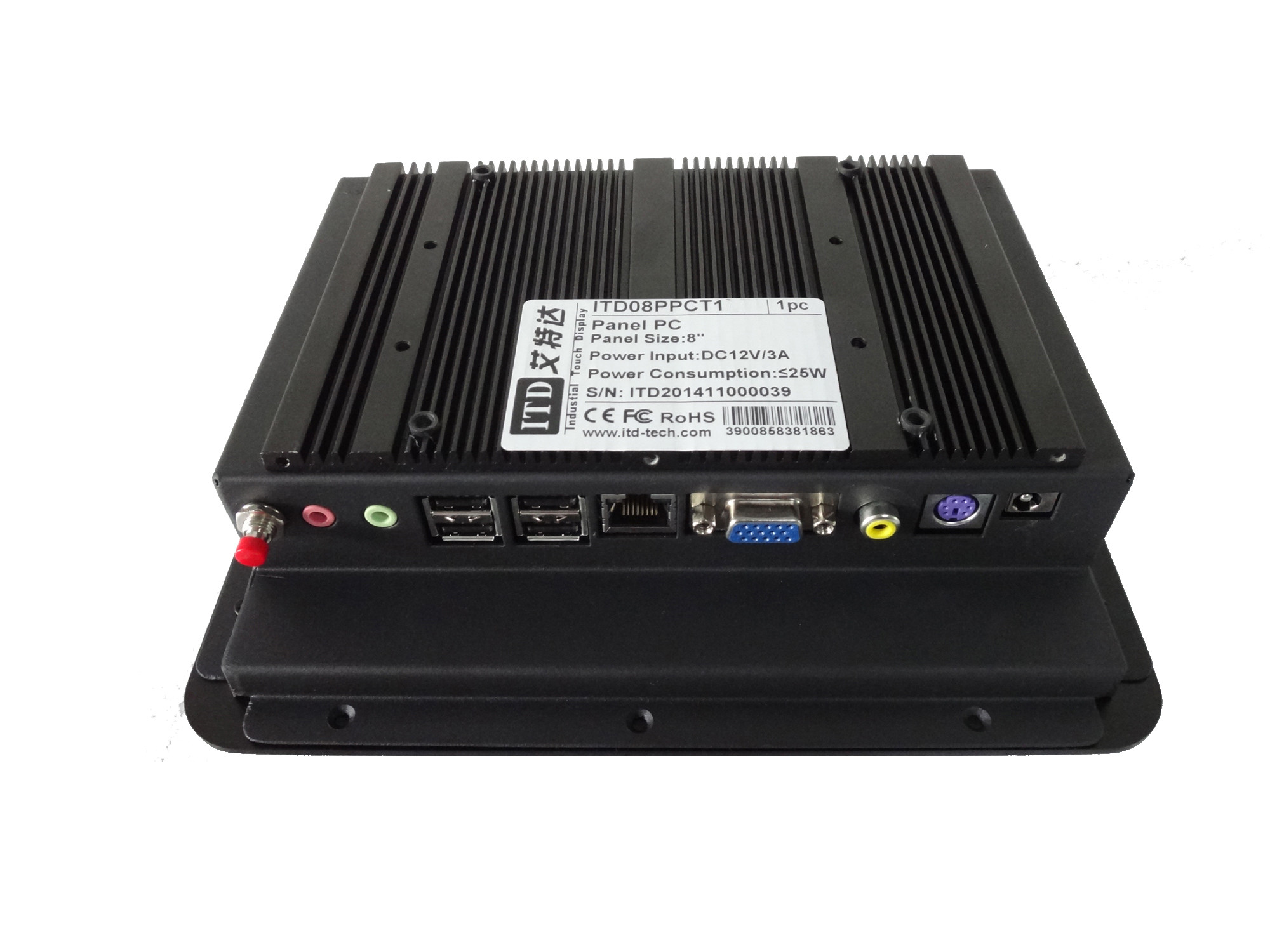

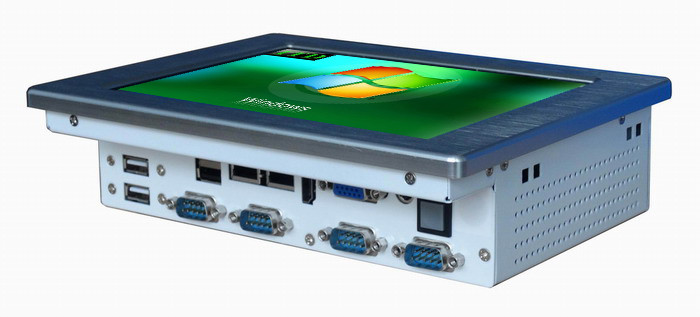

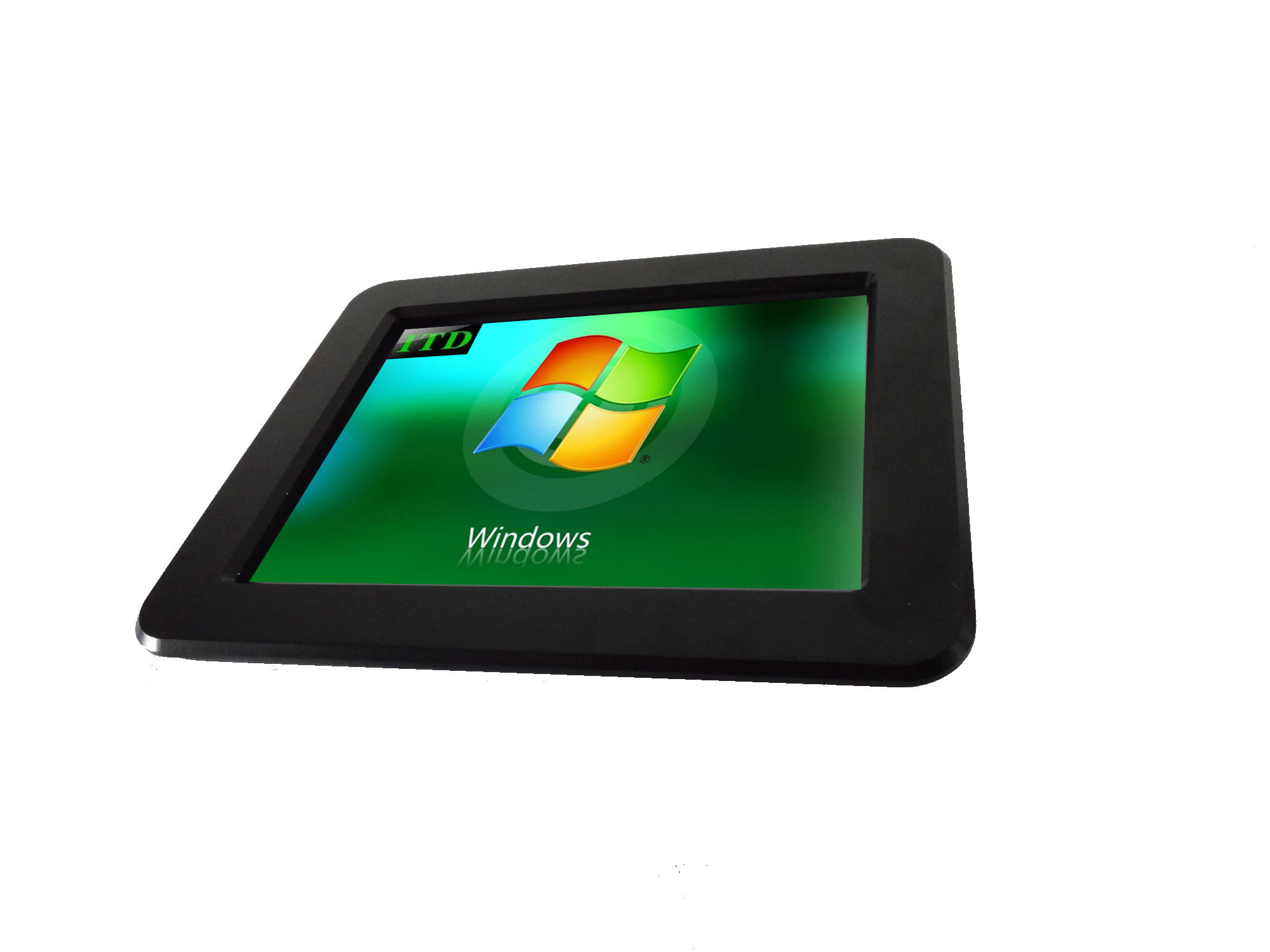

Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP

  • Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP
  • Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP
  • Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP
  • Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD08PPCT1CI3
Minimum Order Quantity 1PCS
Price TBA
Delivery Time 15~20 business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel® Core I3/i5/i7 Processor Color 16.7M
Connectivity Wi-Fi, Bluetooth Active Area/Pixel Pitch 214 (H) X 178(V))/0.264mm
Resolution 1024 X 768 Size 8-inch
Touchscreen Yes
High Light

8 Inch Touch Screen Interactive Panel

,

Steel Housing Touch Screen Interactive Panel

,

Touch Panel PCAP
Leave a Message
Product Description

Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP 0Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP 1



Product Description:

ITD 8” ITD08PPCT1CI* is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Core™ i3/i5/i7 processor, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.



Key Features:Optional:

▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

▪ Energy-efficient and fan-less HMI Systems

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ Flexible, easy configuration and integration

▪ CE, FCC, RoHS Compliance



Optional:

•Anti-Glare / Anti-Reflective tempered glass

•SDD 64GB,128GB up to 521GB

•HDD 500GB up to 1TB

•Touch optional: Resistive, IR, PCAP

•High brightness, sunlight readable

•DC24V, DC 9-36V



Specification:

System CPU Intel® Core i3/i5/i7 Processor
Memory 2GB, 4GB optional
BIOS Award BIOS 4/8Mbit SPI Flash ROM
Chipset Intel H81
Memory 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 32GB SSD or 320GB HDD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports   4 X USB
HDMI Port 1 X HDMI
VGA Port 1 x VGA
Power Port 1 x 12V DC Jack input
LPT Slot N/A
Audio Card Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
WIFI Built-in, 802.11a/b/g/h (optional)
Panel  Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 8”
Active Area/Pixel Pitch 214 (H) X 178(V)/0.264mm
Native Resolution/Colors 1024 x 768 /16.2M
Brightness/Contrast 250nits/700:1
Viewing Angle(Typical) 75/75/75/75
