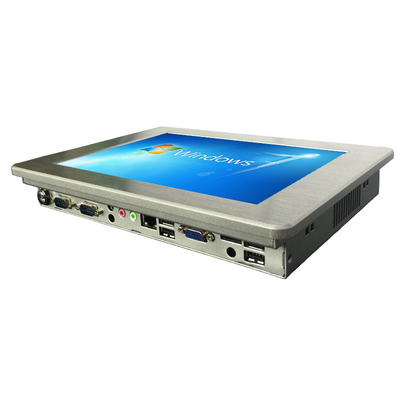

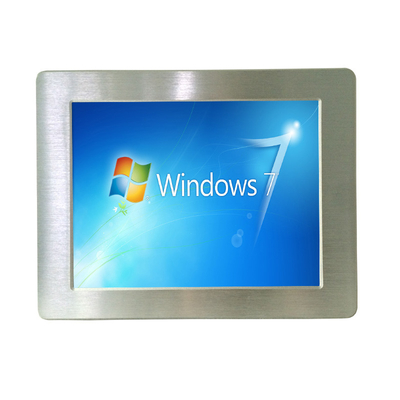

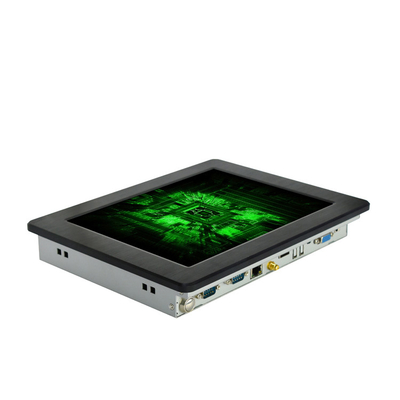

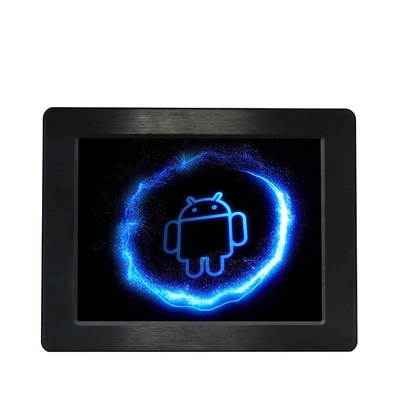

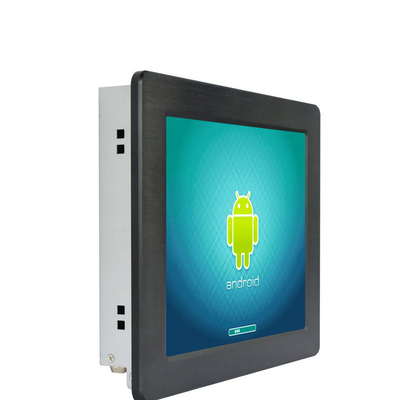

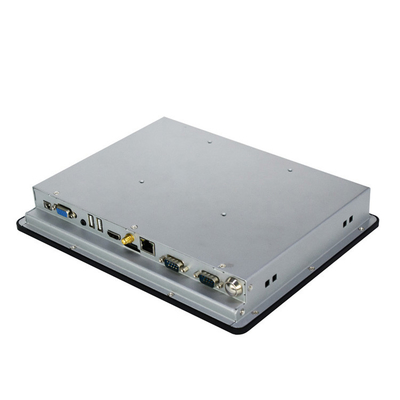

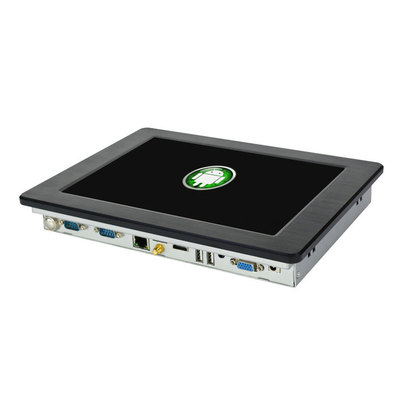

ITD 10.4 Inch Industrial Grade Touch Screen Interactive Panel LCD Aluminum Housing PCAP
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel® Celeron J1900 2.0GHz Processor | Color | 16.7M |
|---|---|---|---|
| Connectivity | Wi-Fi, Bluetooth | Active Area/Pixel Pitch | 248mm(H) X 186mm(V)/0.3075mm |
| Resolution | 800 X 600 | Size | 10.4-inch |
| Touchscreen | Yes | ||
| High Light | Interactive Touch Panel PC,10.4 Inch Touch Screen Interactive Panel,Aluminum Housing Touch Screen Interactive Panel |
||
Product Description
Product Description:
ITD 10.4” ITD10PPCT1J1 is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
Key Features:Optional:
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Energy-efficient and fan-less HMI Systems
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ Flexible, easy configuration and integration
▪ CE, FCC, RoHS Compliance
Optional:
•Anti-Glare / Anti-Reflective tempered glass
•SDD 64GB,128GB up to 521GB
•HDD 500GB up to 1TB
•Touch optional: Resistive, IR, PCAP
•High brightness, sunlight readable
•DC24V, DC 9-36V
Specification:
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| Memory | 2GB, 4GB optional | |
| Chipset | Inter Valley View SSA-Cunit | |
| HDD | 320GB SATA or 32GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |

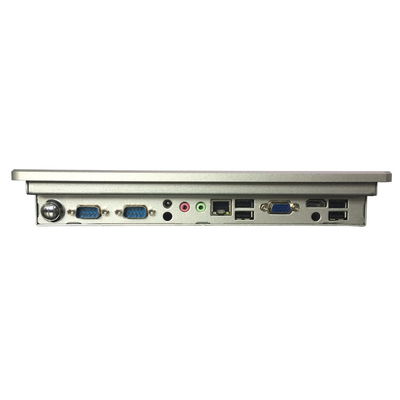

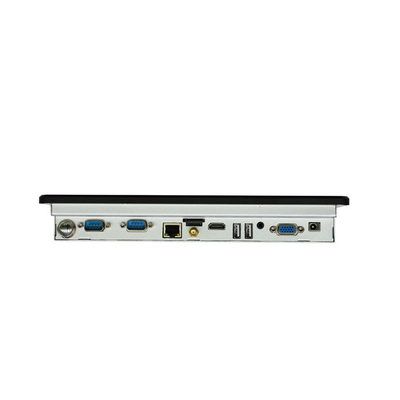

| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB | |
| HDMI Port | 1 X HDMI | |
| VGA Port | 1 x VGA | |
| Power Port | 1 x 12V DC Jack input | |
| LPT Slot | N/A | |
| Audio | MIC-IN,/MIC OUT | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 10.5” /4:3 | |
| Active Area/Pixel Pitch | 248 (H) X 186(V)/0.3075mm | |
| Native Resolution/Colors | 800x 600/16.7M | |
| Brightness/Contrast | 300nits/500:1 | |
| Viewing Angle(Typical) | 80/80/70/70 |
