High Brightness Integrated Buttons Operation Windows Panel PC 21.5”

  • High Brightness Integrated Buttons Operation Windows Panel PC 21.5”
Place of Origin China
Brand Name ITD
Model Number ITD21PPCT*O**
Minimum Order Quantity 1
Delivery Time 10-15 business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brightness 250cd/㎡ Warranty 2 Year
Resolution 1920 X 1080 Speakers Yes
Viewing Angle 89/89/89/89 Screen Size 21 Inch
High Light

250cd/m2 Windows Panel PC

,

21.5in Windows Panel PC
Leave a Message
Product Description

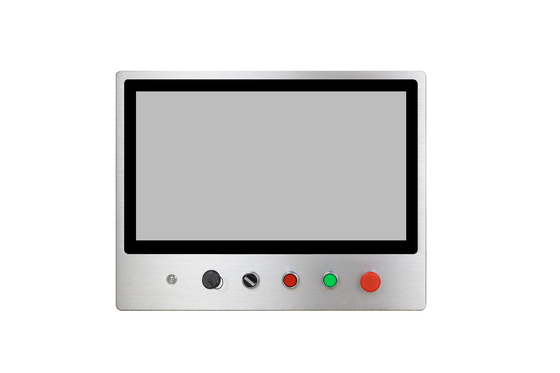

21.5” Integrated Buttons Operation Panel PC

Product Description:

The ITD integrated buttons operation panel PC typically features a touchscreen display, allowing users to interact directly with the interface by tapping or swiping on the screen. In addition to the touchscreen functionality, the device incorporates physical buttons that are strategically placed on the panel for specific functions. These buttons may serve as shortcuts, control inputs, or dedicated keys for certain tasks, enhancing the overall user experience and efficiency. It is mainly used for industrial automation, manufacturing control systems, medical equipment interfaces, and more. The integration of physical buttons with a touchscreen interface aims to strike a balance between the convenience of touch interaction and the precision of dedicated buttons, catering to a wide range of user preferences and operational requirements.

Features:

• Easy-to-clean, true flat front surface without bezel

• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

• Built-in function buttons for intuitive operation

• Eliminates dust and debris build-up at the edge and corners of the display

• Provides improved power efficiency and reduced consumption

• PCAP touch control with responding to a light touch to activate response

• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

• Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

• CE, FCC, RoHS Compliance



OPTIONALS

• DC 24V, DC9-36V, AC100-240V
• Optical bonding, High brightness
• Resistive touch screen, tempered glass, AR/AG
• WIFI, 4G/5G, GPS

DISPLAY





Panel
 Cell Type/Glass SurfaceTFT
 Size/ Aspect Ratio21.5”/16:9
 Active Area/ Pixel Pitch476.64(H) x268.11(V)mm/0.24825× 0.24825mm
 Native Resolution/ Colors1920 x 1080/16.7M
 Brightness/ Contrast250cd/㎡/1000:1
 Response Time/ Viewing Angle(Typical)5ms/89/89/89/89
 Light SourceLED Backlight with 50000Hours’Lifetime
SYSTEM
ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional)Intel® Celeron J1900//J4125/J6412 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory2GB; 4GB OptionalDual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.)
Storage8GB: 16GB/32GB/64GB Optional1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD/UHD Graphics (By CPU)
I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; COM port(optional); 1×Realtek ALC662 Line-Out /MIC IN1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 1×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN
LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet( Dual LAN optional)1×10/100/1000Mbps Ethernet( Dual LAN optional)
OSAndroid 7.1/8/10/11 Linux Ubuntu(optional)Windows 7/10, Linux Windows 11(available for J4125/J6412)Windows 7/10, Linux Windows 11(available for 7th gen. or above)
GENERAL
PowerInput VoltageDC 12V input
 Operation/Power Saving18~30W
Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ optional)
 Storage Temperature-20~70℃
 Relative Humidity10%~90%

Packing and Shipping:

Packaging and Shipping for Digital Signage Displays

Digital signage displays are packaged and shipped with care. All displays are carefully inspected and tested before shipping. They are then wrapped in protective packaging, such as anti-static bubble wrap, to ensure a safe arrival. A cardboard box is then used to further secure the package.
The package is then labeled with the appropriate shipping information, including the recipient's address. The package is then taken to a courier service, such as UPS, FedEx, or DHL, for delivery to the appropriate destination.



FAQ:

Q1: What is the brand name of Digital Signage Displays?
A1: The brand name of Digital Signage Displays is ITD.
Q2: What is the model number of Digital Signage Displays?
A2: The model number of Digital Signage Displays is ITD86CMFIPWG3J1.
Q3: Where is Digital Signage Displays manufactured?
A3: Digital Signage Displays is manufactured in China.
Q4: What is the minimum order quantity for Digital Signage Displays?
A4: The minimum order quantity for Digital Signage Displays is 1.
Q5: What are the payment terms for Digital Signage Displays?
A5: The payment terms for Digital Signage Displays is T/T.


High Brightness Integrated Buttons Operation Windows Panel PC 21.5” 0
High Brightness Integrated Buttons Operation Windows Panel PC 21.5” 1High Brightness Integrated Buttons Operation Windows Panel PC 21.5” 2High Brightness Integrated Buttons Operation Windows Panel PC 21.5” 3High Brightness Integrated Buttons Operation Windows Panel PC 21.5” 4
