10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface

  • 10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
  • 10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
  • 10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101KITT5xxxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screen Diagonal (Inch) 10.1" Display Active Screen Size 216.96(W)X135.6(H) Mm
Aspect Ratio 16:10 Resolution 1280x800 (1920×1200 Optional)
Brightness 350 Cd/m2 (1000 Cd/m2 Optional) Contrast Ratio 800:1
View Angels 85/85/85/85 Touch Panel Projected Capacitive Touch
High Light

10.1'' LCD Touch Screen Kits

,

TFT-LCD Pcap Multi Touch Screen

,

USB Interface LCD Touch Screen Kits
Leave a Message
Product Description

10.1" lcd touch screen kits TFT-LCD pcap multi touch screen with USB interface



SPECIFICATIONS of 17.3" 10.1" lcd touch screen kits



10.1 inch LCD Touchscreen Kit

Model Name ITD101KITT5xxxx
IP Rating Front IP65

LCD Pane

Screen Diagonal (Inch) 10.1”
Display Active Screen Size (mm) 216.96(W)×135.6(H)
Aspect Ratio 16:10
Physical Resolution 1280×800 (1920×1200 optional)
Maximum Resolution Supported 1920×1200
Colors 16.7M
Brightness (cd/m2) 350 cd/m2 (1000 cd/m2 optional)
Response Time 25ms
Contrast Ratio 800:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000Hours’Lifetime

Touch Panel

Touch Technology Projected Capacitive Touch
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Touch Life 50,000,000times/click
Surface Hardness 7H
Surface Treatment Anti-Glare, Anti-Reflective, Anti-Finger optional
Glass Strengthening Chemically Strengthened

AD Board(optional)

Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation

Operating Temperature Range -20~70°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Input DC 12V, DC9~36V input optional
Power Consumption 8W





Product image:

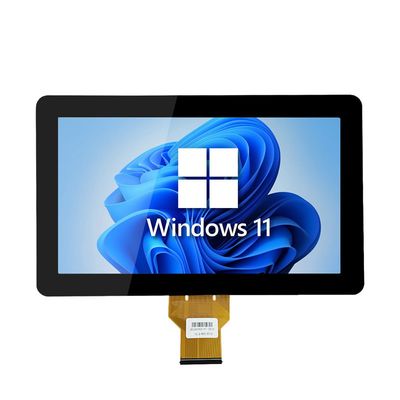

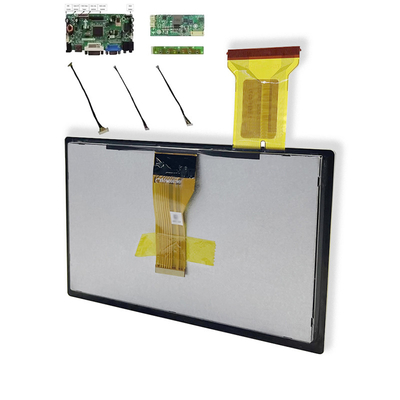

10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface 0













10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface 1



10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface 2


10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface 3
