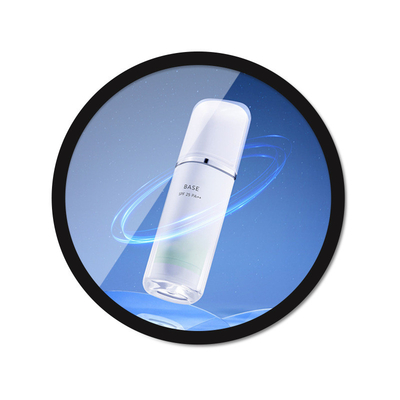

ITD 23.6''Round Touchscreen LCD AIO Display High Brightness 1920×1080 Industrial Grade for outdoor application, such as outdoor totem, outdoor kiosk, factory automation, military, transportation.
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ip Rating | IP65 Front Panel | Power Supply | AC100~240V Input |
|---|---|---|---|
| Display Resolution | 1920×1080 | Certificates | CE, FCC, RoHS |
| Storage Temperature | -20°C ~ 70°C |
Product Description
INTRODUCTION
ITD's 23.6" round touchscreen AIO display is a cutting-edge solution designed for unique and innovative applications. With its sleek circular design, high-resolution display, and responsive PCAP touch technology, this all-in-one system delivers an engaging and modern user experience. Engineered for durability and seamless integration, it is ideal for gaming, retail, kiosks, and industrial automation. Whether enhancing interactive signage or creating futuristic control interfaces, ITD’s 23.6" round touchscreen display offers versatility, reliability, and a striking visual impact.
FEATURES
• Unique Round Design – A stylish and modern circular display that enhances aesthetics and user engagement.
• High-Resolution Display – Delivers crisp visuals and vibrant colors for an immersive viewing experience.
• Projected Capacitive (PCAP) Touch – Provides smooth and responsive multi-touch interaction.
• All-in-One System – Integrated computing power for seamless performance without the need for external devices.
• Industrial-Grade Durability – Designed for long-term reliability with robust materials and components.
• Versatile Mounting Options – Supports flexible installation for various applications, including kiosks, gaming, and automation.
• Wide Operating Temperature Range – Ensures stable performance in demanding environments.
• CE, FCC, RoHS Compliance
Optional:
WIFI, 4G/5G, Bluetooth, GPS, DC12V
High Brightness, Optical Bonding, AR/AG/AF Tempered Glass
SPECIFICATION
Display
| Panel | Cell Type/Glass Surface | TFT-LCD |
| Size/ Aspect Ratio | 23.6” | |
| Active Area/ Pixel Pitch | 599.424(W)×599.424(H) mm/0.4683 × 0.4683mm | |
| Native Resolution/ Colors | 1280×1280/16.7M | |
| Brightness/ Contrast | 700cd/㎡(1500 cd/㎡ optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 14ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000 Hours’ Lifetime |
System
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568//RK3576/RK3588 optional) | Intel® Celeron J1900/J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 (4th~13th Generation or newer optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB/8GB Optional | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage | 8GB; 16GB/32GB/64GB/128G Optional | 1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD | 1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional) | Windows 7/10, Linux Windows 11(available for J4125/J6412) | Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
General
| Power | Input Voltage | AC100~240V input |
| Operation/Power Saving | 40~70W | |
| Environment Considerations | Operating Temperature | -20~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~80%(Non-Condensing) |
