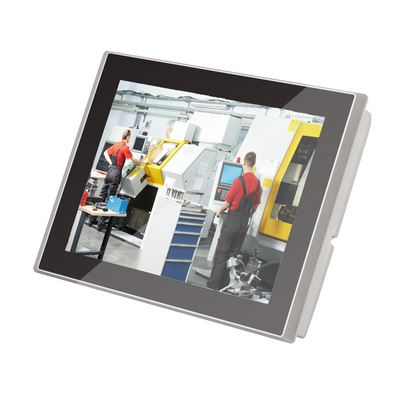

12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|

  • 12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD12PPCT5B-1335U
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



12.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 012.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 112.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 212.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 312.1'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 4





FEATURES

▪ Onboard lntel J4125/J6412/N100/N150 Onboard Intel 8/10/11/12/13th Core i5/i7

▪ J4125/J6412: DDR4 SODIMM*1; N100/N150: DDR5 SODIMM*1 8/10/11th: DDR4 SODIMM*2; 12/13th: DDR5 SODIMM*2

▪ LCD+HDMI Output, Support Dual view/Simultaneous display

▪ Wide DC Support 9 ~ 36V

▪ Fanless Operation

▪ IP65 Front Bezel





SPECIFICATION

System Processor Onboard lntel J4125/J6412/N100/N150 Onboard lntel 8/10/11/12/13th Core i5/i7
Memory

J4125/J6412: DDR4 SODIMM *1; N100/N150: DDR5 SODIMM *1

8/10/11th Gen: DDR4 SODIMM *2;

12/13th Gen: DDR5 SODIMM *2
Chipset Inter Valley View SSA-Cunit
HDD 320GB SATA or 32GB SSD
LAN 2x 2.5 GbE RJ45 Intel i225V/i226V(4xGbE RJ45 optional)
Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 15''/4:3
Active Area/Pixel Pitch 304.1(H) x 228.1(V)/0.297mm
Native Resolution/Colors 1024 x 768 /16.2M
Response TBrightness/Contrast 1000nits/700:1
Viewing Angle(Typical) 80/80/60/80
Synchronization Range Horizontal/Vertica 31.5~60.0KHz/60~75Hz
Light Source LED backlight with 50000hours’lifetime
Input / Output Serial Ports 2 x DB9 COM1&COM2,RS-232/422/485
USB Ports 2 x USB3.0,4 x USB2.0 (J4125/J6412/N100/N150/11th) 4 x USB3.0,2 x USB2.0 (8/10/12/13th)
HDMI Port 1 X HDMI
AT/ATX Port 1 x AT/ATX
1 x Expansion IO 4x3-wire COM, 1 x10bit GPIO, 1x Remote switch
Audio MIC-IN, LINE-OUT
Storage Disk Driver 1 x M.2 2242/2260/2280 SATA 1 x 2.5'' HDD/SSD 1 x M.2 2280 NVME
Expansion Slot M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth
Others watchdog, PXE
OS support Windows,Linux
Power DC 9 ~ 36V 4-pin aviation connector
Max.Resolution 1024x768
Operating Temperature -10℃~60℃
Storage Temperature -20℃~70℃
Relative Humidity 10~90% @30°C, non-condensing
