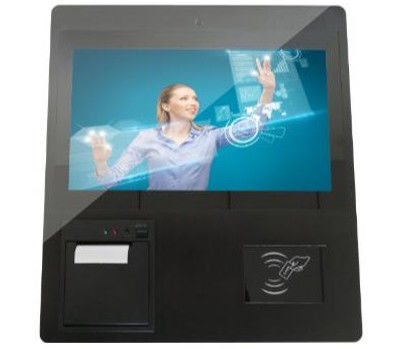

13.3'' PCAP Flat Bezel Touch LCD Panel PC All In One Fanless With RFID Reader And Printer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
INTRODUCTION
ITD’s 13.3" PCAP Touch Panel PC — a versatile all-in-one solution designed to streamline your operations. This rugged industrial-grade device combines a high-resolution 13.3-inch PCAP touch screen with an integrated RFID reader and thermal printer, making it ideal for applications in retail, logistics, access control, and ticketing systems. Built for durability and ease of use, it delivers seamless data capture, quick printing, and intuitive touch interaction in a compact footprint. Empower your business with ITD’s smart, reliable, and space-saving touch panel PC solution.
FEATURES
▪True flat, easy-to-clean front surface with prevents dust and debris buildup around display edges
•Rugged and reliable touch panel PC ideal for HMI/SCADA applications
•Integrated web camera, RFID reader, and thermal printer
•Supports 10-point multi-touch on Windows and Linux
•Energy-efficient design with reduced power consumption
•Front panel rated for rugged protection: NEMA 4, IP65
•Durable aluminum bezel and steel chassis for harsh industrial environments
•Compliant with CE, FCC, and RoHS standards
OPTIONS
•DC 24V, DC9-36V, AC100-240V
•High Brightness, Optical Bonding
•Resistive Touch Screen, AR/AG/AF Tempered Glass
•Speakers, NFC, Fingerprint, QR reader, etc
SPECIFICATION
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | AMI | |
| Memory | 1 × SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.8GB | |
| Chipset | Intel Bay Trail SoC | |
| Storage | 1 × SATA, 1 × mSATA, Default to 64GB SSD | |
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Panel | Cell Type/Glass Surface | Color TFT LCD |
| Aspect Ratio/Size | 13.3''/16:9 | |
| Active Area/Pixel Pitch | 293.76(W)×165.24(H)mm/0.153×0.153 mm | |
| Native Resolution/Colors | 1920×1080/16.7M | |
| Response Brightness/Contrast | 500cd/㎡/800:1 | |
| Viewing Angle(Typical) | 89/89/89/89 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input / Output | Serial Ports | Optional |
| USB Ports | 4 X USB | |
| HDMI Port | 1x HDMI Output | |
| VGA Port | 1 x VGA Output | |
| Audio Card |
Realtek ALC662 Line-Out/MIC IN |
|
| LAN | 1 × 10/100/1000Mbps Ethernet (Dual LAN Optional) | |
| Power | Input | DC 12V |
| Operation/Power Saving | 20W | |
| Operating Temperature | -10~60℃ (-20~70℃ Optional) | |
| Storage Temperature | -20℃~70℃ | |
| Relative Humidity | 10%~90% | |
