7" terminals panel PC with NFC RFID card reader for access control entrance guard integrated Android Windows
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD07PPCT5X*-NFC/RFID |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 12-15 Business Days |
| Payment Terms | T/T,Western Union,Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brightness | 250cd/500cd/m2 | Input Voltage | DC12V,DC9-36V |
|---|---|---|---|

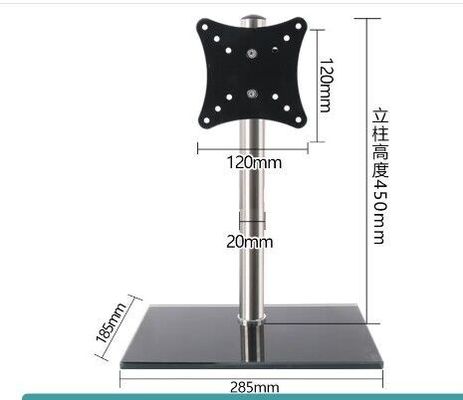

| Touch Screen | Resistive Touch, AR/AG/AF Tempered Glass, Optical Bonding | Mount | VESA, Embedded Mount, Panel Mount, Desktop |
| ARM Solution | ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 Optional) | X86 Solution | Celeron J1900/J4125/J6412,i3,i5,i7 |
| OS 1 | Android 7.1/8/10/11,etc. Linux Ubuntu(optional) | OS 2 | Windows 7/10/11,Linux |
Product Description

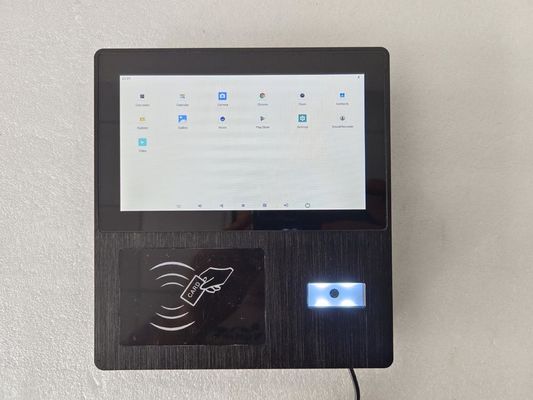

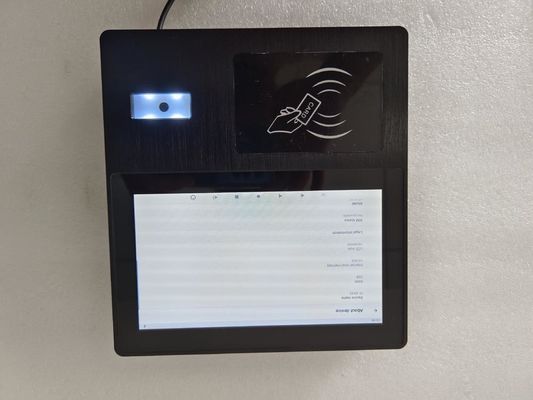

7" terminals panel PC with NFC RFID card reader for access control entrance guard
7-inch terminals panel PC, equipped with an integrated NFC RFID card reader. This compact yet powerful device combines the convenience of a touchscreen interface with advanced contactless technology, enabling seamless data capture and authentication. Ideal for applications requiring secure and efficient user identification, access control, or payment processing, the 7-inch panel PC offers a user-friendly experience while ensuring robust security features. Its sleek design and versatile functionality make it suitable for a wide range of industries, including retail, hospitality, healthcare, and logistics. Enhance your operations with our 7-inch terminals panel PC featuring NFC RFID card reader technology.
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 7” 16:9 | |
| Active Area/ Pixel Pitch | 155.5(W) x 87.5(H)mm/0.150 × 0.150mm | |
| Native Resolution/ Colors | 1024 × 600 /16.7M | |
| Brightness/ Contrast | 250cd/㎡(500~1000cd/㎡optional)/700:1 | |
| Response Time/ Viewing Angle(Typical) | 10ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB/8GB Optional |
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage |
8GB; 16GB/32GB/64GB/128G Optional |
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| Default Waterproof M12 I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional) |
Windows 7/10, Linux Windows 11(available for J4125/J6412) |
Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
SPECIFICATION
| System |
CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz; GPU: PowerVR G6110 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0 Bluetooth: Optional Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |

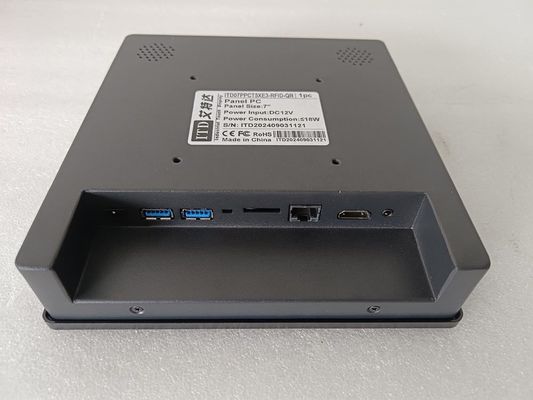

| Input / Output |
1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG 4 × COM; 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0; 3G/4G Optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (Non Condensing) |
Product Display
