27" panel mount industrial HMI panel PC pure flat surface embedded touch computer

  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
  • 27" panel mount industrial HMI panel PC pure flat surface embedded touch computer
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD12PMT1X*
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-5 Business Days
Payment Terms T/T
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ITD27PPCT×B-×××××× Processor Lntel® J6412,N97 & 4 Th~12 Th Gen U-Series Core TM I3/i5/i7
Memory Memory Type Depends On The CPU Model Ethernet 2 × GbE RJ45 Intel I210-AT
Expansion Slot Mini-PCle × 1 Full Size With SIM Card For 3G/4GM.2 Key E × 1 For WIFI/BT M.2 Key B × 1 For 5G Watchdog Timer Windows® 10/11,Linux
Construction Aluminum Design Mounting VESA 100/ Panel Mount
Cutout Dimension 641.1 × 385.7 Mm
Leave a Message
Product Description

27" panel mount industrial HMI panel PC pure flat surface embedded touch computer


Features of 27" panel mount HMI


◼Supports Intel® J6412,N97 & 4 th ~ 12 th Gen U-Series Core TM i3/i5/i7 Processors

◼LCD+HDMI Dual Displays

◼IP65-rated Front Panel

◼Fanless Design with Aluminum Alloy Enclosure

◼9~36V Wide Range DC Input




Specifications of 27" embedded panel PC


Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

27”/16:9

Active Area/ Pixel Pitch

597.888(H) ×336.312(V)mm/0.3114 × 0.3114mm

Native Resolution/ Colors

1920×1080/16.7M

Brightness/ Contrast

300cd/㎡/1000:1

Response Time/ Viewing Angle(Typical)

14ms/89/89/89/89

Light Source

LED Backlight with 30000Hours’Lifetime

System

Item

ARM Solution

X86 Solution 1

X86 Solution 2

CPU

ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)

Intel® Celeron J1900/J4125/J6412 2.0GHz

Intel® Core i3/i5/i7

(4th~12th Generation optional)

Chipset

Rockchip

Intel Bay Trail SoC

Intel SoC Chipset

Memory

2GB; 4GB/8GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

DDR4 SODIMM ×2 (8th~12th gen.)

Storage

8GB; 16GB/32GB/64GB/128G Optional



1×mSATA, 1×SATA

1×M.2 (not available for J1900) Default to 64GB SSD

1×mSATA, 1×SATA

1×M.2 Default to 64GB SSD

Graphics

Supports max. 4K resolution

Intel HD/UHD Graphics (By CPU)

Intel HD/UHD Graphics (By CPU)

I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662

Line-Out /MIC IN

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662

Line-Out /MIC IN

LAN

1×10/100/1000Mbps Ethernet

1× 10/100/1000Mbps Ethernet( Dual LAN optional)

1×10/100/1000Mbps Ethernet( Dual LAN optional)

OS

Android 7.1/8/10/11/12, etc.

Linux Ubuntu(optional)

Windows 7/10, Linux

Windows 11(available for J4125/J6412)

Windows 7/10, Linux

Windows 11(available for 7th gen. or above)




Product Display

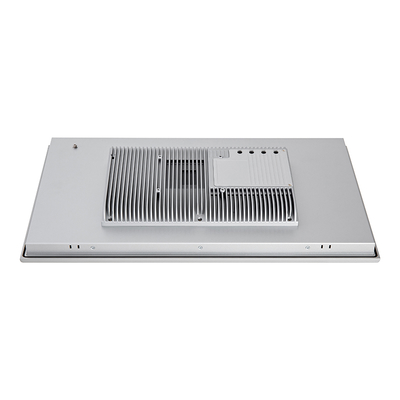

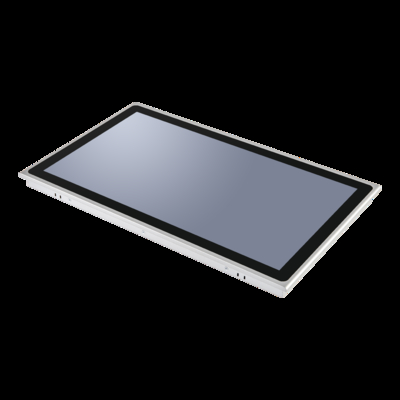

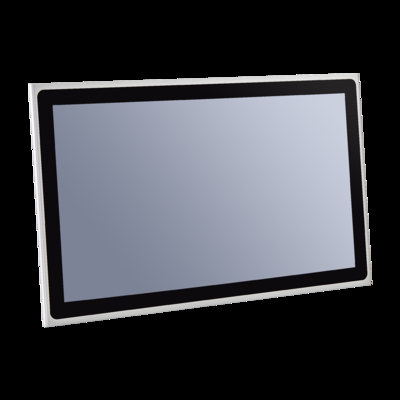

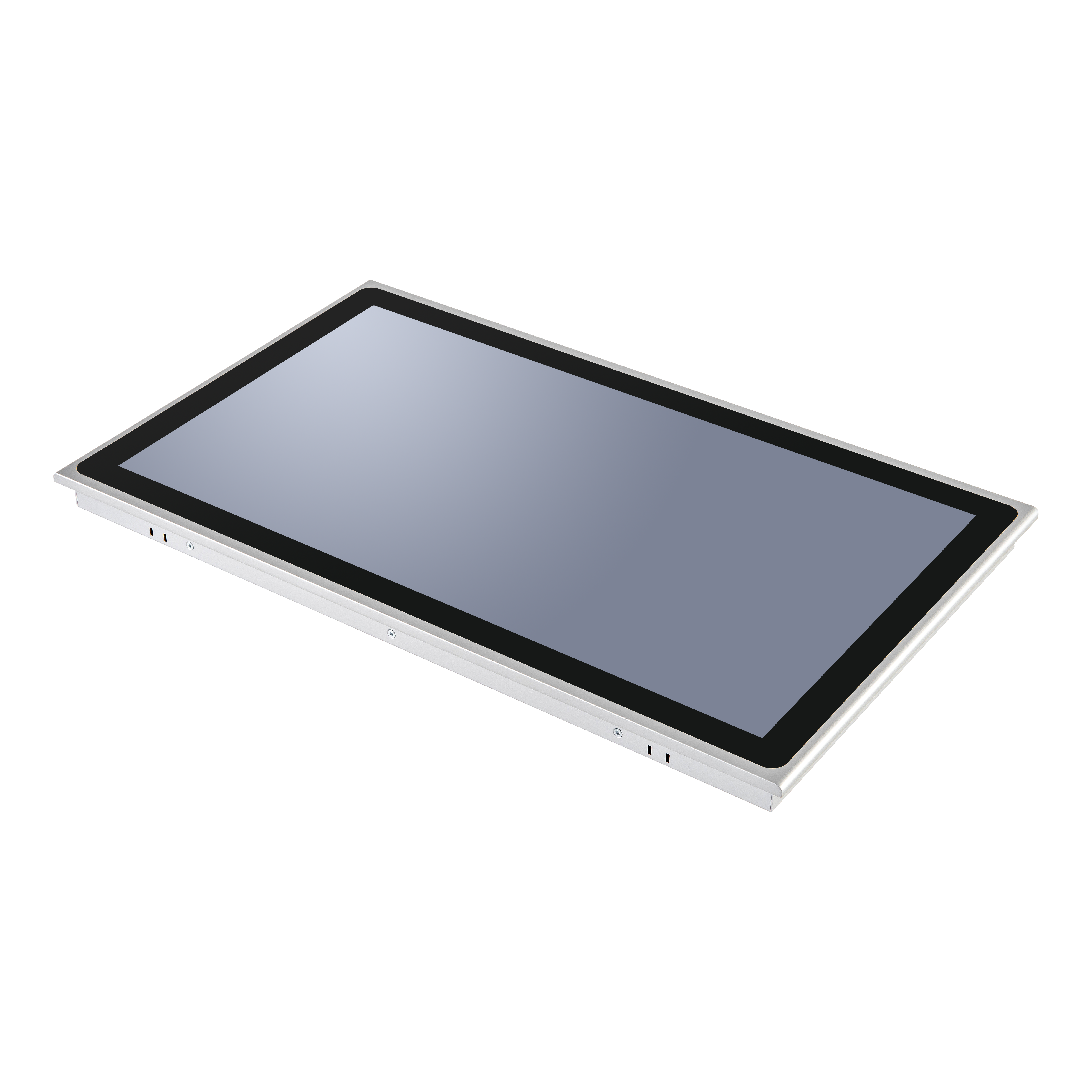

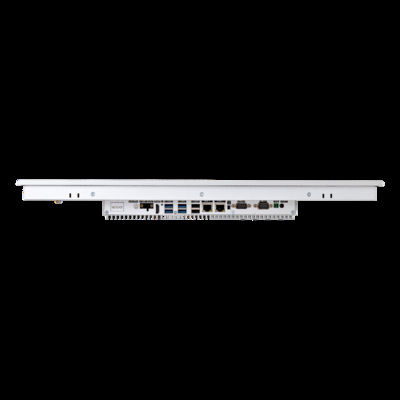

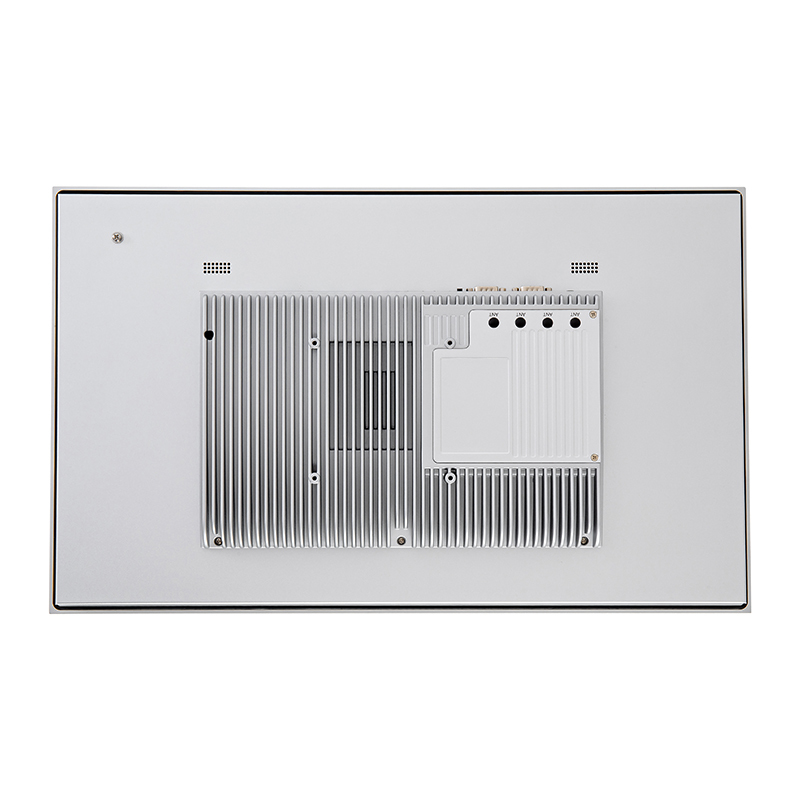

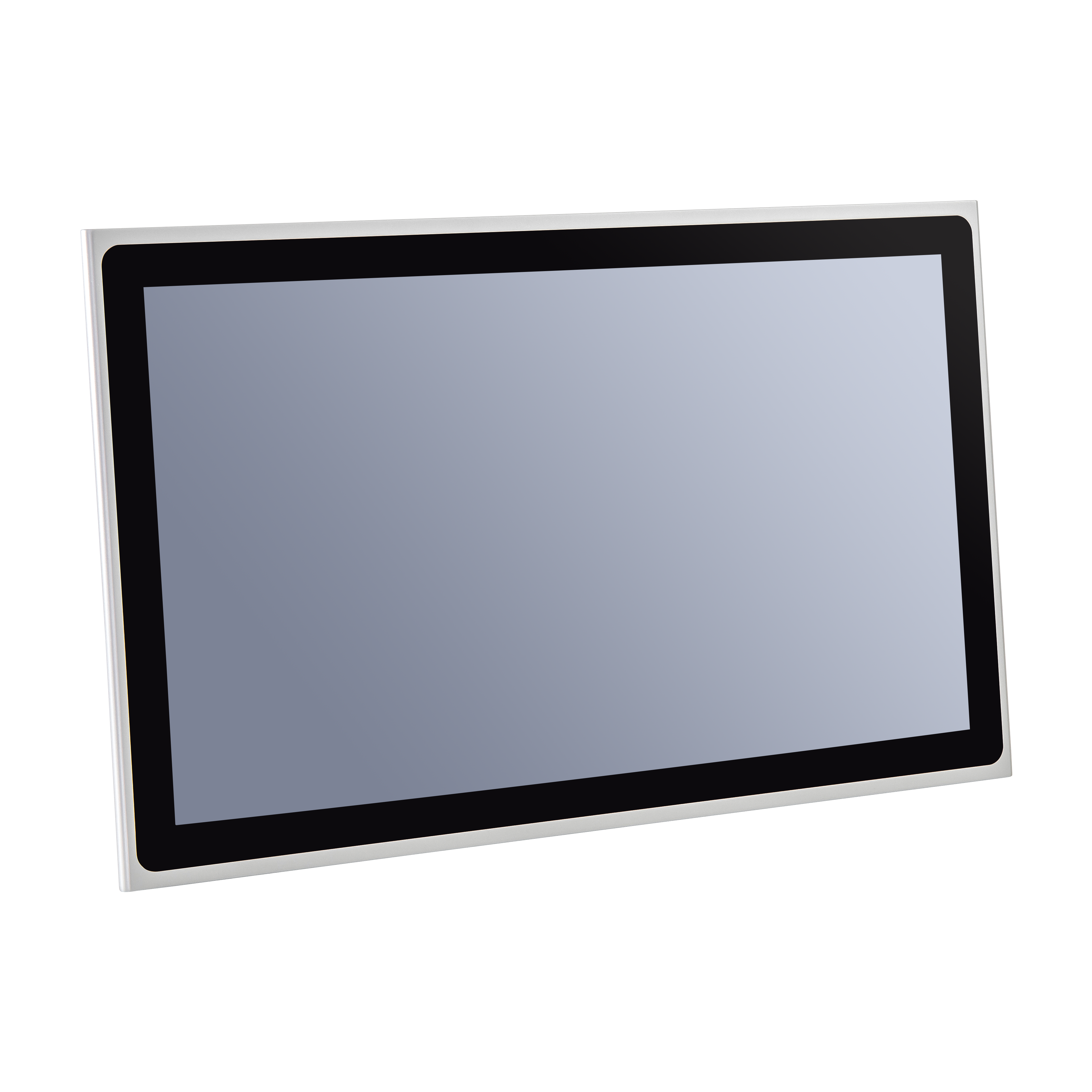

27" panel mount industrial HMI panel PC pure flat surface embedded touch computer 0


27" panel mount industrial HMI panel PC pure flat surface embedded touch computer 1







27" panel mount industrial HMI panel PC pure flat surface embedded touch computer 2



27" panel mount industrial HMI panel PC pure flat surface embedded touch computer 3




Our Company


27" panel mount industrial HMI panel PC pure flat surface embedded touch computer 4
