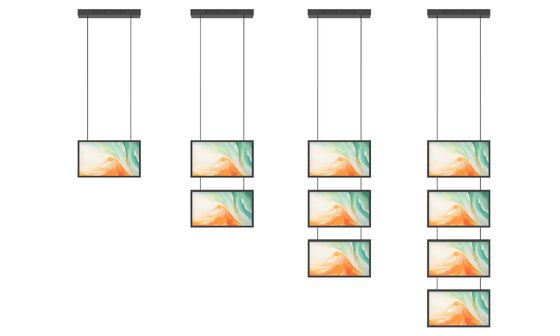

18.5" to 27" High Brightness Single-Sided Hanging Multi-Screen Hanging Window Display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
FEATURES
☛High Brightness LCD Panel
LCD Backlight 1500-2000nits Ensures Optimal Visibility Under Direct Sunlight
☛Intelligent Brightness Control
Auto-Dimming Based on Ambient Light. Maximizes Energy Efficiency
☛Wide Temperature Resistant LCD Panel
Supports Operating Temperature:-20~70℃
No Blackening Under Direct Sunlight
☛High-Temperature Resistant Optical Materials
Uses High-Temperature Resistant Optical Materials
No Deformation Under Sunlight Exposure
☛Low Noise
Low-Noise Design
Sound Level Below 25 dB
☛Industrial Design – Ultra-Slim Body
Narrow Bezel and Ultra-Slim Profile
Supports Multi-Screen Continuous Hanging
Integrated Power and Suspension Wiring for
Enhanced Aesthetics and Neat Installation
|
Model |
ITD18CMN1HBQx |
ITD21CMN1HBQx |
ITD24CMN1HBQx |
ITD27CMN1HBQx |
|
Size |
18.5" |
21.5" |
23.8" |
27" |
|
Aspect Ratio |
16:9 |
16:9 |
16:9 |
16:9 |
|
Active Area |
408.96(W)×230.04(H) mm |
476.64(W)×268.11(H) mm |
527.04(W)×296.46(H) mm |
597.888(W)×336.312(H) mm |
|
Pixel Pitch |
0.213×0.213mm |
0.2493×0.241mm |
0.2745×0.2745mm |
0.3114×0.3114mm |
|
Response Time |
30ms |
14ms |
14ms |
14ms |
|
Colors |
16.7M |
16.7M |
16.7M |
16.7M |
|
Resolution |
1920 × 1080 |
1920 × 1080 |
1920 × 1080 |
1920 × 1080 |
|
Brightness |
1000~2000cd/㎡ |
1000~2000cd/㎡ |
1000~2000cd/㎡ |
1000~2000cd/㎡ |
|
Contrast |
1200:1 |
1000:1 |
1000:1 |
1000:1 |
|
Viewing Angle |
170°/170° |
178° / 178° |
178° / 178° |
178° / 178° |
|
Lifespan |
50,000h |
50,000h |
50,000h |
50,000h |
|
Operating |
24/7/365 |
24/7/365 |
24/7/365 |
24/7/365 |
|
Display Mode |
Landscape or Portrait |
Landscape or Portrait |
Landscape or Portrait |
Landscape or Portrait |
|
Mainboard |
RK3568 Android 11 (RK3288, RK3588, Single Media Player optional) |
|||
|
Interface |
RJ45 ×1, USB ×1, |
|||
|
Color |
Black / White |
Black / White |
Black / White |
Black / White |
|
Bezel Width |
15mm |
15mm |
15mm |
15mm |
|
Dimensions (W×H×D) |
440 × 272 × 40mm |
510 × 302 × 40mm |
559 × 328 × 40mm |
630 × 368 × 40mm |
|
Net Weight |
3 kg |
4 kg |
5 kg |
6 kg |
|
Mounting Method |
Steel Wire Hanging, Height Customizable |
Steel Wire Hanging, Height Customizable |
Steel Wire Hanging, Height Customizable |
Steel Wire Hanging, Height Customizable |
|
Operating Temperature |
-10 ~ 60 °C |
-10 ~ 60 °C |
-10 ~ 60 °C |
-10 ~ 60 °C |
|
Operating Humidity |
10% ~ 85% |
10% ~ 85% |
10% ~ 85% |
10% ~ 85% |
|
Power Input |
DC 24V |
DC 24V |
DC 24V |
DC 24V |
|
Power Supply Input |
180–264V, 50/60Hz |
180–264V, 50/60Hz |
180–264V, 50/60Hz |
180–264V, 50/60Hz |
|
Max Power Consumption |
56 W |
68 W |
66 W |
80 W |
