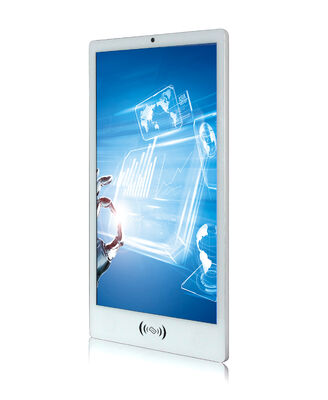

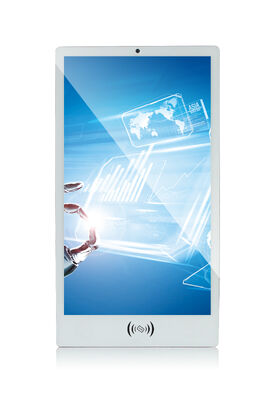

Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC

  • Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC
  • Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD32PPCT5KI*-NFC/RFID
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T,PayPal(173515844@qq.com)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

32-inch PCAP touch panel PC

,

RFID reader touchscreen LCD

,

NFC-enabled flat bezel display
Leave a Message
Product Description

INTRODUCTION

ITD 32” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 32” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

FEATURES

▪Easy-to-clean, true flat front surface without bezel

▪ Card Reader like NFC, RFID, etc integrated

▪ Ten independent touch points with anti-vandalism & scratch

▪ Responds to a light touch to activate response

▪ Eliminates dust and debris build-up at the edge and corners of the display

▪ Provides improved power efficiency and reduced consumption

▪ Ruggedized levels of NEMA 4, IP65 ratings for front panel

▪All steel and aluminum frame construction designed for public and industrial environments

▪ CE, FCC, RoHS Compliance

OPTIONS

•WIFI, Bluetooth,GPS

•Web Camera, Speakers, Microphone built-in

•VESA brackets, desktop stand

•DC12V, DC 24V, DC9-36V, PoE

•AR/AG/AF Tempered Glass, Anti-UV Coating

•High Brightness, Auto-Dimming, Optical Bonding

• Desktop Stand, Arm Mount, VESA Mount



SPECIFICATION

Panel Cell Type/Glass Surface  TFT
Size/ Aspect Ratio  32”/16:9
Active Area/ Pixel Pitch  Active Area/ Pixel Pitch
Native Resolution/ Colors  1920×1080/16.7M
Brightness/ Contrast 400cd/㎡(500~1500 cd/㎡optional)/1200:1
Response Time/ Viewing Angle(Typical)  8ms/89/89/89/89
Light Source LED Backlight with 30000Hours’Lifetime
SYSTEM
System CPU Intel® Core i3/i5/i7 Processor(4th~14th Generation optional)
Memory 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
DDR4 SODIMM ×2 (8th or newer); DDR5(12th or newer)
Chipset Intel SoC Chipset
Storage 1×mSATA, 1×SATA
1×M.2 Default to 128GB SSD
Graphic Chipset Intel HD/UHD Graphics (By CPU)
LAN 1 x 10/100/1000Mbps Ethernet
Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 32''/16:9
Active Area/Pixel Pitch 698.7(H) x 393.3(V)/0.3638 × 0.3638mm
Native Resolution/Colors 1920 x 1080
Response Brightness/Contrast 400cd/㎡ /1200:1
Viewing Angle(Typical) 178(H)/178(V)
Light Source LED backlight with 50000hours’lifetime
Input / Output Serial Ports 2 x COM,Max 6
USB Ports ; 2×USB 3.0; 2×USB 2.0
max. 6
HDMI Port 1x HDMI Output
VGA Port 1 x VGA Output
Audio Card

 1×Realtek ALC662
Line-Out /MIC IN
Power Input  AC 110-240V
Operation/Power Saving 60~90W
Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃
Relative Humidity 10%~90% (Non Condensing)


Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC 0Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC 1Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC 2Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC 3Customize 32'' PCAP Flat Bezel Touch LCD Panel PC With RFID Reader And NFC 4
