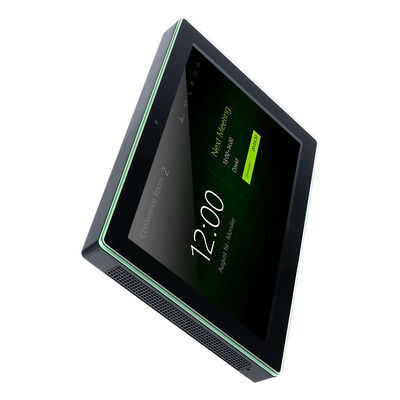

10.1” Touch Android Tablet PCAP Zero Bezel Touch LCD Panel PC All In One with Halo LED light strip

  • 10.1” Touch Android Tablet PCAP Zero Bezel Touch LCD Panel PC All In One with Halo LED light strip
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD101PPCT5KE1-DC
Document 10.1 inch Zero Bezel PCAP T...DC.pdf
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T,PayPal(173515844@qq.com)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

10.1 inch Android tablet PC

,

zero bezel touch LCD panel

,

all-in-one PC with LED light
Leave a Message
Product Description

INTRODUCTION

ITD 10.1” multi-touch screen HMI comfort panel PC is fully-integrated‚ with halo LED indicator, multi
capacitive touch screen combines high-performance ARM Quad-Core Cortex-A17 Processor RK3288
1.82.0GHz, and Projected Capacitive Touch (PCT or PCAP) Technology in commercial-grade LCD flat
panels, combined with a smart card reader and web camera with sleek and flat front surface
industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10
multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited
for various smart interactive applications.


FEATURES

▪ Easy-to-clean, true flat front surface without bezel
▪ RFID/NFC/camera Modules Built-in
▪ Ten independent touch points with anti-vandalism & scratch
▪ Responds to a light touch to activate response
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Halo LED indicator integrated
▪Plastic housing equipped with light weight
▪ CE, FCC, RoHS Compliance



SPECIFICATION

Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.96(W) × 135.6(H)mm
Pixel Pitch 0.1695× 0.1695mm
Native Resolution 1280 × 800(1920×1200 optional)
Colors 16.7M
Brightness 300nits
Contrast 800:1
Response Time  30ms
Viewing Angle(Typical)  85/85/85/85
Light Source  LED Backlight with 30000Hours’Lifetime
Native Resolution/Colors 1280×800/16.7M
Response Brightness/Contrast 350cd/㎡(500~1000 cd/㎡optional)/800:1
Viewing Angle(Typical) 85/85/85/85
Light Source LED backlight with 50000hours’lifetime
System CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz
GPU: Mali-T764 GPU
SDRAM: 2G; 4G Optional
Flash: 8G: 16G/32G/64G Optional
OS: Android 8.1/9.1 Bluetooth: included
Audio Format: Supports MP3/WMA/AAC etc.
Video Format: Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., up to
1080p
Photo Format: Supports JPEG
WIFI: 802.11b/g/n
2 × 2W Speakers Built-in
2MP Front Camera Built-in
Input / Output 1 × 3.5mm Earphone Jack
2 × USB Host 2.0, 1× mini-USB OTG
1 × RJ45 (10M/100M Ethernet)
1 × SD Card Slot up to 32GB
1 × DC Jack
1 × PoE (power input, POE 802.3af (15W) optional
Operating Temperature -10~60℃


10.1” Touch Android Tablet PCAP Zero Bezel Touch LCD Panel PC All In One with Halo LED light strip 0

10.1” Touch Android Tablet PCAP Zero Bezel Touch LCD Panel PC All In One with Halo LED light strip 1
