15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen

  • 15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen
  • 15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen
  • 15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen
  • 15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen
  • 15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD12CMT5HBIPR2W
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 20 Business Days
Payment Terms T/T,PayPal(173515844@qq.com)
Supply Ability 10000PCS/Month
Product Details
Native Resolution 1920*1080 Brightness 1500 Nits
Input Signal HDMI Input Touch Screen Capacitive Touch Screen
Power Source DC 9~36V Operating Temperature -20~70℃
Accessories 1×6m Power Cable, 1×6m Micro USB Cable, 1×6m HDMI Cable Key Control Power On/off With LED, Menu, Select, Adjustment
Leave a Message
Product Description

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen



FEATURES


Designed specifically for marine environments, ITD's 15.6” rugged display offers high-resolution, sunlight-readable screen with optically bonded advanced touch functionality. The fully sealed IP66/67 waterproof monitor provides crystal-clear imaging, and is readable with polarized glasses. Equipped with customizable interfaces, wide viewing angles, and anti-shock & vibration, ITD's rugged displays ensure reliability and performance even in very challenging conditions.


Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

15.6” 16:9

Active Area/ Pixel Pitch

344.16(H) ×193.59(V)mm/0.17925×0.17925mm

Native Resolution/ Colors

1920×1080/16.2M

Brightness/ Contrast

1500cd/㎡/800:1

Response Time/ Viewing Angle

13/12ms/89/89/89/89

Light Source

LED backlight with 50000hours’lifetime

Input Signals

HDMI input (Waterproof M12 Connector)

Convenient Features

Menu Adjustment, Touch on/off, Volume Control

Power Source

DC 9~36V (Isolated DC-DC Voltage Regulator Built-in)/Waterproof M12 Connector

Power Consumption

Operation/Power Saving

Below 35W

Touch Panel

Projected Capacitive Touch Panel with 10 Multi Touch Points

Micro USB Port (M12 Connector)

Plug and Play for Windows XP/7/8/10/11, Linux, Driver for Mac, Android

Key Control

Power on/off with LED, Menu, Select, Adjustment

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Relative Humidity

10%~90%(Non-Condensing)

Accessories

1×6m Power Cable, 1×6m Micro USB Cable, 1×6m HDMI Cable


FEATURES

•Equipped with Sunlight Readable LCD and readable with polarized sunglasses

•Rugged fan-less whole die-casting aluminum alloy enclosure with heatsink, flat surface with easy-to-clean

•IP66/67 fully sealed, with anti-corrosive rubber providing 360-degree protection

•10 points PCAP touch screen with anti-glare treatment and touch on/off control

•OSD menu board is fully integrated into the PCAP touch panel, allowing users to access and control all display settings directly through the touch interface

•Featuring Optical bonding with UV-resistant included in the bonding material

•Shock resistance up to 20G for enhanced durability and reliable performance in harsh marine environments

•CE, FCC, RoHS Compliance


Product display

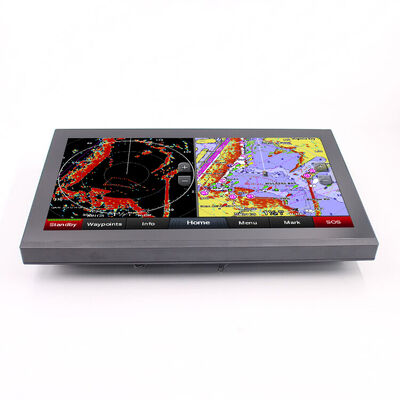

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen 0

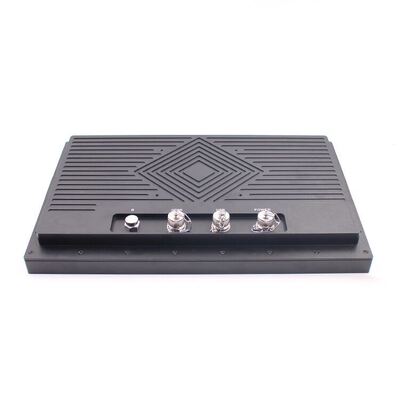

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen 1

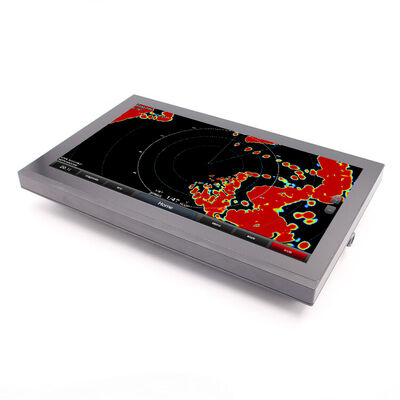

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen 2

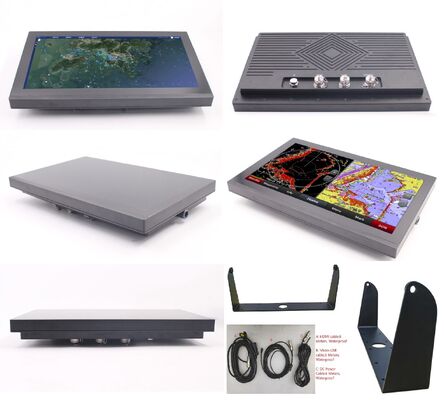

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen 3

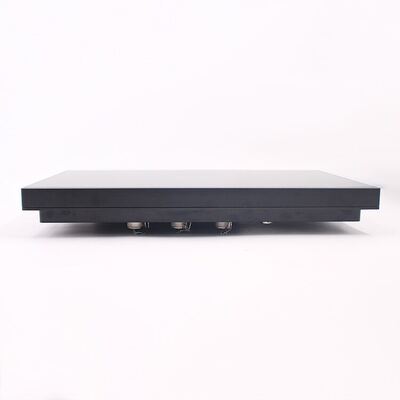

15.6" Rugged Sunlight Readable PCAP Touch Monitor IP66/IP67 full waterproof for Marine/Fishing rugged touch screen 4
