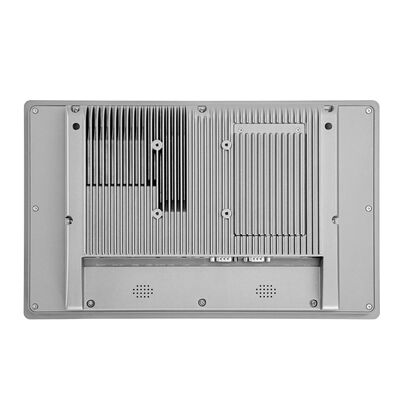

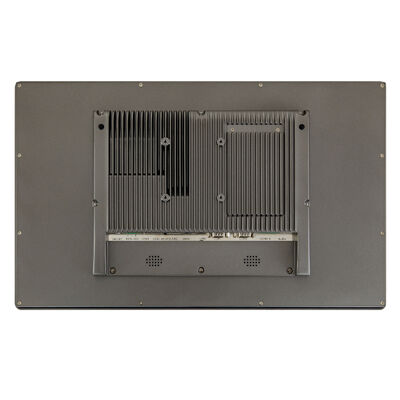

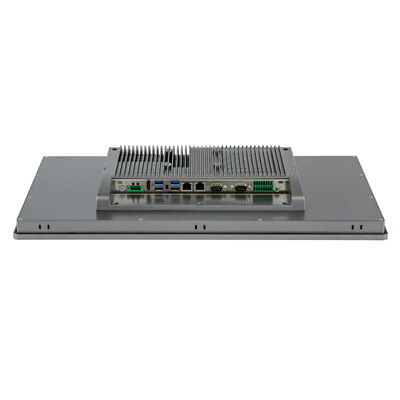

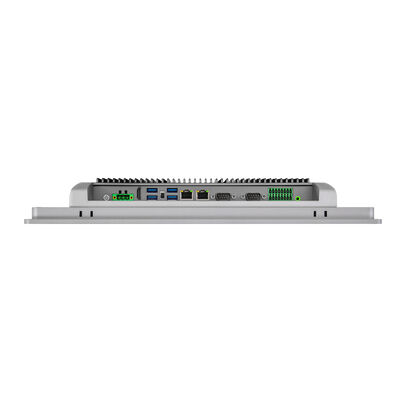

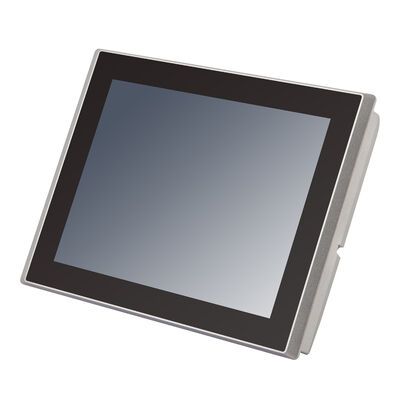

24" Industrial HMI Panel PC for Factory Automation Rugged Touchscreen Computer with IP65 Protection & Multi-Protocol Industrial I/O fanless all-in-one
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD24PPCTxB-xxxxxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T,PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Processor | Onboard Intel Celeron J1900/4th 6th/7th/8th Gen.Core I3/i5/i7,J6412,J4125 | Storage Disk Driver | 1xMSATA,1XSATA,1XM.2 |
|---|---|---|---|
| OS Support | Windows 7/8/10/11.WIN CE,LINUX | Construction | Full Aluminum |
| DC Input | 9-36V | Mounting | VESA 100/ Panel Mount |
| Operating Temperature | -10℃~60℃ | DC Input | DC 9~ 36V 2-pin Phoenix Connector |
| Luminance | 250 Cd/m2 (1000 Cd/m2 Optional) |
Product Description
24" Industrial HMI Panel PC for Factory Automation Rugged Touchscreen Computer with IP65 Protection & Multi-Protocol Industrial I/O fanless all-in-one
Features:
◼Supports Intel® J6412,N97 & 4 th ~ 12 th Gen U-Series Core TM i3/i5/i7 Processors
◼LCD+HDMI Dual Displays
◼IP65-rated Front Panel
◼Fanless Design with Die-Casting Aluminum Alloy Enclosure
◼9~36V Wide Range DC Input
SPECIFICATION of 24" Industrial HMI Panel PC
| Industrial HMI Touch Panel PC |
|||||||||||||||||||||||||||||||||||||
| Model Name | ITD24PPCT5B-xxxx | ||||||||||||||||||||||||||||||||||||
| IP Rating | IP65 Front Panel | ||||||||||||||||||||||||||||||||||||
PC Systems Options |
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
LCD Panel |
|||||||||||||||||||||||||||||||||||||
| Screen Diagonal (Inch) | 23.8” | ||||||||||||||||||||||||||||||||||||
| Aspect Ratio | 16:9 | ||||||||||||||||||||||||||||||||||||
| Physical Resolution | 1920×1080 | ||||||||||||||||||||||||||||||||||||
| Maximum Resolution Supported | 1920×1080 | ||||||||||||||||||||||||||||||||||||
| Colors | 16.7M | ||||||||||||||||||||||||||||||||||||
| Brightness (cd/m2) | 250nits | ||||||||||||||||||||||||||||||||||||
| Contrast Ratio | 1000:1 | ||||||||||||||||||||||||||||||||||||
| View Angels | 89/89/89/89 | ||||||||||||||||||||||||||||||||||||
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||||||||||||||||||||||||||||||||||||
Touch Panel |
|||||||||||||||||||||||||||||||||||||
| Touch Options | Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel | ||||||||||||||||||||||||||||||||||||
| Touch Drivers | Windows 7/8/10/11, Linux, Android, Mac | ||||||||||||||||||||||||||||||||||||
Operation |
|||||||||||||||||||||||||||||||||||||
| Operating Temperature Range | -20~60°C | ||||||||||||||||||||||||||||||||||||
| Humidity Range (RH) | 10-90% | ||||||||||||||||||||||||||||||||||||
| 24/7/365 Use | Supported | ||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||
| Power Indicator | Green LED | ||||||||||||||||||||||||||||||||||||
| Power Input | DC 9-36V with 4PIN M12 Connector | ||||||||||||||||||||||||||||||||||||
| Power Consumption | 35W | ||||||||||||||||||||||||||||||||||||
Order Information |
|||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with J4125 | ITD24PPCT5B-J4125 | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with J4125 | ITD24PPCT1B-J4125 | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with J6412 | ITD24PPCT5B-J6412 | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with J6412 | ITD24PPCT1B-J6412 | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with i5-8260U | ITD24PPCT5B-i5-8260U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with i5-8260U | ITD24PPCT1B- i5-8260U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with i7-8565U | ITD24PPCT5B-i7-8565U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with i7-8565U | ITD24PPCT1B- i7-8565U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with i5-10210U | ITD24PPCT5B-i5-10210U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with i5-10210U | ITD24PPCT1B- i5-10210U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI PCAP Touch Panel PC with i7-10510U | ITD24PPCT5B-i7-10510U | ||||||||||||||||||||||||||||||||||||
| 24”Industrial HMI Resistive Touch Panel PC with i7-10510U | ITD24PPCT1B- i7-10510U | ||||||||||||||||||||||||||||||||||||
