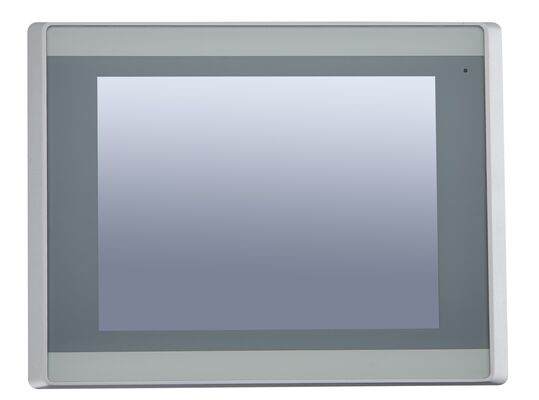

8'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|

  • 8'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU|
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD08PPCT5B-xxxxx_V2
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T, PayPal
Product Details
Highlight

8-inch rugged fanless panel PC

,

HD all-in-one touchscreen PC

,

i7-1355U panel PC with PCAP
Leave a Message
Product Description



8'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 08'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 18'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 28'' Embedded LCD Rugged HD All In One Fanless Panel PC PCAP Touchscreen with i7-1355U CPU| 3





FEATURES

◼Supports Intel® J1900/J6412/N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors

◼1× SODIMM Memory Slot, Ma×.16GB

◼LCD+HDMI+DP Dual Display/Triple Display, Sync/Async Mode

◼True Flat Surface, IP65-rated Front Panel

◼Low Power Consumption, Fanless, Die-Casting Aluminum Chassis (Intel Core Series with Fan)



SPECIFICATION

System Processor Olntel® J1900, J6412,N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7
Memory

Memory type depends on the CPU model.
HDD 1 × mSATA (J1900), 1×M.2 2280 SATA/NvME 1 × SATA( 2.5”SATA)
LAN 2 × GbE RJ452
Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 8''/4:3
Native Resolution/Colors 1024 x 768 /16.7M
Response TBrightness/Contrast 300 cd/㎡ (1000 cd/㎡optional)/700:1
Viewing Angle(Typical) -85～85°(H),-85~85° (V)
Synchronization Range Horizontal/Vertica 31.5~60.0KHz/60~75Hz
Light Source LED backlight with 30000hours’lifetime
Input / Output Serial Ports 2 x DB9 COM1&COM2,RS-232/422/485
USB Ports 1 x USB3.0, 3 x USB2.0 2 × DB-9 COM1&COM2,RS-232/485(Optional 6 × COM) 1 × Audio Line-out/Mic-in 2 × 8Ω 1W AudioAMPout(Optional) 1 × HDMI 1 × Clear CMOS
HDMI Port 1 X HDMI
AT/ATX Port 1 x AT/ATX
1 x Expansion IO 4x3-wire COM, 1 x10bit GPIO, 1x Remote switch
Audio MIC-IN, LINE-OUT
ExpansionSlot Mini-PCIe×1 Full-size, Supports WiFi/Bluetooth/4G(J1900) M.2 2230×1 (N97.J6412)
OS support Windows,Linux
Power DC 9~ 36V 2-pin Phoenix Connector
Max.Resolution 1024x768
Operating Temperature -10℃~60℃
Storage Temperature -20℃~70℃
Relative Humidity 10~90% @30°C, non-condensing
