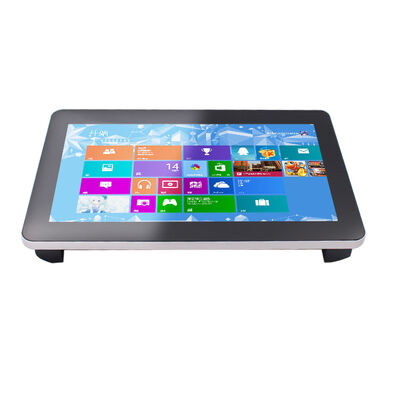

TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance

  • TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD13PPCT5Kxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 10 working days
Payment Terms T/T,PayPal
Supply Ability 10000pcs per month
Product Details
Cell Type/Glass Surface TFT Native Resolution/ Colors 1920×1080/16.7M
Response Time 30ms Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight With 50000Hours’Lifetime Memory 2GB; 4GB,8GB Optional
Leave a Message
Product Description

The ITD 13.3” Multi-Touch HMI Comfort Zero-Bezel Fanless Panel PC is a fully integrated, high-performance solution designed for modern industrial and interactive applications. It is powered by a robust ARM-based processor or x86 Intel® CPU, combined with advanced Projected Capacitive Touch technology, all seamlessly embedded into an industrial-grade LCD panel. Designed with a fanless architecture, this panel PC ensures silent operation, reduced maintenance, and enhanced long-term reliability—making it ideal for harsh, dust-prone, and continuous-operation environments. The absence of cooling fans minimizes the risk of mechanical failure and prevents dust ingress, significantly improving system durability. Featuring a sleek, flat, and true zero-bezel front surface, the device delivers a premium aesthetic while enabling easy cleaning and superior front-panel protection. The PCAP touch technology supports precise 10-point multi-touch, ensuring smooth, intuitive, and reliable user interaction—even in demanding and complex operational scenarios. Engineered for versatility and stability, the ITD Multi-Touch HMI Comfort Fanless Panel PC is perfectly suited for a wide range of applications, including industrial automation, smart kiosks, digital signage, and IoT-based systems.



FEATURES

• True Flat, Zero-Bezel Front Design – Easy-to-clean seamless surface eliminates dust and debris accumulation around edges and corners, ensuring hygienic and low-maintenance operation

• Industrial-Grade Reliability for HMI/SCADA – Flexible, open-platform architecture supports a wide range of industrial applications with stable and long-term performance

• Advanced 10-Point PCAP Multi-Touch – Highly responsive and precise touch performance with support for light-touch operation, enabling smooth and intuitive user interaction

• Optimized Power Efficiency – Fanless architecture combined with energy-efficient design reduces power consumption while maintaining stable performance, making it ideal for continuous 24/7 operation https://www.itd-tech.com

• Front Panel IP65 / NEMA 4 Protection – Robust sealed front design protects against water, dust, and harsh environmental conditions

• Rugged Aluminum Frame & Steel Rear Housing – Precision aluminum framing provides structural reinforcement along the edges, while the robust steel rear housing ensures excellent strength, heat dissipation, and long-lasting reliability in demanding industrial environment

• Flexible Customization Options – Supports various configurations, including CPU platforms, interfaces, brightness levels, and mounting solutions to meet specific project requirements

• Compliance & Certification – CE, FCC, and RoHS certified, ensuring safety, environmental compliance, and global market acceptance



OPTIONALS



• Anti-Glare / Anti-Reflective, Anti-finger, Anti-UV • Optical Bonding, High Brightness
• Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal Printer, etc. • WIFI,  4G/5G, Bluetooth, GPS
• VESA Mount, Desktop Stand • DC 24V, DC9-36V, AC100-240V,  PoE



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 13.3” /16:9
Active Area/ Pixel Pitch 293.76(H) ×165.24(V)mm/0.153 × 0.153mm
Native Resolution/ Colors 1920×1080/16.7M
Brightness/ Contrast 300cd/㎡(500~1000 cd/㎡optional)/900:1
Response Time/ Viewing Angle(Typical) 30ms/85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime



SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588/RK3576 optional) Intel® Celeron J1900/J6412 2.0GHz Intel® Core i3/i5/i7 (4th~12th Generation or newer optional)
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB/8GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB, DDR4 SODIMM×1(Intel J4125/J6412)  2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.); DDR5 (optional≥12th gen.)
Storage 8GB: 16GB/32GB/64GB Optional 1×mSATA/1×SATA/1×M.2 1×mSATA/1×SATA/1×M.2
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB
OTG(Optional); 1 × COM(Optional);
1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB
2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662
Line-Out /MIC IN





1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB
2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662
Line-Out /MIC IN


LAN 1 x 10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional)  1× 10/100/1000Mbps Ethernet( Dual LAN optional)
OS Android 7.1/8/10/11/12/13/14, etc.
Linux Ubuntu(optional) 		 Windows 7/10, Linux
Windows 11(available for J6412) 		 Windows 7/10, Linux
Windows 11(available for 8th gen)



GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 10~25W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%





TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance 0TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance 1TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance 2










TFT 13.3” Fanless Fanless Zero Bezel PCAP Touch Panel PC With CE FCC RoHS Compliance 3
