10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk

  • 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk
  • 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk
  • 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk
  • 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk
  • 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD24PPCTxB-xxxxxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T,PayPal(173515844@qq.com)
Supply Ability 10000PCS/Month
Product Details
Power Supply DC12V,DC 24V, DC9-36V, AC100-240V, PoE Brightness 350cd/㎡(500~1000cd/㎡Optional)
Operating Temperature -10~60℃(-20~70℃optional) Android Processor RK3288/RK3399/RK3568/RK3588/RK3576 Optional
Size 10.1" Native Resoltuion 1280*800
OS Android 7.1/11/12/13/14,
Leave a Message
Product Description
10.1" Fanless PCAP Touch Panel PC Industrial All-in-One Touch Kiosk
Product Overview

This industrial-grade 10.1" fanless panel PC features a true flat, zero-bezel front design with advanced 10-point PCAP multi-touch technology, making it ideal for HMI/SCADA applications and continuous 24/7 operation.

Key Features
  • True Flat, Zero-Bezel Front Design - Easy-to-clean seamless surface eliminates dust and debris accumulation around edges and corners, ensuring hygienic and low-maintenance operation
  • Industrial-Grade Reliability for HMI/SCADA - Flexible, open-platform architecture supports a wide range of industrial applications with stable and long-term performance
  • Advanced 10-Point PCAP Multi-Touch - Highly responsive and precise touch performance with support for light-touch operation, enabling smooth and intuitive user interaction
  • Optimized Power Efficiency - Fanless architecture combined with energy-efficient design reduces power consumption while maintaining stable performance, making it ideal for continuous 24/7 operation
Optional Features
  • DC 24V, DC9-36V, AC100-240V, PoE
  • High Brightness, Optical Bonding
  • Anti-glare, Anti-reflective, Anti-finger, Anti-UV
  • WIFI, 4G/5G, Bluetooth, GPS
  • Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal Printer, etc.
  • VESA Mount, Desktop Stand
Display Specifications
Parameter Specification
Panel TFT
Cell Type/Glass Surface TFT
Size/Aspect Ratio 10.1"/16:10
Active Area/Pixel Pitch 216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
Native Resolution/Colors 1280×800(1920×1200 optional)/16.7M
Brightness/Contrast 350cd/㎡(500~1000cd/㎡Optional)/800:1
Response Time/Viewing Angle (Typical) 25ms/85/85/85/85
Light Source LED Backlight with 30000 Hours Lifetime
System Specifications
Parameter Specification
Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~35W
Operating Temperature -10~60℃(-20~70℃optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%(non-condensing)
Order Information
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch Android OS/ITD101PPCT5KEx
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch J1900/ITD101PPCT5KJ1
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch J6412/ITD101PPCT5KJ6
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch i3/ITD101PPCT5KI3
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch i5/ITD101PPCT5KI5
  • 10.1" Fanless Zero Bezel Panel PC with PCAP Touch i7/ITD101PPCT5KI7
  • 10.1" Fanless Zero Bezel Panel PC with Tempered Glass No Touch /ITD101PPCG1Kxx
  • 10.1" 1000nits Fanless Zero Bezel Panel PC with PCAP Touch/ITD101PPCT5HBKxx
  • 10.1" 1000nits Fanless Zero Bezel Panel PC with Tempered Glass No Touch /ITD101PPCG1HBKxx
Product Images

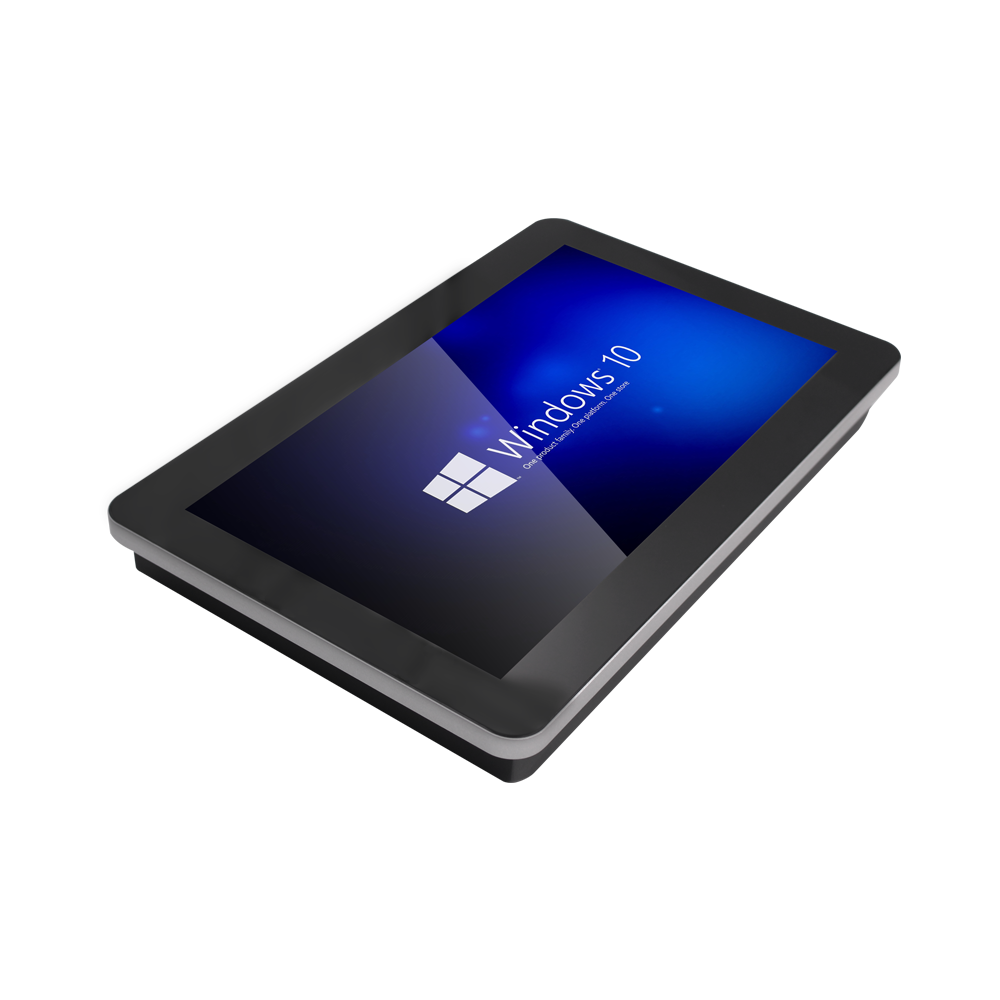

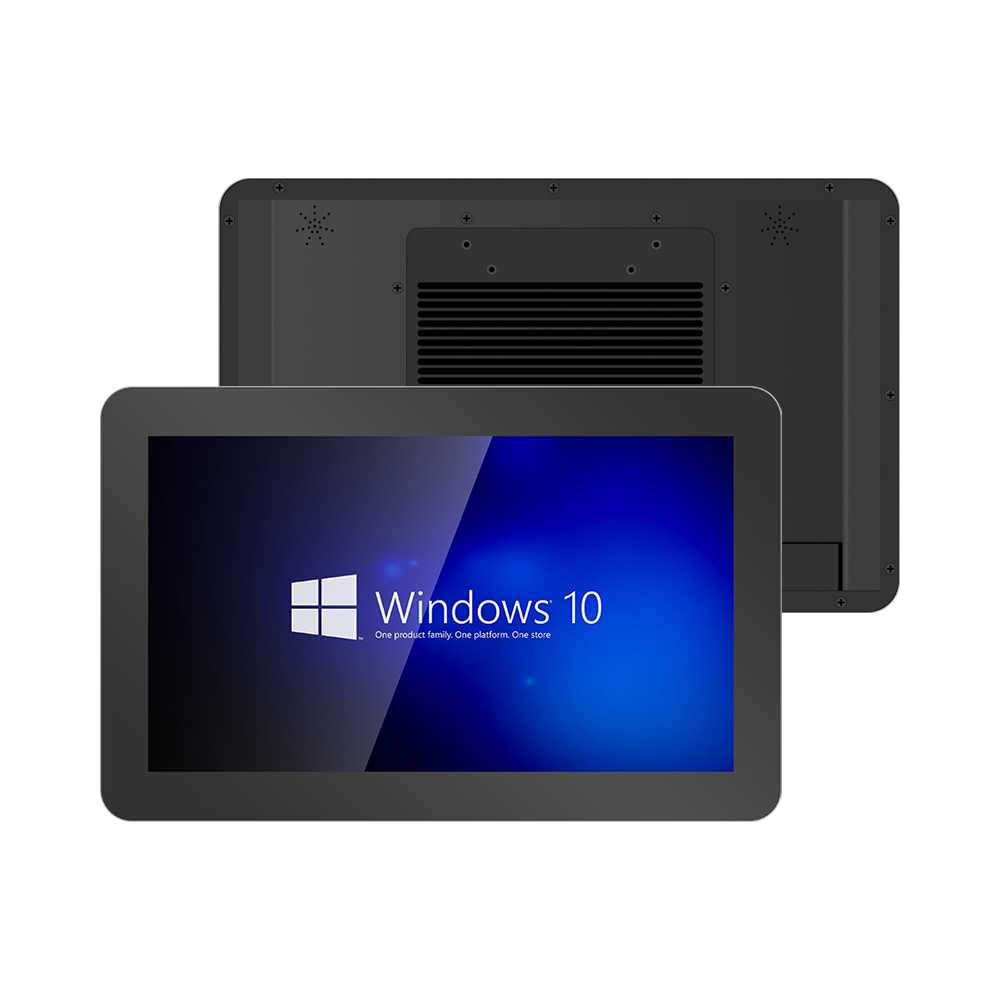

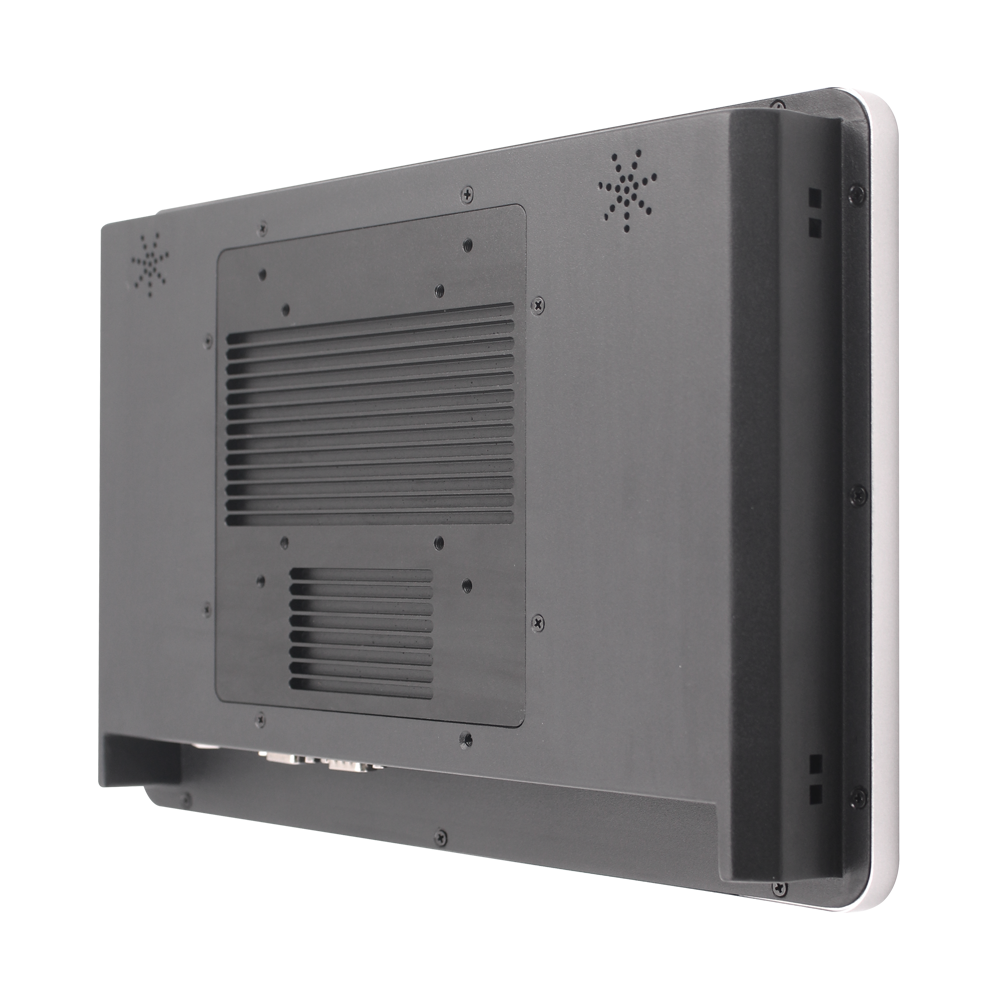

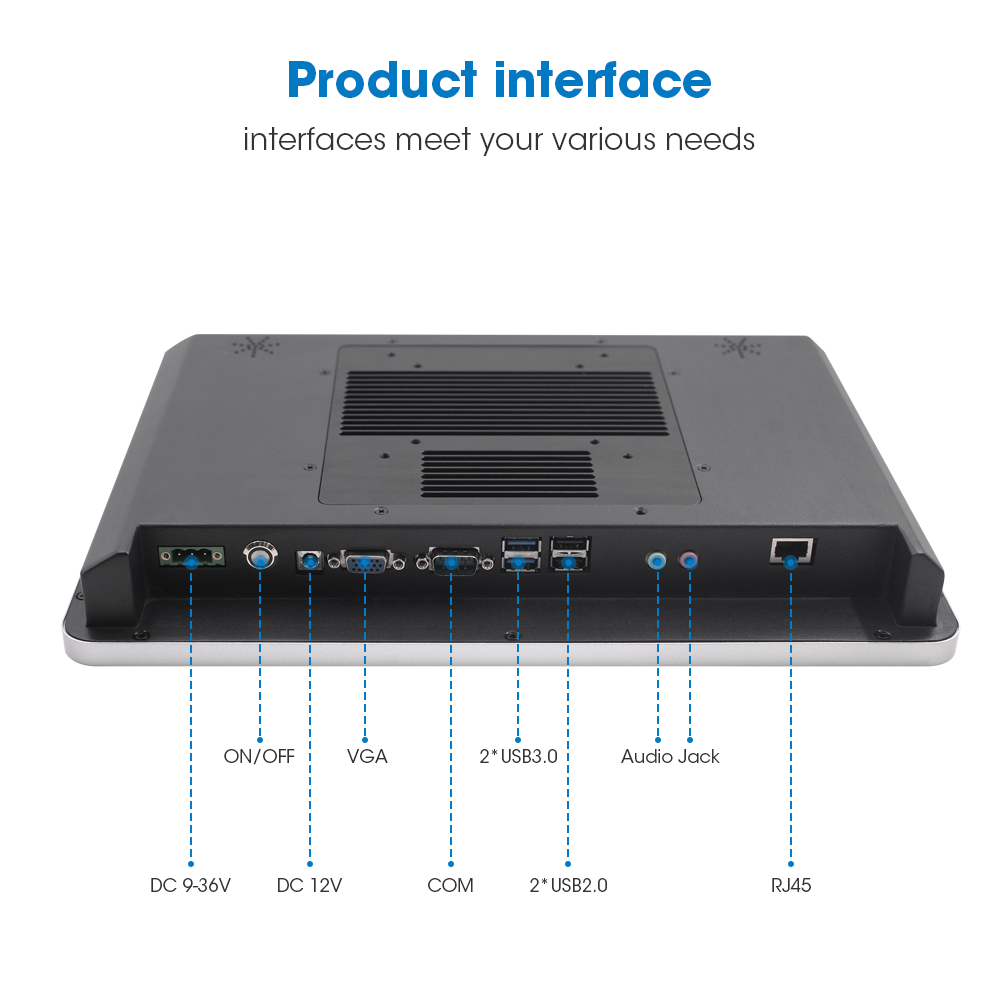

10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk 0 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk 1 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk 2 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk 3 10.1" Fanless Pcap Touch Panel PC Industrial All-in-one Touch Kiosk 4
