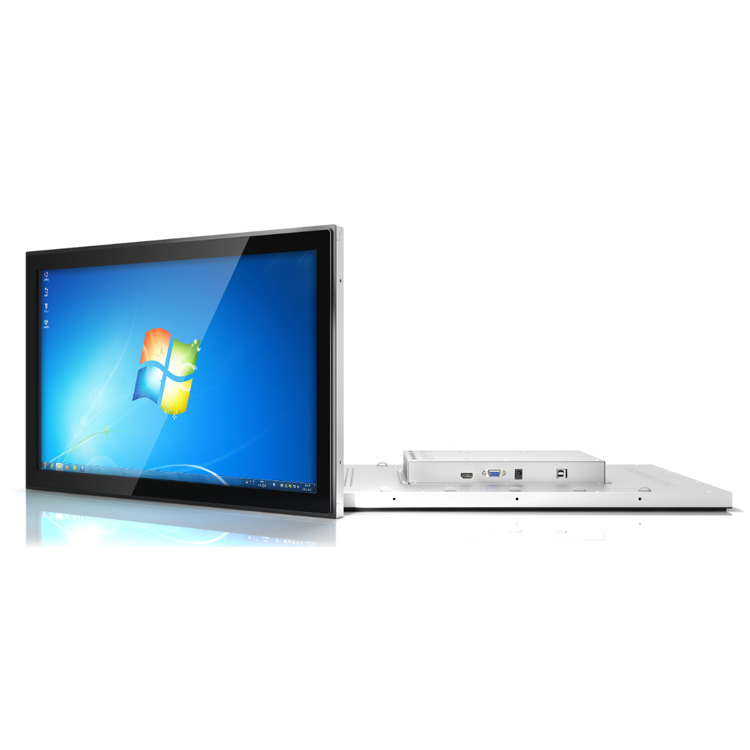

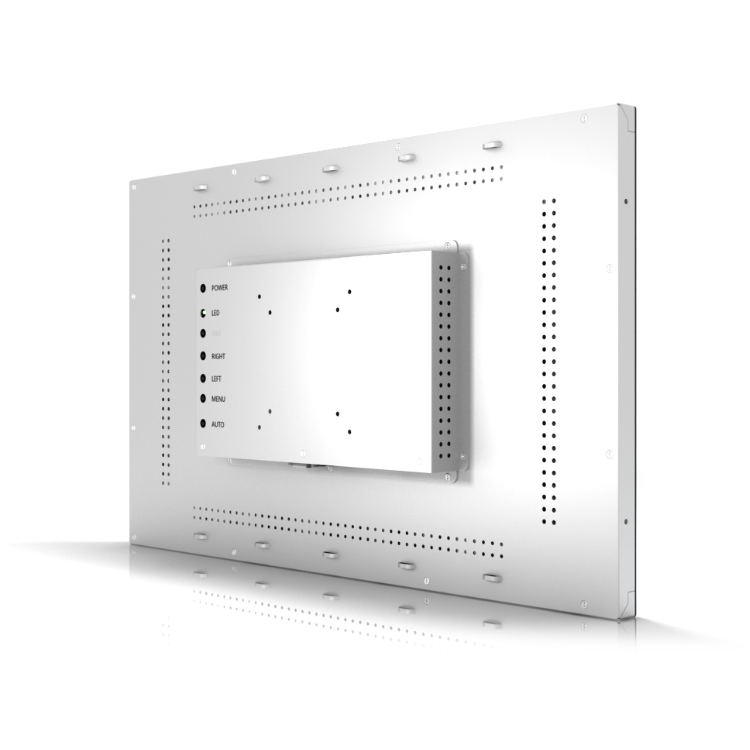

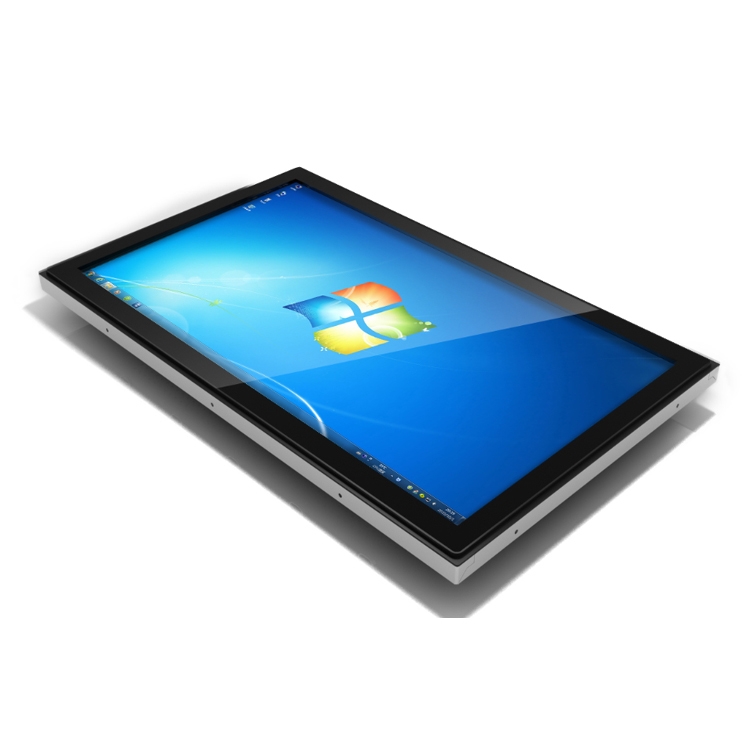

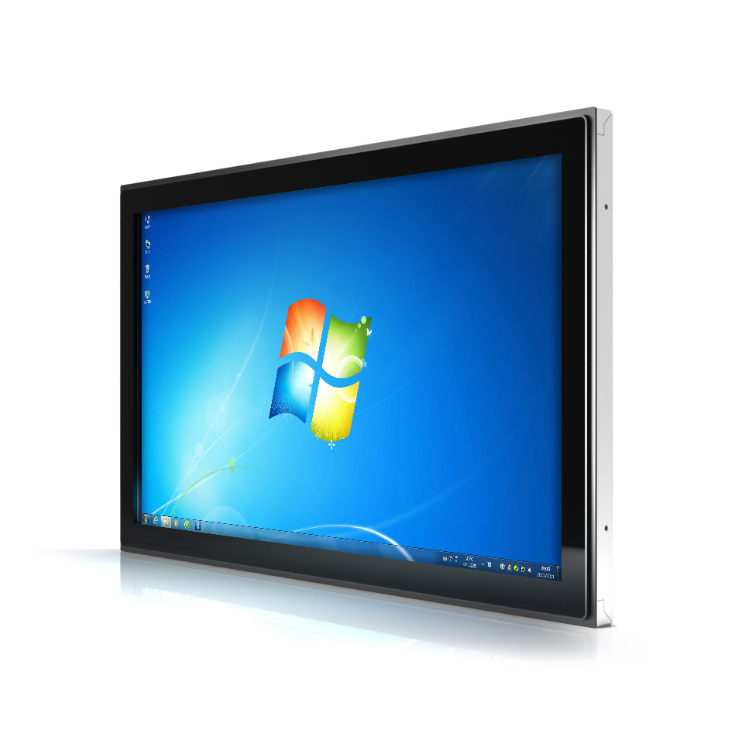

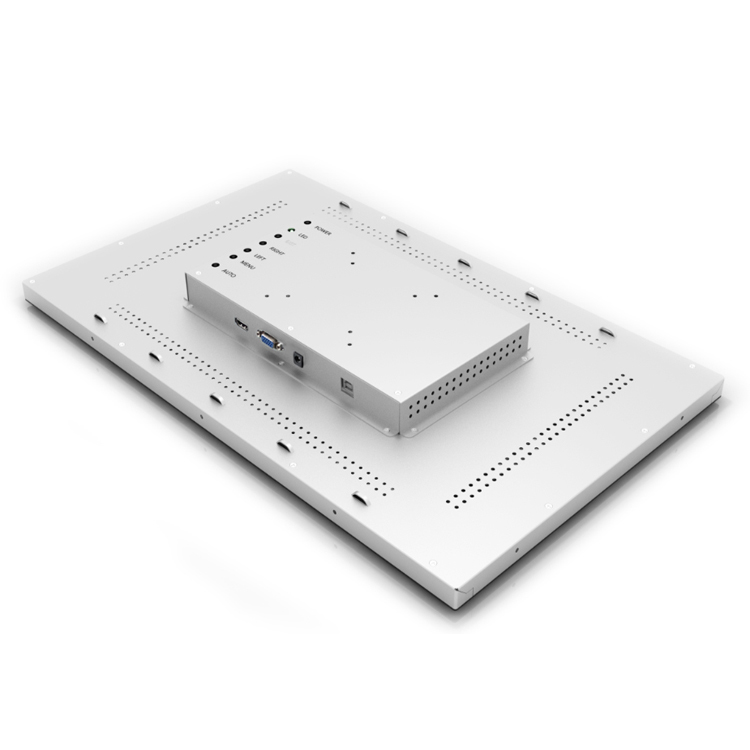

Pure Flat Surface 21.5" Flush Mount Monitor Capacitive Touch Screen
Product Details
| Power | DC12V, DC9-36V | Touch Panel | Multi 10 Points Pcap Touch |
|---|---|---|---|
| Video Input | VGA/HDMI | Touch Interface | USB Type |
| Output | 12V DC /4A | IP Rating | IP65 Front |
| Cutout Dimensions | 527.4×314.40mm | Gross Weight | 5.96kg |
Product Description
Pure Flat Surface 21.5" Flush Mount Monitor Capacitive Touch Screen
Product Overview
This 21.5-inch flush mount monitor features a pure flat surface design with advanced capacitive touch screen technology, providing seamless integration and superior touch performance for industrial and commercial applications.
Key Features
- 21.5-inch pure flat surface display
- Flush mount design for seamless integration
- Advanced capacitive touch technology
- High durability for industrial environments
- Excellent optical clarity and touch responsiveness
|
Model |
ITD21OFT5Y1 |
|
IP |
IP65(for front panel only) |
|
Cutout Dimensions |
527.4×314.40mm |
|
Weight(N.W/G.W) |
5.96kg |
|
Packing Dimension |
660.0×190.0×420.0mm |
|
LCD Type |
21.5＂Active matrix TFT-LCD |
|
Video Input |
VGA/HDMI (DVI, DP, etc. optional) |
|
Recommend Resolution |
1920×1080@60Hz,75Hz |
|
OSD controls |
Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
Power Input |
DC 12V (DC9~36V input, AC110~240V input optional) |
|
Power Consumption |
16W |
|
Mount Interface |
1)VESA 75mm and 100mm 2)Rear Mounting Brackets |
|
Regular Warranty |
2 Years |
|
Agency Approval |
FCC, CE, RoHS Certified |
|
Model |
ITD21OFT5Y1 |
|
IP |
IP65(for front panel only) |
|
Cutout Dimensions |
527.4×314.40mm |
|
Weight(N.W/G.W) |
5.96kg |
|
Packing Dimension |
660.0×190.0×420.0mm |
|
LCD Type |
21.5＂Active matrix TFT-LCD |
|
Video Input |
VGA/HDMI (DVI, DP, etc. optional) |
|
Recommend Resolution |
1920×1080@60Hz,75Hz |
|
OSD controls |
Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
Power Input |
DC 12V (DC9~36V input, AC110~240V input optional) |
|
Power Consumption |
16W |
|
Mount Interface |
1)VESA 75mm and 100mm 2)Rear Mounting Brackets |
|
Regular Warranty |
2 Years |
|
Agency Approval |
FCC, CE, RoHS Certified |
