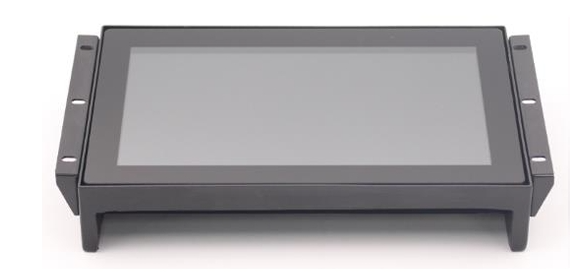

TFT 7” Open Frame High Brightness In One PCAP Touch Android OS

  • TFT 7” Open Frame High Brightness In One PCAP Touch Android OS
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD07PPCxxFxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 10 working days
Payment Terms T/T,PayPal
Supply Ability 10000pcs per month
Product Details
Cell Type/Glass Surface TFT Native Resolution/ Colors 1024 X 600/16.2M
Response Time 10/15ms Viewing Angle(Typical) 75/75/70/75
Light Source LED Backlight With 50000Hours’Lifetime Memory 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th Gen.)
Highlight

7 inch TFT open frame touch panel

,

high brightness PCAP touch screen

,

Android OS touch panel PC
Leave a Message
Product Description

ITD HMI comfort open frame panel PC is fully-integrated‚ combines high-performance ARM based or x86 based PC system, and optional touchscreen integrated in industrial-grade LCD flat panels, with sleek and open frame chassis industrial design. This open frame panel PC series with bezel-less display provides design flexibility for customers without any limitation, which can be easily installed in any enclosures.



FEATURES

• Open platform enables Machine-to-Machine (M2M) andInternet of Things (IoT) applications computers for open platform HMI/SCADA

•Long lasting product cycle for continuity thru allphases of project rollouts and servicing

•Steel construction for harsh and industrialenvironments

•Easy to install Open Frame chassis mount display

•Multiple mounting options: 75 x 75 mm VESA mount and side brackets

• Provides improved power efficiency and reduced consumption

• CE, FCC, RoHS Compliance



OPTIONALS



• DC 24V, DC9-36V, AC100-240V • High Brightness, Optical Bonding
• PCAP Touch Screen, AR/AG/AF Tempered Glass, IP65 Front • WIFI,  4G/5G, Bluetooth, GPS
• Speakers  • Fan-less



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 7”/16:9
Active Area/ Pixel Pitch 154.214(W) x 85.49(H)mm/0.150 × 0.150mm
Native Resolution/ Colors 1024 x 600/262K/16.7M
Brightness/ Contrast 500cd/㎡(1000cd/㎡optional)/800:1
Response Time/ Viewing Angle(Typical) 10/15ms/75/75/70/75
Light Source LED Backlight with 50000 Hours’Lifetime



SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel® Celeron J1900/J4125/J6412 2.0GHz Intel® Core i3/i5/i7 (4th~12th Generation optional)
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB/8GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.)
Storage 8GB; 16GB/32GB/64GB/128G Optional 1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD  1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB
OTG(Optional); 1 × COM(Optional);
1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN





1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN


LAN 1 x 10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional)  1× 10/100/1000Mbps Ethernet( Dual LAN optional)
OS Android 7.1/8/10/11/12/13/14, etc.
Linux Ubuntu(optional) 		 Wins 7/10, Linux
Wins 11(available for J4125/J6412) 		 Wins 7/10, Linux
Wins 11(available for 7th gen. or above)



GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 10~25W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%
