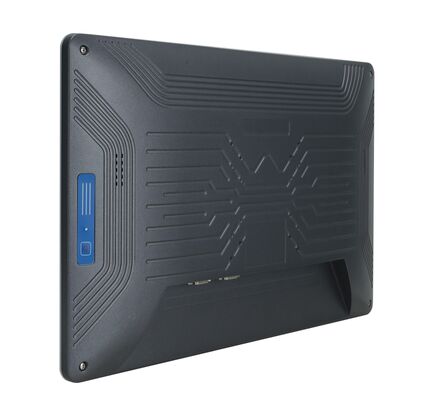

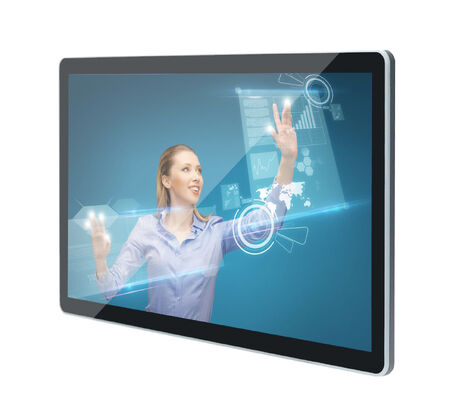

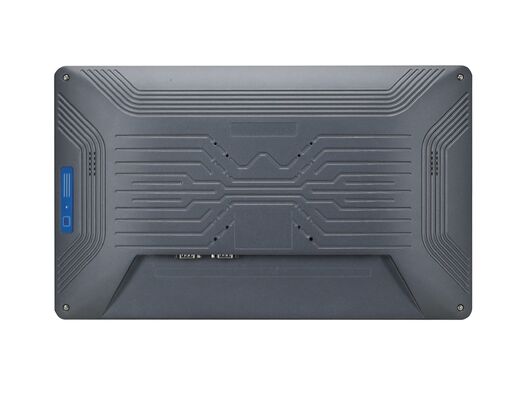

18.5" industrial pcap touch panel PC with LED light frame indicator IP65 front
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD18PPCT5KE3-DC |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T,PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Product Details
| Active Area | 408.96(H) × 230.04(V)mm/0.213 × 0.213mm | Brightness | 300 Nits |
|---|---|---|---|
| CPU | RK3399,RK3568,RK3588, Intel N100 | Power Input | DC12V |
| Memory | 2GB,4GB,8GB,16GB | Storage | 8GB~64GB |
| Highlight | 18.5 inch industrial touch panel PC,IP65 rated pcap touch panel PC,LED light frame touch panel PC |
||
Product Description
18.5" industrial pcap touch panel PC with LED light frame indicator IP65 front
ITD’s Zero-Bezel LED-Framed PCAP Touch Panel PC is a sleek and durable industrial computing solution designed for seamless integration across various applications. Featuring a true flat, zero-bezel design, it enhances usability while offering multi-touch capacitive touch technology for a smooth and responsive user experience. This high-performance touch panel PC is available with optional ARM-based or x86-based Intel processors, catering to different computing requirements, from energy-efficient edge computing to high-performance industrial automation. Its LED-framed design not only adds a modern aesthetic but also improves visibility in low-light environments. Built for industrial environments, it boasts rugged construction, IP-rated front panel protection, and fanless cooling, ensuring reliable performance in harsh conditions. Whether deployed in factory automation, kiosks, medical devices, or retail, ITD’s Zero-Bezel PCAP Touch Panel PC delivers the perfect combination of durability, efficiency, and cutting-edge touch technology.
SPECIFICATION of 18.5" Industrial Panel PC
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 18.5”/16:9 | |
| Active Area/ Pixel Pitch | 408.96(H) × 230.04(V)mm/0.213 × 0.213mm | |
| Native Resolution/ Colors | 1920×1080/16.7M | |
| Brightness/ Contrast | 300cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/85/85/85/85 | |
| Light Source | LED Backlight with 30000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® N100 |
| Chipset | Rockchip | Intel SoC |
| Memory | 2GB; 4GB/8GB Optional | DDR4 SODIMM×1, Max.16GB |
| Storage | 8GB; 16GB/32GB/64GB/128G Optional | 1×mSATA, 1×SATA; Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel UHD Graphics (By CPU) |
| I/O |
1 × HDMI Output; 2 × USB; 1 ×Type C; 1 × COM, 1 × TF Card Slot; 1 × Audio IN/OUT 1 × DC Jack |
1 × HDMI Output; 3 × USB 3.0; 1 × Type C 1 × Audio IN/OUT 1 × Power Switch, 1 × DC Jack |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet |
| OS | Android 7.1/8/10/11/12/14, etc | Win10/11/Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 18~25W | |
| Environment Considerations | Operating Temperature | -10~50℃ |
| Storage Temperature | -20~60℃ | |
| Relative Operating Humidity | 10%~80%(Non-Condensing) | |
| Relative Storage Humidity | 10%~85%(Non-Condensing) |
