Industrial Flat Screen 24" View Durable Industrial Tactile Monitor Touch Screen
Product Details
| Power | DC12V, DC9-36V | Touch Panel | Multi 10 Points Pcap Touch |
|---|---|---|---|
| Video Input | VGA/HDMI/DVI | Touch Interface | USB Type |
| Output | 12V DC /4A | IP Rating | IP65 Front |
| Active Area | 527.04(W)×296.46(H) Mm | Brightness | 250nits (500nits~1500nits Optional)/1000:1 |
| Highlight | 24 inch industrial touch screen monitor,durable industrial LCD monitor,tactile flat screen industrial monitor |
||
Product Description
Industrial Flat Screen 24" View Durable Industrial Tactile Monitor Touch Screen
Product Overview
ITD 23.8” PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design engineered for durability and resilience in demanding environments. It is equipped with physically toughened glass, making it vandal-proof, anti-scratch, and impact-resistant. This ensures reliable performance and longevity, even in high-traffic or challenging settings, providing peace of mind for users and operators alike.
Key Features
• High-contrast TFT LCD display with resolutions up to 1920×1080
• DDC 1/2B support for seamless Plug & Play compatibility
• Advanced OSD controls for precise picture quality adjustment
• Aluminum frame and steel rear chassis with a true-flat front surface, easy to clean with zero bezel design
• 10-point simultaneous PCT/PCAP multi-touch sensor
• Certified: CE, FCC, and RoHS compliant
Specifications:
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 23.8” 16:9 | |
| Active Area/Pixel Pitch | 527.04(W)×296.46(H) mm/0.2745×0.2745mm | |
| Native Resolution/Colors | 1920×1080/16.7M | |
| Brightness/Contrast | 250nits (500nits~1500nits optional)/1000:1 | |
| Response Time/ Viewing Angle | 14ms/89/89/89/89 | |
| Light Source | LED Backlight with 30000Hours’Lifetime | |
| Input Signals | VGA, DVI, HDMI | |
| Touch Panel | Projected Capacitive Touch Panel with Anti-Vandalism & Scratch, USB Port | |
| Power Source | External Power Supply with Universal/Auto-Sensing, DC 12V Input | |
| Power Consumption | Operation/Power Saving | Below 25W |
| Environmental Condition | Operating Temperature Range: -10~60℃(-20~70℃ optional) | |
| Storage Temperature Range: -20~70℃ | ||
| Operating Humidity: 10%~90% (non-condensing) | ||
| Key Control | Power on/off with LED, Menu, Select, Adjustment (Right/Left) | |
| Order Information | 23.8” Zero-Bezel Monitor with Tempered Glass without Touch/ITD24OFG1K1 | |
| 23.8” Zero-Bezel Monitor with PCAP Touch/ITD24OFT5K1 | ||

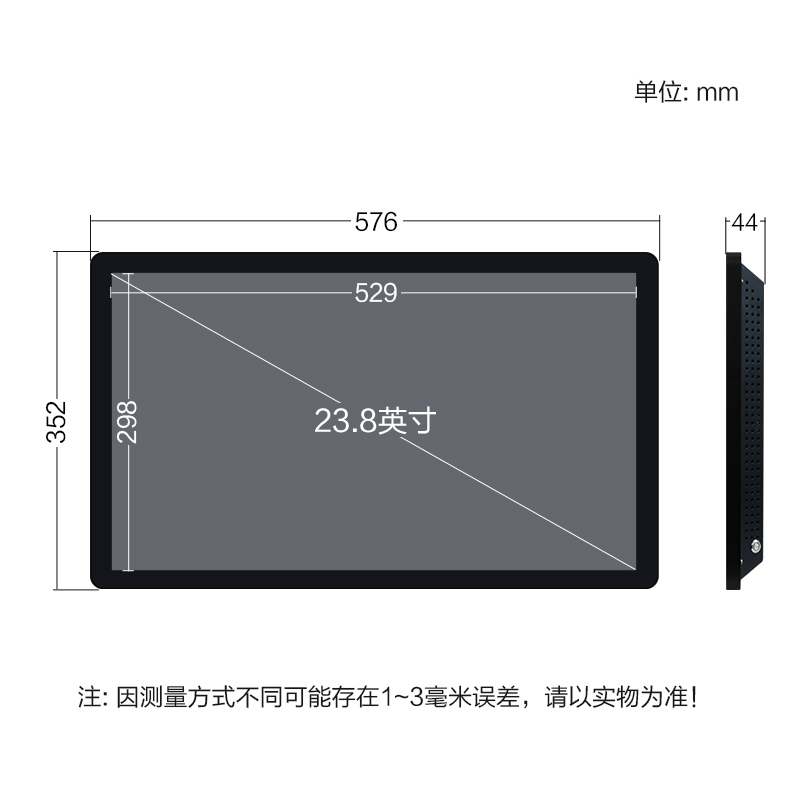

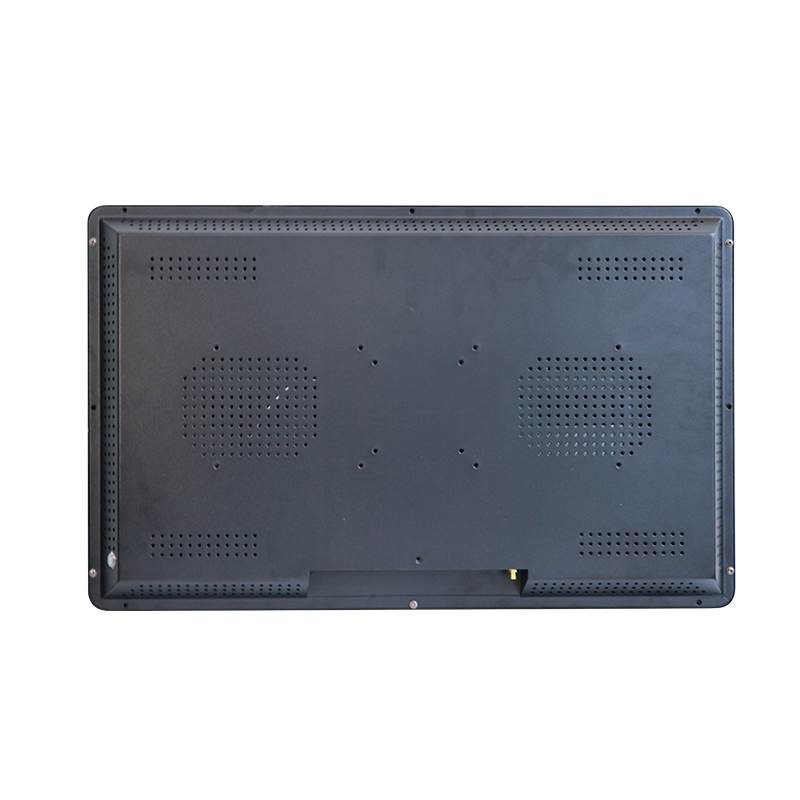

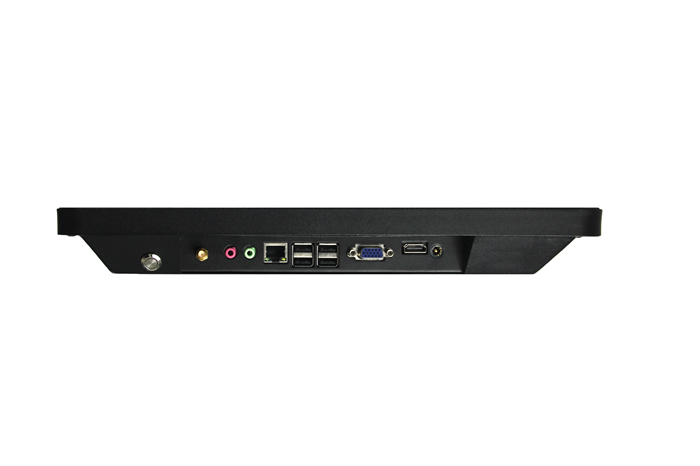

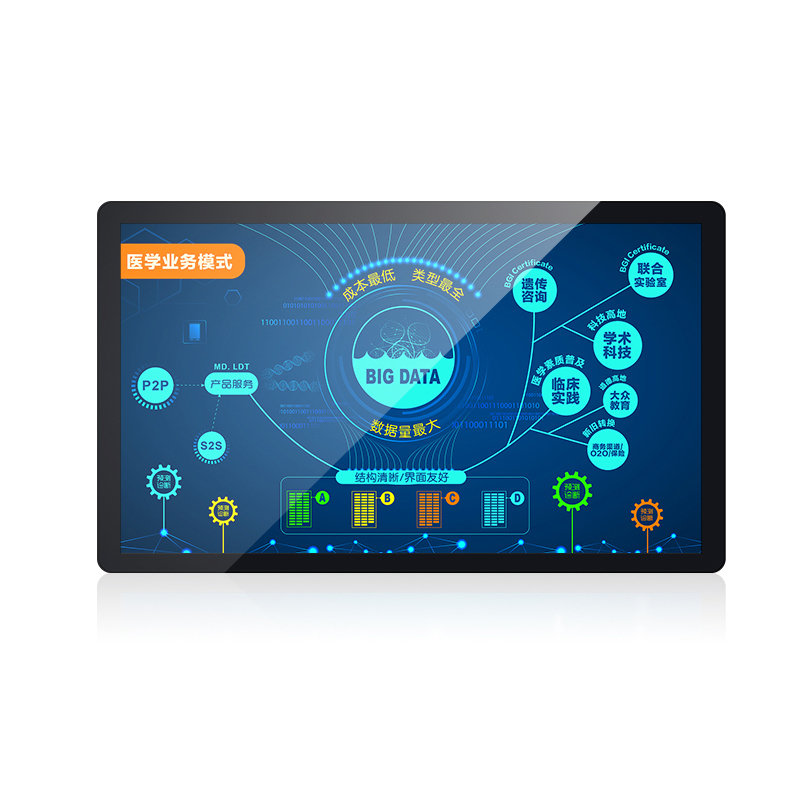

Product Image:
