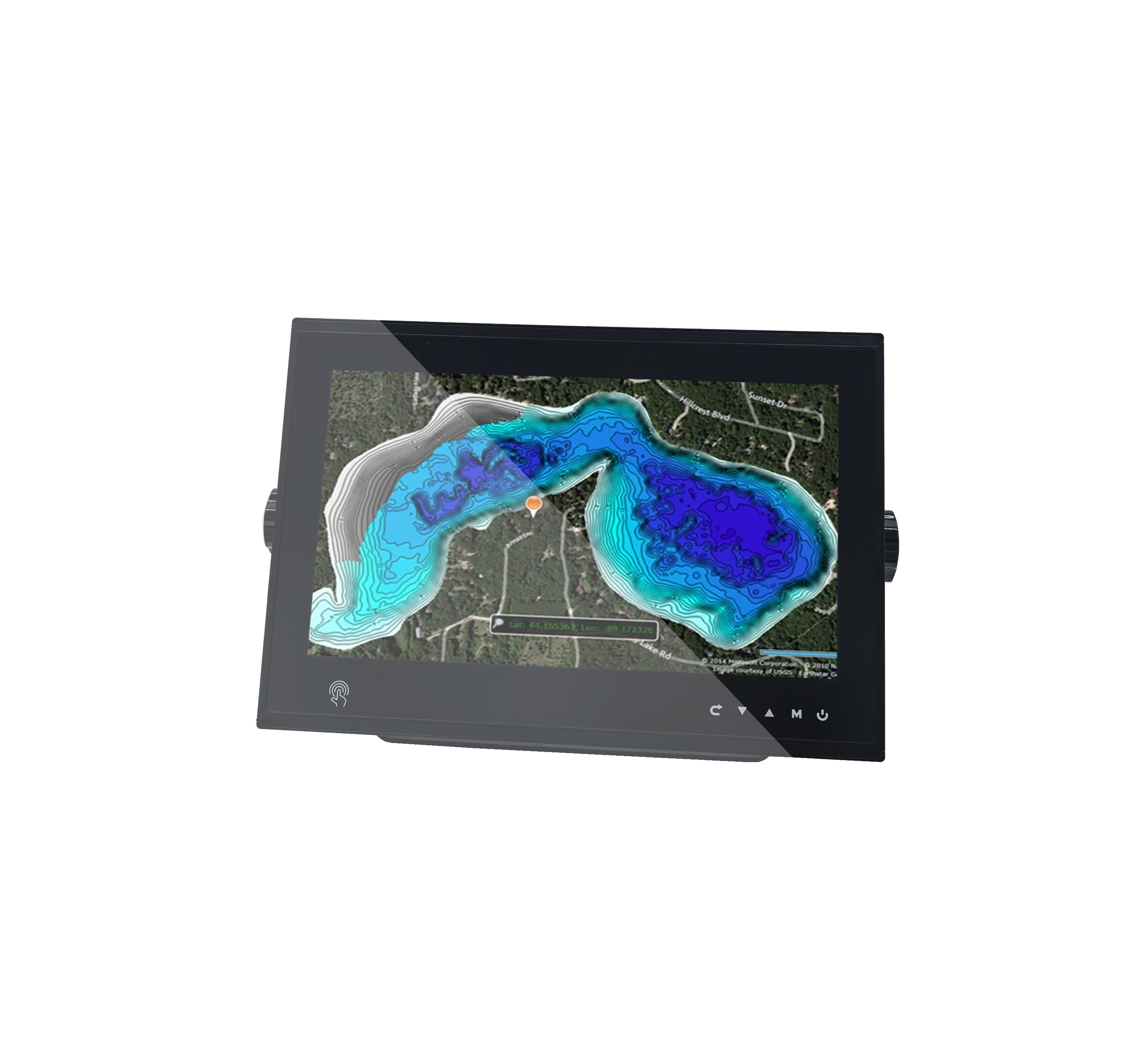

12.1'' LCD Panel Marine Fishfinder Display IP67 Waterproof Touch Fishing Monitor

  • 12.1'' LCD Panel Marine Fishfinder Display IP67 Waterproof Touch Fishing Monitor
  • 12.1'' LCD Panel Marine Fishfinder Display IP67 Waterproof Touch Fishing Monitor
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD12CMT5HBIPR2W
Document 15.6inch Rugged Sunlight Re...R1.pdf
Minimum Order Quantity 1PCS
Price TBA
Payment Terms T/T, PayPal(173515844@qq.com)
Product Details
Input Port HDMI Input (Waterproof M12 Connector) LCD Panel 12.1' LCD Panel
Power Connector DC 9~36V(Isolated DC-DC Voltage Regulator Built-in)/Waterproof M12 Connector
Highlight

12.1'' LCD marine fishfinder display

,

IP67 waterproof fishing monitor

,

touch screen industrial LCD monitor
Leave a Message
Product Description

INTRODUCTION:



Designed specifically for marine environments, ITD's 12.1” rugged display offers high-resolution, sunlight-readable screen with optically bonded advanced touch functionality. The fully sealed IP66/67 waterproof monitor provides crystal-clear imaging, and is readable with polarized glasses. Equipped with customizable interfaces, wide viewing angles, and anti-shock & vibration, ITD's rugged displays ensure reliability and performance even in very challenging conditions.







Feature:

•Equipped with Sunlight Readable LCD and readable with polarized sunglasses

•Rugged fan-less whole die-casting aluminum alloy enclosure with heatsink, flat surface with easy-to-clean

•IP66/67 fully sealed, with anti-corrosive rubber providing 360-degree protection

•10 points PCAP touch screen with anti-glare treatment and touch on/off control

•OSD menu board is fully integrated into the PCAP touch panel, allowing users to access and control all display settings directly through the touch interface

•Featuring Optical bonding with UV-resistant included in the bonding material

•Shock resistance up to 20G for enhanced durability and reliable performance in harsh marine environments

•CE, FCC, RoHS Compliance



OPTIONAL:

•Yoke Mount, Panel Mounting Clips

•Customer’s LOGO Printing

Specification

 Screen Parameters

Screen Type TFT
Size 12.1inch (16:10)
Display size 258.048(H) ×161.28(V)mm
Resolution 1920×1200
Brightness 1000cd/㎡
Contrast Ratio 800:1
Response time 30ms
Number of colours 16.7M
View Angle 80/80/80/80
Life Time >50000 Hr
Input Signals HDMI input (Waterproof M12 Connector)
Convenient Features Menu Adjustment, Touch on/off, Volume Control
Power Source DC 9~36V(Isolated DC-DC Voltage Regulator Built-in)/Waterproof M12 Connector
Power Consumption Operation/Power Saving:Below 45W
Touch Panel Projected Capacitive Touch Panel with 10 Multi Touch Points
  Micro USB Port(M12 Connector)

Key Control Power on/off with LED, Menu, Select, Adjustment
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Relative Humidity 10%~90%(Non-Condensing)
Accessories 1×6m Power Cable, 1×6m Micro USB Cable, 1×6m HDMI Cable







12.1'' LCD Panel Marine Fishfinder Display IP67 Waterproof Touch Fishing Monitor12.1'' LCD Panel Marine Fishfinder Display IP67 Waterproof Touch Fishing Monitor
