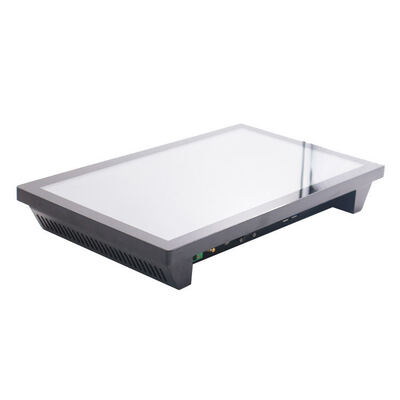

23.8 Inch Fanless Zero Bezel PCAP Touch Panel PC, IP65 Front Panel All-in-One Industrial Touch Computer
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD24PPCT5K* |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T,PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Product Details
| Viewing Angles | 89/89/89/89 | Brightness | 300cd/㎡(500~1000 Cd/㎡optional) |
|---|---|---|---|
| ARM Solution | ARM Quad Core Cortex-A17 RK3288, (RK3399/RK3568/RK3588/RK3576) | X86 Solution 1 | Intel Celeron J1900/J6412/J4125 |
| X86 Solution 2 | Intel Core I3/i5/i7 (4th~12th Generation Or Newer Optional) | Power Input | DC12V |
| Operating Temperature | 10~60°C(-20~70°C Optional) | Packaging | Corrugated Carton |
| Highlight | 23.8 inch fanless touch panel PC,IP65 front panel industrial touch computer,zero bezel PCAP all-in-one PC |
||
Product Description
23.8 Inch Fanless Zero Bezel PCAP Touch Panel PC, IP65 Front Panel All-in-One Industrial Touch Computer
The ITD 23.8” Multi-Touch HMI Comfort Zero-Bezel Fanless Panel PC is a fully integrated, high-performance solution designed for modern industrial and interactive applications. It is powered by a robust ARM-based processor or x86 Intel® CPU, combined with advanced Projected Capacitive Touch technology, all seamlessly embedded into an industrial-grade LCD panel. Designed with a fanless architecture, this panel PC ensures silent operation, reduced maintenance, and enhanced long-term reliability—making it ideal for harsh, dust-prone, and continuous-operation environments. The absence of cooling fans minimizes the risk of mechanical failure and prevents dust ingress, significantly improving system durability. Featuring a sleek, flat, and true zero-bezel front surface, the device delivers a premium aesthetic while enabling easy cleaning and superior front-panel protection.
SPECIFICATION of 23.8" Industrial Panel PC
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 23.8”/16:9 | |
| Active Area/ Pixel Pitch | 527.04(H) ×296.46(V)mm/0.2745 × 0.2745mm | |
| Native Resolution/ Colors | 1920×1080/16.7M | |
| Brightness/ Contrast | 250cd/㎡(500~1500 cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle (Typical) | 14ms/89/89/89/89 | |
| Light Source | LED Backlight with 30000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588/RK3576 optional) | Intel® Celeron J1900/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation or newer optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.); DDR5 (optional≥12th gen.) |
| Storage | 8GB; 16GB/32GB/64GB/128G Optional | 1×mSATA/1×SATA/1×M.2 | 1×mSATA/1×SATA/1×M.2 |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| I/O |
1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet (Dual LAN optional) | 1×10/100/1000Mbps Ethernet (Dual LAN optional) |
| OS |
Android 7.1/11/12/13/14, or newer etc. Linux Ubuntu(optional) |
Win 7/10, Linux Win 11(available for J6412) |
Win 7/10, Linux Win11(available for 8th Gen. or Newer) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25~45W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(non-condensing) |

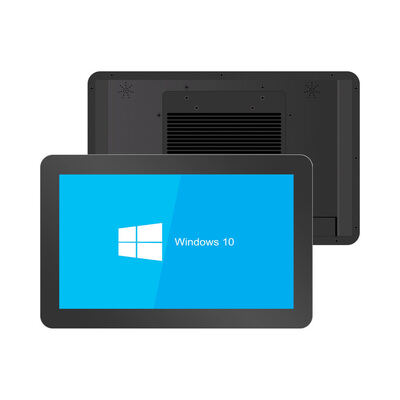

Product Image:
