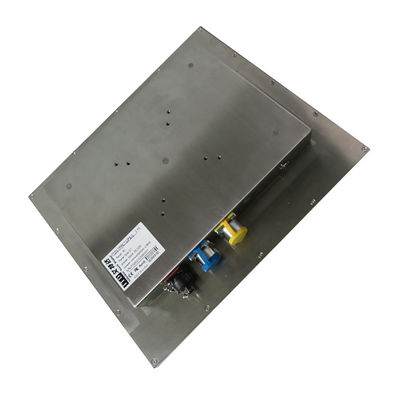

Waterproof Rugged Panel PC 250 Nits 1280x1024 Resolution With Stainless Steel Housing
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD17PPCG1IP** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory | 2GB To 8GB Optional | Display Active Screen Size | 337.920(H) X 270.336(V) Mm |
|---|---|---|---|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | View Angels | 85/85/80/80 |
| PC System Options | ARM Android Based RK3288/X86 Windows Based | IP Rating | IP65/IP66 |
| Brightness | 250 Nits | Touch Options | Resistive, PCAP |
| Resolution | 1280x1024 | ||
| High Light | rugged industrial computers,rugged industrial pc |
||
Product Description
17”Full IP65/IP66 waterproof rugged panel PC with stainless steel housing
Specifications:
|
Full IP65/IP66 Touchscreen Panel PC
|
|||
| Model Name | ITD17PPCG1IP** | ||
| IP Rating | IP65/IP66(IP67 optional) | ||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
| Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0 | |||
|
LCD Panel
|
|||
| Screen Diagonal (Inch/cm) | 17” | ||
| Display Active Screen Size (mm) | 337.920(H) x 270.336(V)mm | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 1280 x 1024 | ||
| Maximum Resolution Supported | 1920 x 1080 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 250nits | ||
| Contrast Ratio | 1000:1 | ||
| View Angels | 85/85/80/80 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, PCAP | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | Green LED | ||
| Power Input | DC12V | ||
| Power Consumption | 35W | ||
|
Order Information
|
|||
| 17”Full IP65/IP66 Panel PC with Resistive Touch, J1900 | ITD17PPCT1IPJ1 | ||
| 17”Full IP65/IP66 Panel PC with PCAP Touch, J1900 | ITD17PPCT5IPJ1 | ||
| 17”Full IP65/IP66 Panel PC with Tempered Glass, J1900 | ITD17PPCG1IPJ1 | ||
| 17”Full IP65/IP66 Panel PC with Resistive Touch, i3 | ITD17PPCT1IPI3 | ||
| 17”Full IP65/IP66 Panel PC with PCAP Touch, i3 | ITD17PPCT5IPI3 | ||
| 17”Full IP65/IP66 Panel PC with Tempered Glass, i3 | ITD17PPCG1IPI3 | ||
The rugged design of ITD industrial multi touch panel PC computers enable them to withstand and endure extreme environmental conditions such as vibration, oil, and water; without faltering or malfunctioning. Thanks to the special mounting frame, these panel PCs are easily installed into machinery, control panels and switching cabinets. These units are ideal for applications including process visualization, machine and operating data acquisition, order selection terminals, or even employee time and attendance tracking.
FEATURES
- Intel 6th Generation Core i3/i5/i7 CPU
- Sunlight Readable LCD Screen Option
- Up to 16GB with DDR4 2133MHz memory
- Fanless Die Cast Aluminum Housing with IP65 Protected Front
- Wide Range 9~36VDC Power Input Optional
APPLICATION
