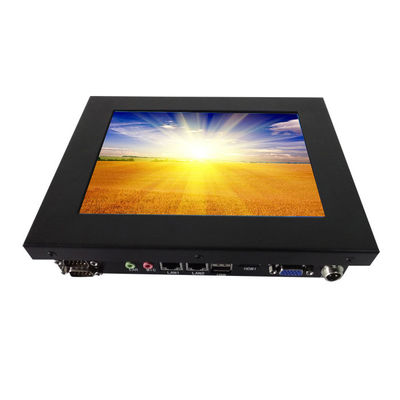

8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits

  • 8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits
  • 8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits
  • 8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PPCT1HBJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis Color Black Or Silver
Housing Type Chassis Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Brightness 1000nits
CPU J1900 Resolution 800*600
NAME IP65 Panel PC
High Light

8.4 Inch IP65 Panel PC

,

Rugged Marine Grade IP65 Panel PC

,

1000 Nits panel pc ip65
Leave a Message
Product Description

8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits

ITD IP65 PANELE PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors.

BENEFITES of IP65 PANELE PC

-8.4" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

-High-Luminance Solid-State LED-enhanced Backlighting

-Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

-Intel Celeron 2 GHz Quad Core Processor

-4GB, Max.8G System Memory

-500GB HDD or 126GB SSD, Bigger Capacity Optional

-NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

-Resistive Touch Screen Standard (PCAP, IR Touch Optional)

-Energy Efficient, Low Power Consumption

-High Environmental Performance and Reliability

-SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

-Wide Operational Temperature Range, -10°C to +60°C



Chassis High Brightness Panel PC
Model Name ITD08PPCG1HBL**
IP Rating IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch) 8.4”
Display Active Screen Size (cm) 170.4(H)×127.8(V)
Aspect Ratio 4:3
Physical Resolution 800:600
Maximum Resolution Supported 1920×1080
Colors 262K
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 600:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options Resistive, IR, PCAP, SAW,
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation


Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported
Power
Power Indicator Green LED
Power Input DC 12V
Power Consumption 21W
Order Information
8.4”1000nits Chassis Panel PC with Resistive Touch, J1900 ITD08PPCT1HBLJ1
8.4”1000nits Chassis Panel PC with PCAP Touch, J1900 ITD08PPCT5HBLJ1
8.4”1000nits Chassis Panel PC with IR Touch, J1900 ITD08PPCT2HBLJ1
8.4”1000nits Chassis Panel PC with Tempered Glass, J1900 ITD08PPCG1HBLJ1
8.4”1000nits Chassis Panel PC with Resistive Touch, i5 ITD08PPCT1HBLI5
8.4”1000nits Chassis Panel PC with PCAP Touch, i5 ITD08PPCT5HBLI5
8.4”1000nits Chassis Panel PC with IR Touch, i5 ITD08PPCT2HBLJ1
8.4”1000nits Chassis Panel PC with Tempered Glass, i5 ITD08PPCG1HBLI5


8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits 08.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits 1


APPLICATION
8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits 2



OUR FACTORY
8.4 Inch TFT IP65 Panel PC Rugged Marine Grade High Brightness 1000 Nits 3
