J1900 CPU Waterproof Panel PC 15.6 Inch Industrie PC Touchscreen IP65

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD156PPCT1HBJ1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month
Product Details
Housing Material Steel Chassis Color Black Or Silver
Housing Type Chassis Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Brightness 1000nits
CPU J1900 Resolution 1366*768
Aspect Ratio 16:9
High Light

J1900 CPU Waterproof Panel PC

,

15.6'' Waterproof Panel PC

,

industrie pc touchscreen ip65

Leave a Message
Product Description

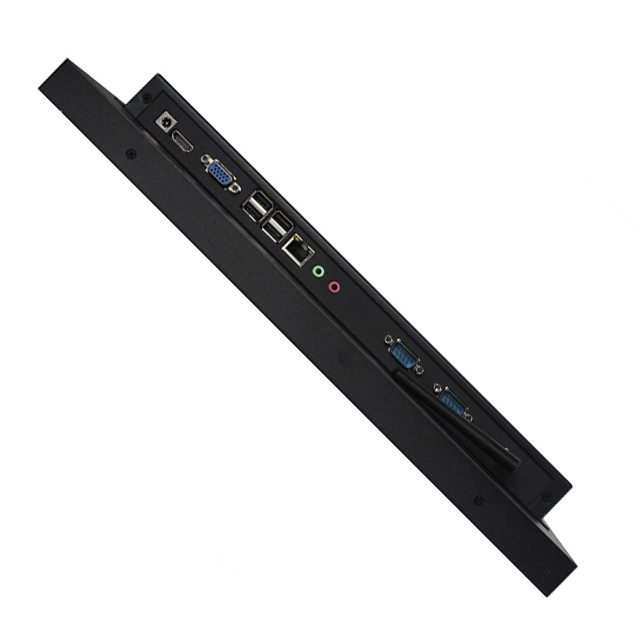

J1900 CPU Waterproof Panel PC 15.6 Inch Industrie PC Touchscreen IP65

ITD's 15.6" high bright Waterproof Panel PC's are built with industrial grade components, and integrated with the Intel Celeron Processor J1900. These sunlight readable Panel PC's are perfect for many demanding environments that require a space saving solution capable of 24/7 high performance computing. All of our panel pc bezels are gasket sealed for added NEMA and Ingress Protection

BENEFITES OF Waterproof Panel PC IP65

-15.6" Very Bright Active Matrix Sunlight Readable TFT Display; 1500 nits (cd/m2)

-High-Luminance Solid-State LED-enhanced Backlighting

-Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

-Intel Celeron 2 GHz Quad Core Processor

-4GB, Max.8G System Memory

-500GB HDD or 126GB SSD, Bigger Capacity Optional

-NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

-Resistive Touch Screen Standard (PCAP, IR Touch Optional)

-Energy Efficient, Low Power Consumption

-High Environmental Performance and Reliability

-SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

-Wide Operational Temperature Range, -10°C to +60°C



Chassis High Brightness Panel PC
Model Name ITD156PPCG1HBL**
IP Rating IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch) 15.6”
Display Active Screen Size (cm) 344.232(H)×193.536(V)
Aspect Ratio 16:9
Physical Resolution 1366×768
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 500:1
View Angels 45/45/30/20
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options Resistive, IR, PCAP, SAW,
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported
Power
Power Indicator Green LED
Power Input DC 12V
Power Consumption 21W
Order Information
15.6”1000nits Chassis Panel PC with Resistive Touch, J1900 ITD156PPCT1HBLJ1
15.6”1000nits Chassis Panel PC with PCAP Touch, J1900 ITD156PPCT5HBLJ1
15.6”1000nits Chassis Panel PC with IR Touch, J1900 ITD156PPCT2HBLJ1
15.6”1000nits Chassis Panel PC with Tempered Glass, J1900 ITD156PPCG1HBLJ1
15.6”1000nits Chassis Panel PC with Resistive Touch, i5 ITD156PPCT1HBLI5
15.6”1000nits Chassis Panel PC with PCAP Touch, i5 ITD156PPCT5HBLI5
15.6”1000nits Chassis Panel PC with IR Touch, i5 ITD156PPCT2HBLJ1
15.6”1000nits Chassis Panel PC with Tempered Glass, i5 ITD156PPCG1HBLI5
