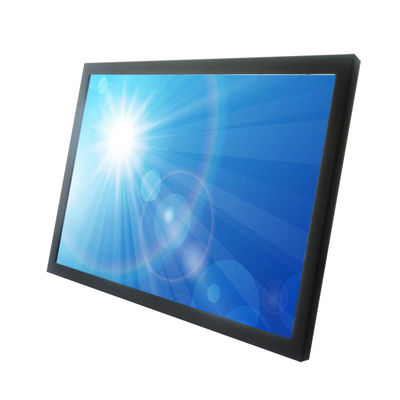

High Resolution 800x600 Waterproof Panel PC Industrial IP65 Panel Computer

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHousing Material | Steel Chassis | Color | Black Or Silver |
---|---|---|---|
Housing Type | Chassis Mount, VESA Mounting | MTBF | 50000Hours |
Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
24/7/365 Use | Supported | Resolution | 1280*1024 |
Highlight | SVGA Resolution Waterproof Panel PC,800x600 Waterproof Panel PC,Waterproof ip65 panel computer |
High Resolution 800x600 Waterproof Panel PC Industrial IP65 Panel Computer
ITD's high brightness Waterproof Panel PC's Equipped with powerful Intel Processors, deliver high performance industrial sunlight readable computing with feature rich, low-profile mechanical configurations suitable for harsh environments, and are compliant to NEMA and Ingress Protection standards for front panel.
Waterproof Panel PC BENEFITES
- 19" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)
- High-Luminance Solid-State LED-enhanced Backlighting
- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional
- Intel Celeron 2 GHz Quad Core Processor
- 4GB, Max.8G System Memory
- 500GB HDD or 126GB SSD, Bigger Capacity Optional
- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel
- Resistive Touch Screen Standard (PCAP, IR Touch Optional)
- Energy Efficient, Low Power Consumption
- High Environmental Performance and Reliability
- SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)
- Wide Operational Temperature Range, -10°C to +60°C
Chassis High Brightness Panel PC | |||
Model Name | ITD19PPCG1HBL** | ||
IP Rating | IP65 Front Panel Optional | ||
PC Systems Options | |||
ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
1×LAN | 1×LAN | 1×LAN | |
1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
LCD Panel | |||
Screen Diagonal (Inch) | 19” | ||
Display Active Screen Size (cm) | 376.3(H)×301.1(V) | ||
Aspect Ratio | 5:4 | ||
Physical Resolution | 1280×1024 | ||
Maximum Resolution Supported | 1920×1080 | ||
Colors | 16.7M | ||
Brightness (cd/m²) | 1000(1500 Optional) | ||
Contrast Ratio | 800:1 | ||
View Angels | 85/85/80/80 | ||
Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
Touch Panel | |||
Touch Options | Resistive, IR, PCAP, SAW, | ||
Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
Operation
|
|||
Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
Humidity Range (RH) | 10-90% | ||
24/7/365 Use | Supported | ||
Power | |||
Power Indicator | Green LED | ||
Power Input | DC 12V | ||
Power Consumption | 43W | ||
Order Information | |||
19”1000nits Chassis Panel PC with Resistive Touch, J1900 | ITD19PPCT1HBLJ1 | ||
19”1000nits Chassis Panel PC with PCAP Touch, J1900 | ITD19PPCT5HBLJ1 | ||
19”1000nits Chassis Panel PC with IR Touch, J1900 | ITD19PPCT2HBLJ1 | ||
19”1000nits Chassis Panel PC with Tempered Glass, J1900 | ITD19PPCG1HBLJ1 | ||
19”1000nits Chassis Panel PC with Resistive Touch, i5 | ITD19PPCT1HBLI5 | ||
19”1000nits Chassis Panel PC with PCAP Touch, i5 | ITD19PPCT5HBLI5 | ||
19”1000nits Chassis Panel PC with IR Touch, i5 | ITD19PPCT2HBLJ1 | ||
19”1000nits Chassis Panel PC with Tempered Glass, i5 | ITD19PPCG1HBLI5 |
