High Reliable 1920X1080 Waterproof Panel PC 43'' Panel Mount Touch Screen PC

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD43PPCT1HBJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Or Silver Housing Type Chassis Mount, VESA Mounting
MTBF 50000Hours 24/7/365 Use Supported
CPU J1900,i3,i5,i7 Resolution 1920*1080
Name Waterproof Panel PC
High Light

Touchscreen Waterproof Panel PC

,

1920X1080 Waterproof Panel PC

,

43'' Panel Mount Touch Screen PC

Leave a Message
Product Description

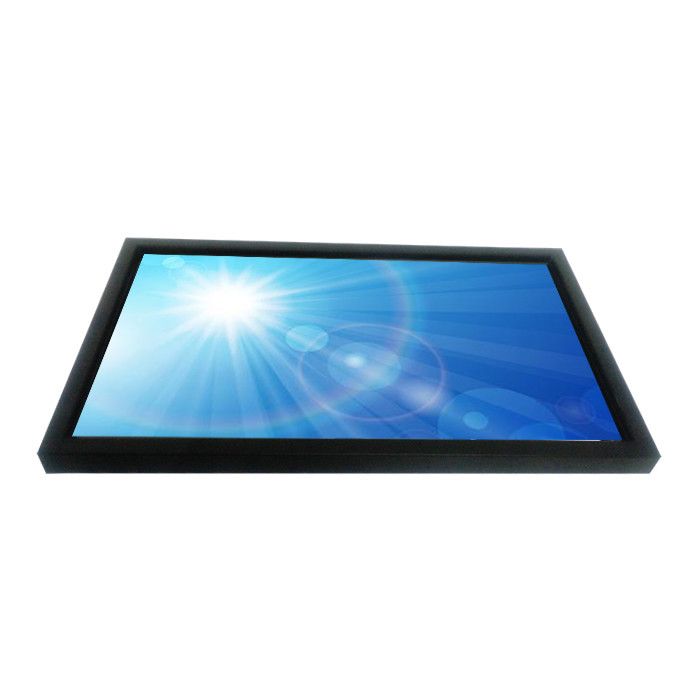

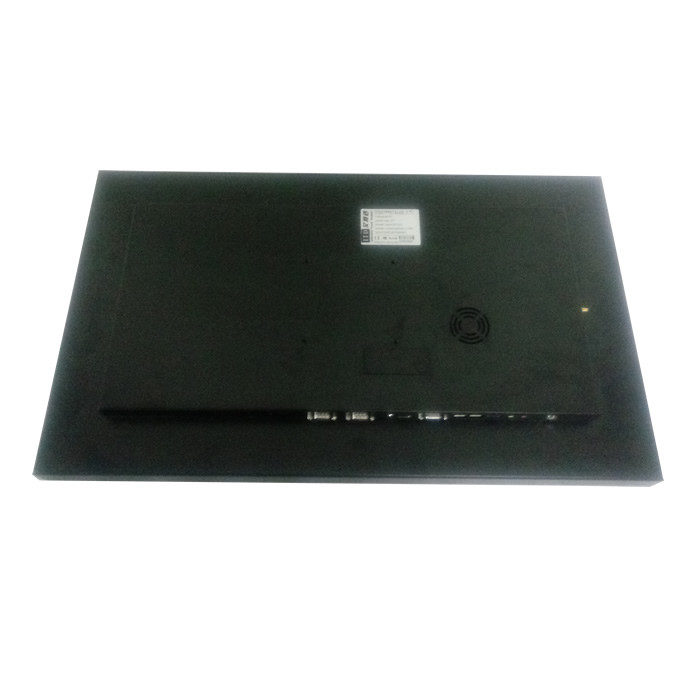

High Reliable 1920X1080 Waterproof Panel PC 43'' Panel Mount Touch Screen PC



ITD Waterproof panel PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors

Waterproof Panel PC BENEFITES



- 43" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)



- High-Luminance Solid-State LED-enhanced Backlighting



- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional



- 500GB HDD or 126GB SSD, Bigger Capacity Optional





- Energy Efficient, Low Power Consumption





- High Environmental Performance and Reliability



- Wide Operational Temperature Range, -10°C to +60°C





Chassis High Brightness Panel PC
Model Name ITD21PPCG1HBL**
IP Rating IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch) 43”
Display Active Screen Size (cm) 941.184(H)×529.416(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 1200:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options Resistive, IR, PCAP, SAW, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported
Power
Power Indicator Green LED
Power Input Internal Power Supply, AC100V~240V
Power Consumption 190W
Order Information
43”1500nits Chassis Panel PC with Resistive Touch, J1900 ITD43PPCT1HBLJ1
43”1500nits Chassis Panel PC with PCAP Touch, J1900 ITD43PPCT5HBLJ1
43”1500nits Chassis Panel PC with IR Touch, J1900 ITD43PPCT2HBLJ1
43”1500nits Chassis Panel PC with Tempered Glass, J1900 ITD43PPCG1HBLJ1
43”1500nits Chassis Panel PC with Resistive Touch, i5 ITD43PPCT1HBLI5
43”1500nits Chassis Panel PC with PCAP Touch, i5 ITD43PPCT5HBLI5
43”1500nits Chassis Panel PC with IR Touch, i5 ITD43PPCT2HBLJ1
43”1500nits Chassis Panel PC with Tempered Glass, i5 ITD43PPCG1HBLI5
