TFT Display Waterproof Panel PC Open Frame 21.5" Industrial Touch Screen PC

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD21PPCT1HBFJ1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month
Product Details
Housing Material Steel Chassis Housing Type Open Frame Mount, VESA Mounting
Name Waterproof Panel PC 24/7/365 Use Supported
CPU J1900,1037U,I3,I5,I7 Resolution 1920*1080
High Light

Waterproof Panel PC TFT Display

,

1037U CPU Waterproof Panel PC

,

21.5" Industrial Touch Screen PC

Leave a Message
Product Description

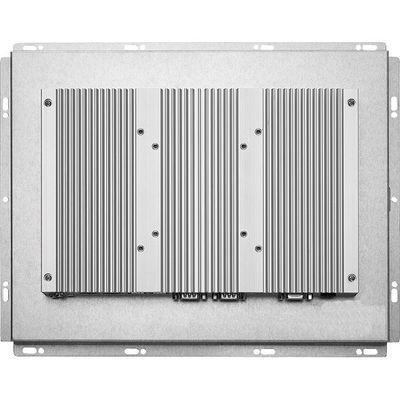

TFT Display Waterproof Panel PC Open Frame 21.5" Industrial Touch Screen PC


ITD Waterproof panel PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors.





BENEFITES OF Waterproof Panel PC



- 21.5" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)



- High-Luminance Solid-State LED-enhanced Backlighting



- 4GB, Max.8G System Memory





- 500GB HDD or 126GB SSD, Bigger Capacity Optional



-  Energy Efficient, Low Power Consumption





- High Environmental Performance and Reliability



- SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)



- Wide Operational Temperature Range, -10°C to +60°C



Open Frame High Brightness Panel PC



Model Name ITD21PPCG1HBF**
IP Rating N/A

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch/cm) 21.5”
Display Active Screen Size (mm) 476.64(H)X268.11(V)
Aspect Ratio 16:9
Physical Resolution 1920X1080
Maximum Resolution Supported 1920X1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 60W

Order Information



21.5”1000nits Open Frame Panel PC with Resistive Touch, J1900 ITD21PPCT1HBFJ1
21.5”1000nits Open Frame Panel PC with PCAP Touch, J1900 ITD21PPCT5HBFJ1
21.5”1000nits Open Frame Panel PC with IR Touch, J1900 ITD21PPCT2HBFJ1
21.5”1000nits Open Frame Panel PC with Tempered Glass, J1900 ITD21PPCG1HBFJ1
21.5”1000nits Open Frame Panel PC with Resistive Touch, i5 ITD21PPCT1HBFI5
21.5”1000nits Open Frame Panel PC with PCAP Touch, i5 ITD21PPCT5HBFI5
21.5”1000nits Open Frame Panel PC with IR Touch, i5 ITD21PPCT2HBFJ1
21.5”1000nits Open Frame Panel PC with Tempered Glass, i5 ITD21PPCG1HBFI5
