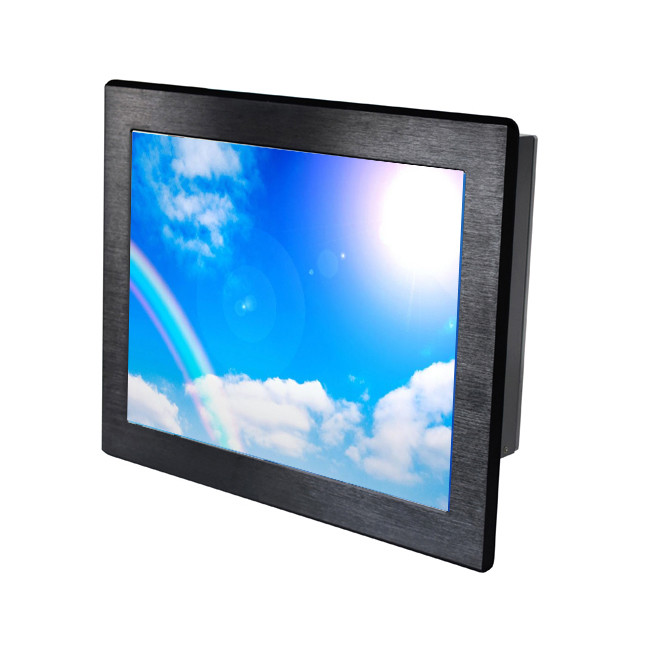

4GB RAM IP65 Panel PC 15 Inch Touch Screen Industrial Panel PC

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHousing Material | Steel Chassis | Color | Black Or Silver |
---|---|---|---|
Operating Humidity | 10%-90% (Non Condensing) | Name | IP65 Panel PC |
Brightness | 1000nits | CPU | J1900,i3,i5,i7 |
Resolution | 1024*768 | RAM | 4 GB |
Highlight | 4GB RAM IP65 Panel PC,Touch Screen IP65 Panel PC,15Inch Industrial Panel PC |
4GB RAM IP65 Panel PC 15 Inch Touch Screen Industrial Panel PC
BENEFITES of IP65 Panel PC
-Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional
-500GB HDD or 126GB SSD, Bigger Capacity Optional
-NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel
-Energy Efficient, Low Power Consumption
-Wide Operational Temperature Range, -10°C to +60°C
ITD high brightness IP65 panel touch computer features a wide operating temperature range for greater reliability in harsh environments which are common in marine applications. Either in on-shore and off-shore applications, it offers superior display as it is equipped with a dimmable sunlight readable feature. Moreover, there's an optional touchscreen capability for interactive applications. It also supports various I/O ports for flexible connectivity.
High Brightness Panel Mount Panel PC
|
|||
Model Name | ITD15PPCG1HB** | ||
IP Rating | IP65 Front Panel | ||
PC Systems Options
|
|||
ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p | |
Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
1×LAN | 1×LAN | 1×LAN | |
1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
LCD Panel
|
|||
Screen Diagonal (Inch/cm) | 15” | ||
Display Active Screen Size (mm) | 304.128(H)X228.096(V) | ||
Aspect Ratio | 4:3 | ||
Physical Resolution | 1024X768 | ||
Maximum Resolution Supported | 1920X1080 | ||
Colors | 16.7M | ||
Brightness (cd/m²) | 1000(1500 Optional) | ||
Contrast Ratio | 700:1 | ||
View Angels | 80/80/75/75 | ||
Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
Touch Panel
|
|||
Touch Options | Resistive, IR, PCAP, SAW | ||
Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
Operation
|
|||
Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
Humidity Range (RH) | 10-90% | ||
24/7/365 Use | Supported | ||
Power
|
|||
Power Indicator | Green LED | ||
Power Input | DC 12V | ||
Power Consumption | 45W | ||
Order Information
|
|||
15”1000nits Panel Mount Panel PC with Resistive Touch, J1900 | ITD15PPCT1HBJ1 | ||
15”1000nits Panel Mount Panel PC with PCAP Touch, J1900 | ITD15PPCT5HBJ1 | ||
15”1000nits Panel Mount Panel PC with IR Touch, J1900 | ITD15PPCT2HBJ1 | ||
15”1000nits Panel Mount Panel PC with Tempered Glass, J1900 | ITD15PPCG1HBJ1 | ||
15”1000nits Panel Mount Panel PC with Resistive Touch, i5 | ITD15PPCT1HBI5 | ||
15”1000nits Panel Mount Panel PC with PCAP Touch, i5 | ITD15PPCT5HBI5 | ||
15”1000nits Panel Mount Panel PC with IR Touch, i5 | ITD15PPCT2HBI5 | ||
15”1000nits Panel Mount Panel PC with Tempered Glass, i5 | ITD15PPCG1HBI5 |
