xHousing Material | Stainless Steel/Aluminum Alloy Chassis | Waterproof Cables | USB Cables, RJ45 Cable, Power Cable |
---|---|---|---|
Housing Type | VESA Mount/Panel Mount | Defaul Waterproof Connectors | 2*USB, 1*DC, 1*RJ45 |
Operating Temperature | -10~60℃(-20~70℃ Optional) | Waterproof WIFI | Optional |
MTBF | 50000H | Failure Rate | 0.3% |
Warranty | 1 Year For TFT Panel And 2 Years For Others | ||
High Light | rugged industrial computers,rugged industrial pc |
IP65 IP67 rugged insuatrial waterproof touch screen panel PC computer Windows Linux

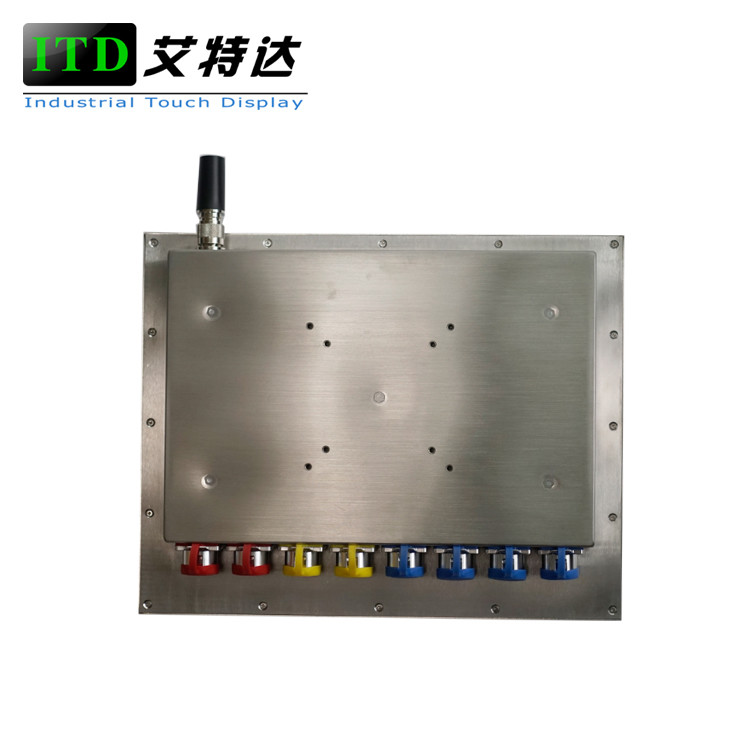

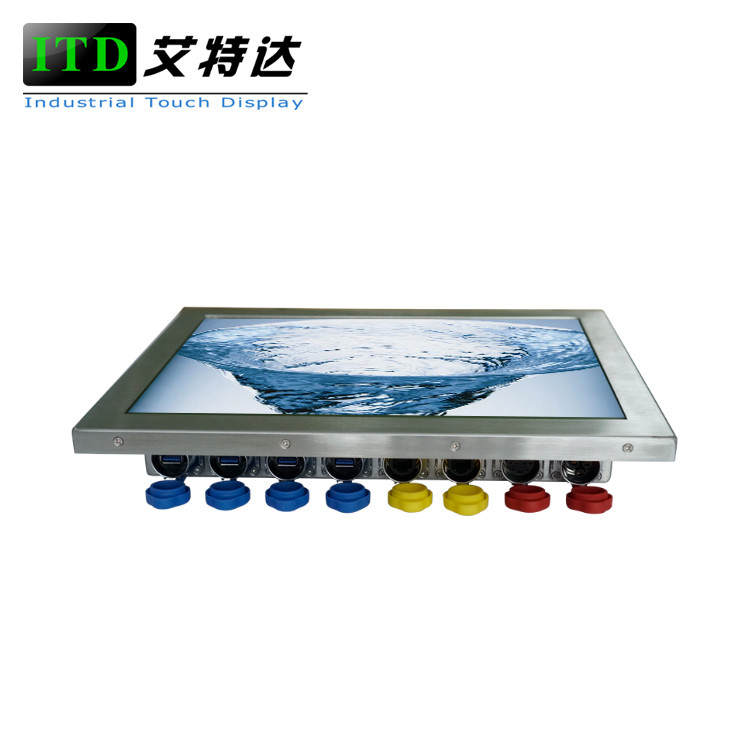

ITD line of Full IP65 Touchscreen Panel PCs is built to endure harsh and corrosive environments, enclosed in an all stainless steel/aluminum alloy housing with all directions designed to be water and dust proof making these computers ideal for wash down applications. Resistive touch or projected capacitive touch integrated that provides a user friendly interface which is encapsulated in a compact rugged housing for application with space limitations. It is powered by an Atom/Celeron fan less processor that integrates a network-ready computer board with sealed USB and RS-232 interface ports.maceutical applications in harsh environment.
FEATURES
▪ Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
▪ Full IP65 and sealed with anti-corrosive rubber to providing 360 degree protection
▪ Rugged Stainless steel enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection▪ Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Provides improved power efficiency and reduced consumption
▪ CE, FCC, RoHS Compliance
OPTIONALS
•SDD 64GB,128GB up to 526GB
•HDD 500GB up to 1TB
•High brightness, sunlight readable
•Resistive touch screen, PCAP touch screen
•Customization for other inches
•Aluminum alloy housing, Steel housing
•Full IP67
Model | ITD10PPCG1IPSJ1 | ITD12PPCG1IPSJ1 | ITD15PPCG1IPSJ1 | ITD17PPCG1IPSJ1 | ITD19PPCG1IPSJ1 | ITD21PPCG1IPSJ1 |
Size | 10.4” (4:3) | 12.1”(4:3) | 15” (4:3) | 17” (4:3) | 19” (4:3) | 21.5” (16:9) |
Active Area | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 211.2(W) x 158.4(H) | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) | 476.64(H)x248.25(V) |
Contrast Ratio | 500:1 | 500:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 |
Resolution | 800x600 or 1024x768 | 800x600 or 1024x768 | 1024x 768 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 |
Brightness | 300nits | 300nits | 300nits | 250nits | 250nits | 250nits |
Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
Backlight | LED | LED | LED | LED | LED | LED |
SPECIFICATION
System | CPU | Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor |
BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
Chipset | Intel® Baytrail SOC CPU Integrated | |
Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
Graphic Chipset | CPU integrated graphics HD and support 1080p | |
Storage | 64GB SSD or 500GB HDD | |
I/O | Serial Ports | 1x COM (Optional) |
USB Ports | 1 x USB 2.0(Waterproof Connector and Cable) | |
Power Port | 1 x 12V DC Jack(Waterproof Connector and Cable) | |
LAN | 1 x 10/100/1000Mbps Ethernet(Waterproof Connector and Cable) | |
WIFI | Built-in, 802.11a/b/g/h (optional) | |
Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
Response Time | ≤5ms | |
Interface | USB or COM, default to USB | |
Transparency | ≥85% | |
Lifetime | ≥50,000,000 times/click | |
OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
General | Power Input | DC 12V |
Power Switch | Optional | |
Mounting Option | 75 x 75/100 x 100mm VESA Mount | |
Operation/Power Saving | TBA | |
Operating Temperature | -10~60℃ | |
Storage Temperature | -20~70℃ | |
Operation Humidity | 10%~90%(No Condensation) | |
OS Support | Windows 7/ Windows XP/ Windows 8/ Linux | |
Mounting Method | VESA, embedded/panel mounting with clamps, desktop stand | |
Order Information | Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ1 | |
Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ1 | ||
Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ1 | ||
Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ2 | ||
Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ2 | ||
Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ2 | ||
Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPAJ1 | ||
Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPAJ1 | ||
Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPAJ1 | ||
Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPXJ1 | ||
Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPXJ1 | ||
Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPXJ1 |
Applications for Rugged Panel PCs
-Food processing plant automation control
-Kitchen application
-Chemical plant or laboratory
-Liquor Factory
-Clinical area / pharmaceutical / medical
-Operating and monitoring in Oil, Gas & Energy industry
-Industrial automation control in slaughtering house
-Railway/Transportation
