Touch Screen Rugged Panel PC 1024x768 Native Resolution For NFC Payment Kiosk

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD12PPCT5XE1-RFID/NFC-FP
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Native Resolution 1024x768 Brightness 300 Nits
CPU RM Quad Core RK3288 OS Android 5.1/6.0
Bluetooth Optional Mounting Method VESA, Embedded/panel Mounting With Clamps, Desktop Stand
High Light

rugged industrial computers

,

rugged industrial pc

Leave a Message
Product Description

Touch panel PC for Interactive Barcode Scanner Kiosk/NFC Payment Kiosk With Card Dispenser





FEATURES



• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.



Model ITD08PPCT5XE1 ITD101PPCT5XE1 ITD10PPCT5XE1 ITD12PPCT5XE1 ITD12PPCT5XE1W ITD15PPCT5XE1
Size 8”(4:3) 10.1”(16:9) 10.4” (4:3) 12.1” (4:3) 12.1” (16:10) 15” (4:3)
Active Area 162.0(W) x 121.5(H) 227.0(W) x 131.0(H) 211.2(W) x 158.4(H) 246.0(H) x 184.5(V) 261.12(H) x 163.2(V) 304.12(H)x 228.09(V)
Contrast 500:1 500:1 500:1 500:1 700:1 700:1
Resolution 800 x 600 1366 x 768 800 x 600 or 1024 x 768 800 x 600 or 1024 x 768 1280 x 800 1024 x 768
Brightness 250nits 300nits 300nits 300nits 300nits 250nits
Viewing Angles 70/70/50/70 80/80/80/80 70/70/60/70 70/70/60/60 80/80/80/60 80/80/60/70
Backlit LED LED LED LED LED LED
Model ITD156PPCT5XE1 ITD17PPCT5XE1 ITD173PPCT5XE1 ITD19PPCT5XE1 ITD19PPCT5XE1W ITD21PPCT5XE1
Size 15.6” (16:9) 17” (5:4) 17.3”(16:9) 19” (5:4) 19” (16:10) 21.5” (16:9)
Active Area 344.23(H)x 193.53(V) 337.92(H) x 270.33(V) 381.88(H) x 214.81(V) 376.32(H) x 301.06(V) 408.32(H) x 255.2(V) 476.64(H)x248.25(V)
Contrast 500:1 1000:1 700:1 1000:1 1000:1 1000:1
Resolution 1366 x 768 or 1920 x 1080 1280 x 1024 1920 x 1080 1280 x 1024 1440 x 900 1920 x 1080
Brightness 250nits 250nits 300nits 250nits 250nits 250nits
Viewing Angles 80/80/80/80 85/85/80/80 80/80/80/80 85/85/80/80 85/85/80/80 85/85/80/80
Backlit LED LED LED LED LED LED



SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input/Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

Operating Temperature -10~60℃(-20~70℃ optional)
Storage Temperature -20~70℃
Operating Humidity 10%~90% (Non Condensing)
Mounting Method VESA, embedded/panel mounting with clamps, desktop stand
Order Information Flat Bezel Panel Mount Android PC with Resistive Touch/ITD**PMT1XE1
Flat Bezel Panel Mount Android PC with Tempered Glass/ITD**PMG1XE1



Product display


 card reader kiosk
panel mount touch kiosk

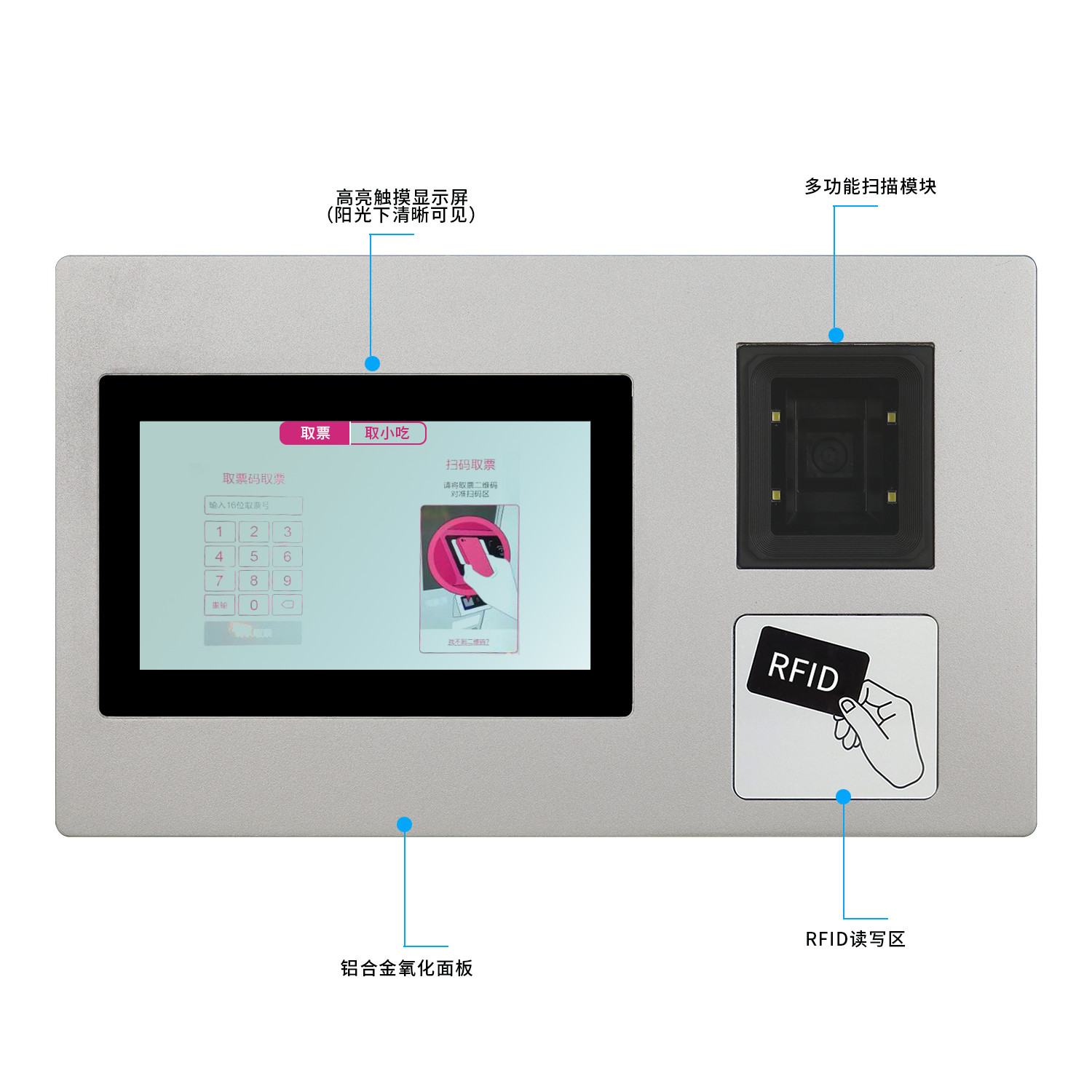

Touch Screen Rugged Panel PC 1024x768 Native Resolution For NFC Payment Kiosk 2

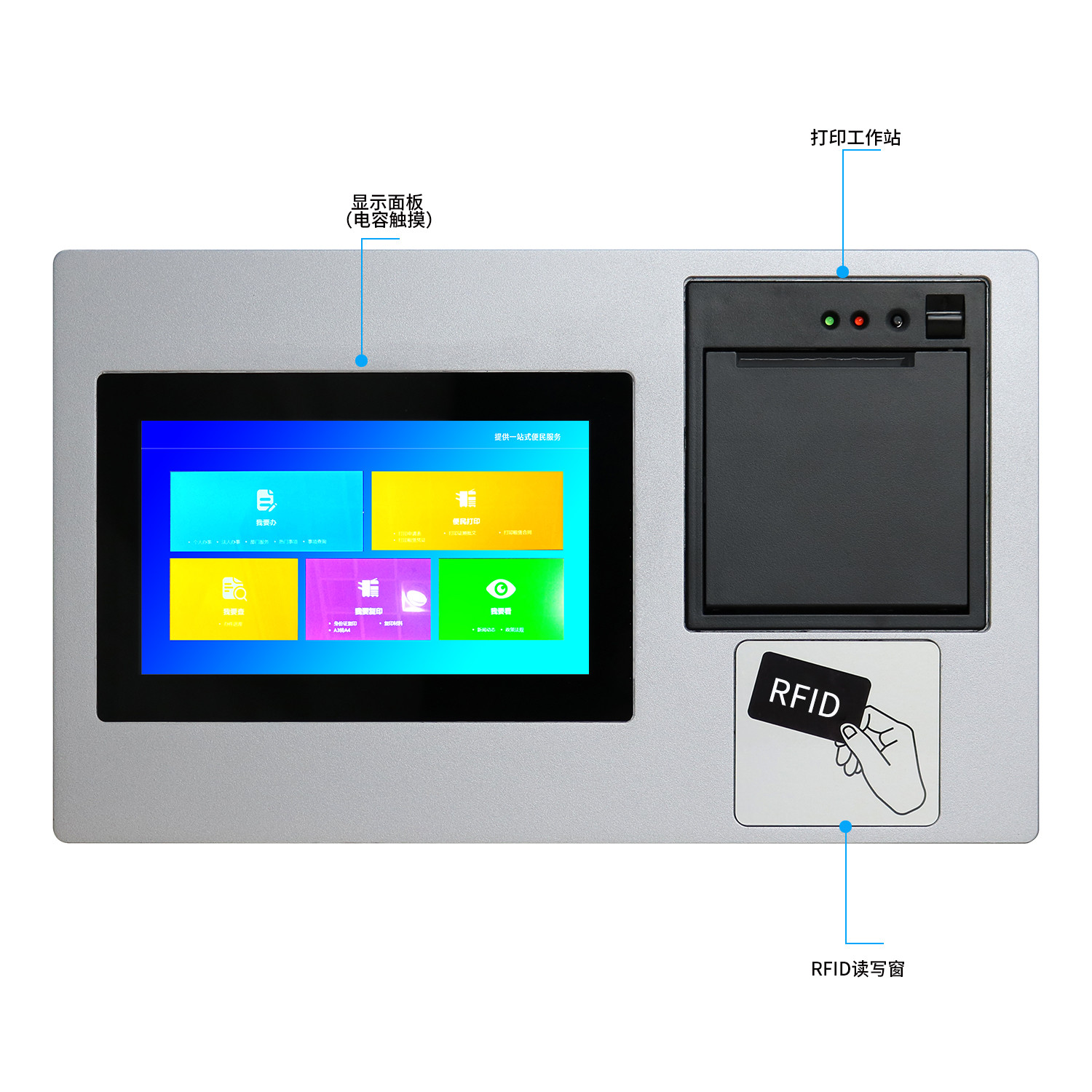

Touch Screen Rugged Panel PC 1024x768 Native Resolution For NFC Payment Kiosk 3
