All In One Rugged Panel PC 350 Nits Face Recognition Supported For Access Control

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-08PPCG1BEC
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 3-5working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU RK3288, RK3399 Screen Diagonal 8"
Brightness 350 Nits OS Android 7.1
Bluetooth Included IP Rating IP65 Front
Temperature Measurement Supported Face Recognition Supported
Touch Screen Optional Mounting Wall-Mounted, Desktop Stand
Card Reader Embedded
High Light

rugged industrial computers

,

rugged industrial pc

Leave a Message
Product Description

8 inch pass management temperature measurement face recognition all in One PC for access control

 ITD new product-Pass Management Vertical Module of Temperature Measurement & Face Recognition uses Rockchip RK3288/RK3399/Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identity. It supports 1:1 and 1:N face comparison and retrieval, face-with-mas recognition and human temperature detection. It supports automatic alarm for body temperature abnormality. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel.


Specifications








General parameters

Storage temperature-20℃~60℃
Power consumption13.5W(Max)

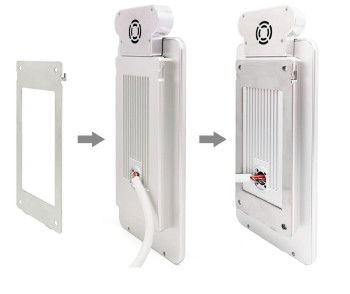

Installation methodScrewed by wall mount bracket


Size

Standard:274.24*128*21.48(mm)
IC card / ID card:296.18*132.88*25(mm)
Packing listMachine * 1, power adapter * 1, manual * 1, certificate of conformity * 1







128m











Function

Credit card readerNone (optional IC card reader, ID card, ID card)
Face DetectionSupports detection and tracking of multiple people at the same time
Face libraryUp to 30,000
1: N face recognitionSupport
1: 1 face comparisonSupport
Stranger detectionSupport
Identify distance configurationSupport
UI interface configurationSupport
Upgrade remotelySupport
Interface

Interfaces include device management, personnel

/ photo management, record query, etc.

Deployment methodSupport public cloud deployment, privatized deployment, LAN use, stand-alone use





Infrared thermal imaging module

Temperature detectionSupport
Temperature detection distance1 meter (optimal distance 0.5 meter)

Temperature measurement
accuracy

≤ ±0.5℃
Temperature measurement range10℃~42℃
Thermal field of view32 X 32℃

Visitors' temperatu- re is normal and
released directly

Support
Abnormal tem- perature alarmSupport (temperature alarm value can be set)



General parameters

PowerDC12V(±10%)
Operating temperature0℃~60℃








Camera

Resolution2 million pixels
TypeBinocular wide dynamic camera
ApertureF2.4
Focusing distance50-150cm
White balanceauto
Photo flood lightLED and IR dual photo flood light



Screen

Size8.0 inch IPS LCD screen
Resolution800×1280
TouchNot supported (optional support)



Processor

CPURK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
StorageEMMC 8G







Interface

Network moduleEthernet and wireless (WIFI)
Audio2.5W / 4R speakers
USB1 USB OTG, 1 USB HOST standard A port
Serial communication1 RS232 serial port
Relay output1 door open signal output
WiegandOne Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade buttonSupport Uboot upgrade button
Wired network1 RJ45 Ethernet socket
