15W 19" 250cd/m2 Rugged Panel PC RK3399 Stainless Steel Panel PC

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD19PPCG1IP**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 Optional) Screen Diagonal 19"
Graphics Supports Max. 4K Resolution Default Waterproof I/O 2 × USB, 1× RJ45, 1× DC12V. COM Ports, HDMI Output, Audio, Etc.
Input Voltage DC 12V 2.0 Operation/Power Saving 30-50W
High Light

250cd/M2 Rugged Panel PC

,

50W Rugged Panel PC

,

RK3399 Stainless Steel Panel PC

Leave a Message
Product Description

19" stainless steel enclosure rugged panel PC Android RK3288 RK3399 RK3368 All in one


The ITD Full IP65/IP66/IP67 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

Specifications



DISPLAY





Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 19”/4:3
Active Area/ Pixel Pitch 376.3(W) x 301.1(H)mm/0.294 × 0.294mm
Native Resolution/ Colors 1280 x 1024/16.7M
Brightness/ Contrast 250cd/m2 /1000:1
Response Time/ Viewing Angle(Typical) 5ms/85/85/80/80
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 30-50W
Environment Considerations Operating Temperature -10~60℃(-20~70℃ optional)
Storage Temperature -20~70℃
Mounting VESA Mount, Panel/Embedded Mount optional
Order Information 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD19PPCG1IP*E2
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD19PPCT1IP*E2
19” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD19PPCT5IP*E2
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD19PPCG1IP*J2
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD19PPCT1IP*J2
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD19PPCT5IP*J2
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD19PPCG1IP*I3
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD19PPCT1IP*I3
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD19PPCT5IP*I3
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD19PPCG1IP*I5
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD19PPCT1IP*I5
19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD19PPCT5IP*I5







Product Display

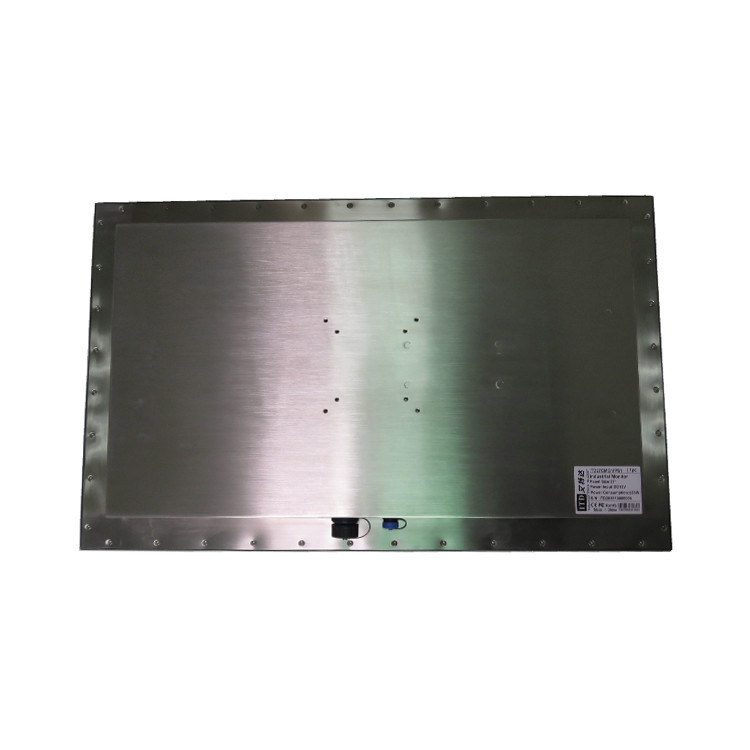

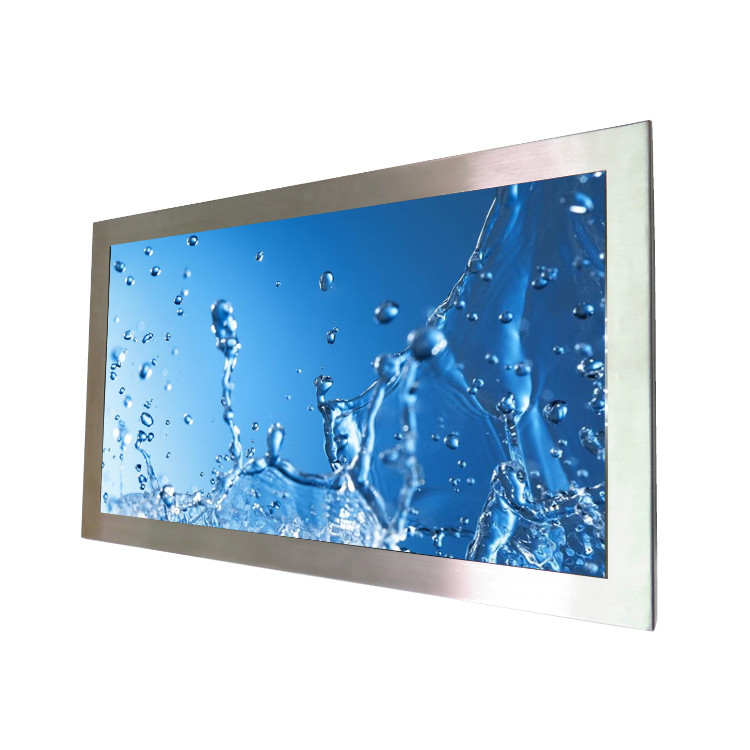

 15W 19" 250cd/m2 Rugged Panel PC RK3399 Stainless Steel Panel PC 0





15W 19" 250cd/m2 Rugged Panel PC RK3399 Stainless Steel Panel PC 1






 15W 19" 250cd/m2 Rugged Panel PC RK3399 Stainless Steel Panel PC 2




15W 19" 250cd/m2 Rugged Panel PC RK3399 Stainless Steel Panel PC 3
