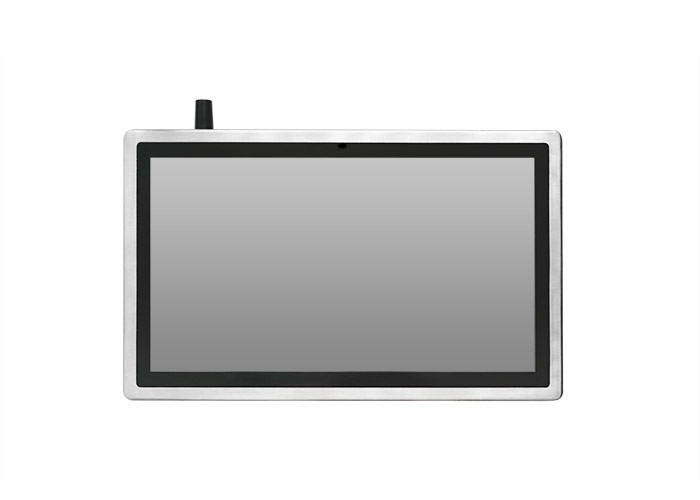

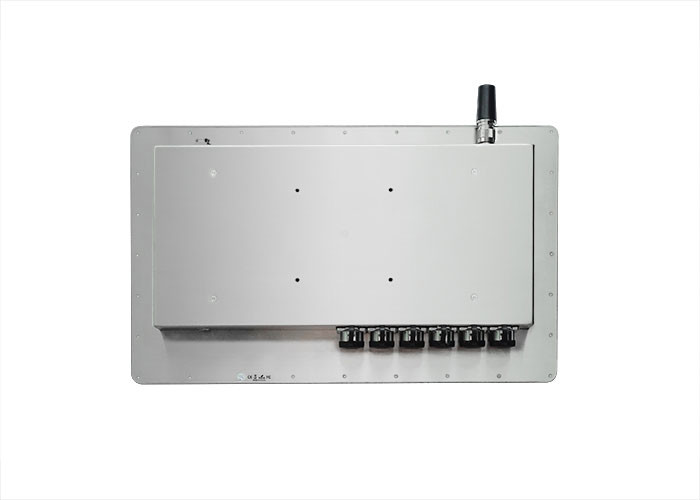

1280X1024 SS Rugged Industrial Panel PC 45W Resistive Capacitive Touch Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/i3/i5/i7/RK3288/RK3399 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 19" | Physical Resolution | 1280X1024 |
| Optional Functions | Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, GPS | Operating Temp | -10 To 60 C |
| Touch Screen | Resistive/capacitive Touch | ||
| High Light | SS Rugged Industrial Panel PC,1280X1024 Rugged Industrial Panel PC,45W Resistive Capacitive Touch Screen |
||
Product Description
Stainless steel rugged industrial panel PC true flat resistive capacitive touch screen all in one
FEATURES
• Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
• Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
• Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
• Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Provides improved power efficiency and reduced consumption
• CE, FCC, RoHS Compliance
Specifications
OPTIONALS
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding, IP67 |
| • Resistive, IR, PCAP touch screen, AR/AG tempered glass | • WIFI, 3G, 4G, Bluetooth |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. | • Stainless Steel, Aluminum Alloy |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 17”/4:3 | |
| Active Area/ Pixel Pitch | 337.92(W) x 270.34(H)mm/0.264 × 0.264mm | |
| Native Resolution/ Colors | 1280 x 1024/16.7M | |
| Brightness/ Contrast | 250cd/m2 /1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20-45W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃(-20~70℃ optional) | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD17PPCG1IP*E2 | |
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD17PPCT1IP*E2 | ||
| 17” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD17PPCT5IP*E2 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD17PPCG1IP*J2 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD17PPCT1IP*J2 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD17PPCT5IP*J2 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD17PPCG1IP*I3 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD17PPCT1IP*I3 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD17PPCT5IP*I3 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD17PPCG1IP*I5 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD17PPCT1IP*I5 | ||
| 17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD17PPCT5IP*I5 | ||
