Embedded Capacitive Rugged Panel PC Wall Mount 1024x768 300cd/M2

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD173PPCG1IP**
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000PCS/Month
Product Details
View Angels 85/85/85/85 IP Rating IP66/IP67
Touch Options Resistive, PCAP Resolution 800x600 Or 1024x768
System Intel J1900/i3/i5/i7,Android Serial Ports 1x COM (Optional)
USB Ports 1 X USB 2.0(Waterproof Connector And Cable) Power Port 1 X 12V DC Jack(Waterproof Connector And Cable)
LAN 1 X 10/100/1000Mbps Ethernet(Waterproof Connector And Cable)
High Light

Embedded Capacitive Rugged Panel PC

,

1024x768 Rugged Panel PC

,

300cd/m2 Industrial Panel PC

Leave a Message
Product Description

pure flat wall mount embedded capacitive touch screen industrial panel PC


OPTIONALS


• DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
• Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy


FEATURES

•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance


Specifications:



PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio17.3”/16:9
Active Area/ Pixel Pitch381.89(H) x 214.81(V)mm/0.1989 × 0.1989mm
Native Resolution/ Colors1920 x 1080/262K
Brightness/ Contrast300cd/m2/800:1
Response Time/ Viewing Angle(Typical)30ms/85/85/85/85
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving20~45W
Environment ConsiderationsOperating Temperature-10~60℃(-20~70℃ optional)
Storage Temperature-20~70℃
MountingVESA Mount, Panel/Embedded Mount optional
Order Information17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD173PPCG1IP*E2
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD173PPCT1IP*E2
17.3” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD173PPCT5IP*E2
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD173PPCG1IP*J2
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD173PPCT1IP*J2
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD173PPCT5IP*J2
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD173PPCG1IP*I3
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD173PPCT1IP*I3
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD173PPCT5IP*I3
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD173PPCG1IP*I5
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD173PPCT1IP*I5
17.3” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD173PPCT5IP*I5




Product Display:

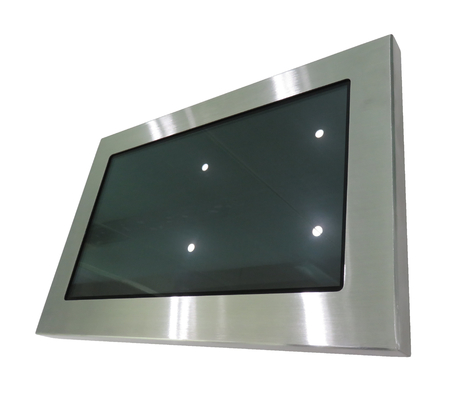

316L stainless steel panel PC

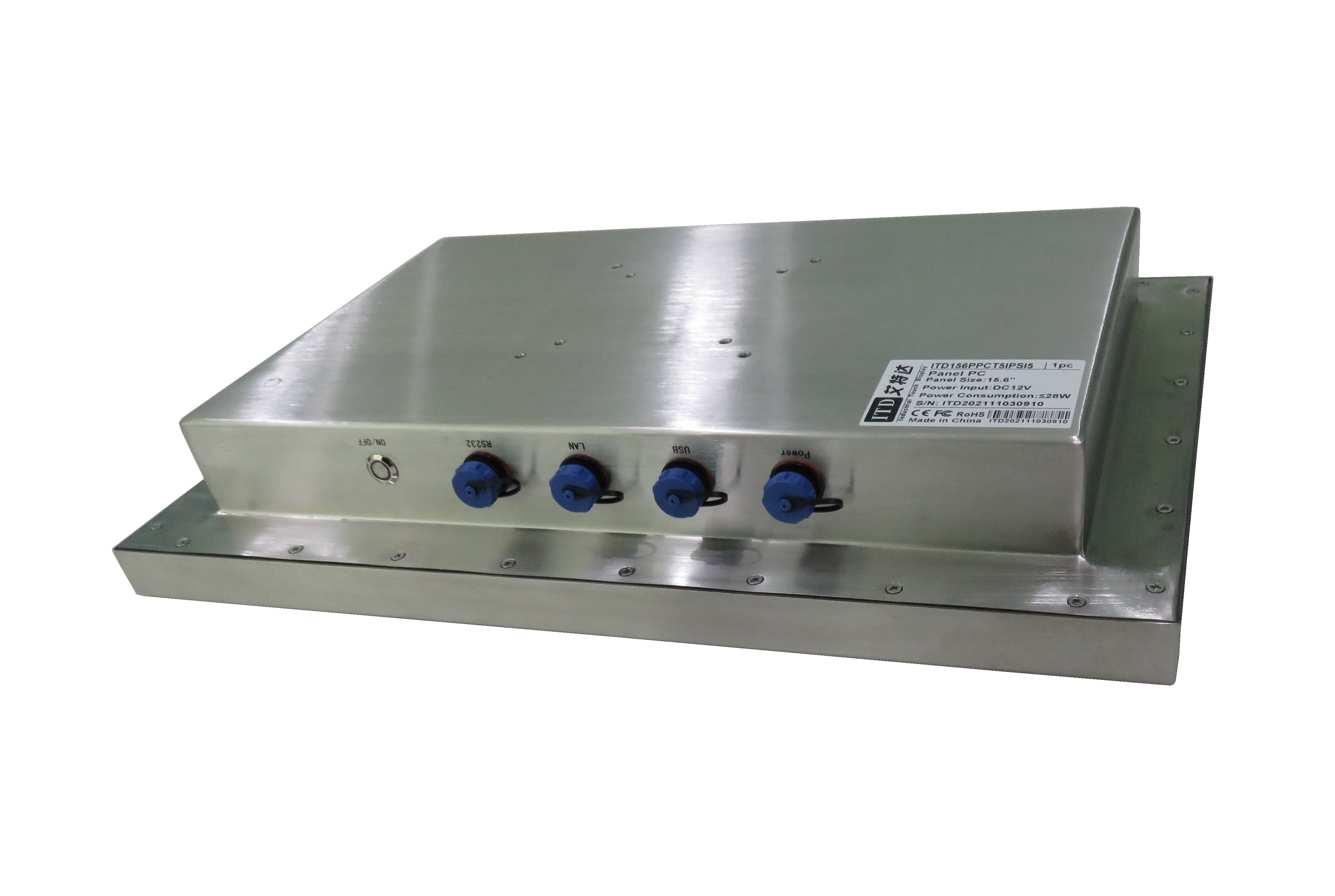

IP66 waterproof panel PC








APPLICATION
