Fully Sealed SS Rugged Panel PC 17 Inch IP66 Waterproof Explosion Proof Monitor

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD17PPCG1IP**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel J1900/i3/i5/i7/RK3288 Material Stainless Steel Housing
Screen Diagonal 17" Display Active Screen Size 337.92(W) X 270.34(H)mm
Physical Resolution 1280X1024 Optional Functions Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, GPS
High Light

Waterproof explosion proof monitor

,

Fully Sealed Rugged Panel PC

,

IP66 Rugged Panel PC

Leave a Message
Product Description

17 inch stainless steel waterproof fully sealed IP66 explosion proof monitor integrated panel PC


FEATURES of IP66 panel PC
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance

Specifications of stainless steel waterproof panel PC


OPTIONALS

• DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
• Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy

DISPLAY

PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio17”/4:3
Active Area/ Pixel Pitch337.92(W) x 270.34(H)mm/0.264 × 0.264mm
Native Resolution/ Colors1280 x 1024/16.7M
Brightness/ Contrast250cd/㎡/1000:1
Response Time/ Viewing Angle(Typical)5ms/85/85/80/80
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving20-45W
Environment ConsiderationsOperating Temperature-10~60℃
Storage Temperature-20~70℃(-20~70℃ optional)
MountingVESA Mount, Panel/Embedded Mount optional
Order Information17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD17PPCG1IP*E2
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD17PPCT1IP*E2
17” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD17PPCT5IP*E2
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD17PPCG1IP*J2
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD17PPCT1IP*J2
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD17PPCT5IP*J2
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD17PPCG1IP*I3
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD17PPCT1IP*I3
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD17PPCT5IP*I3
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD17PPCG1IP*I5
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD17PPCT1IP*I5
17” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD17PPCT5IP*I5

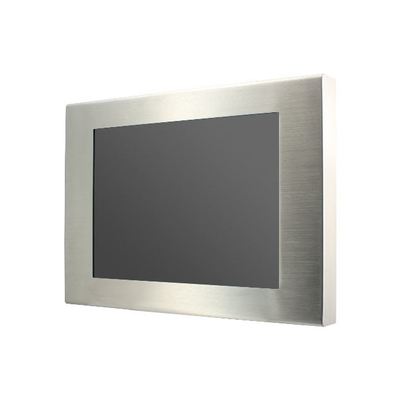

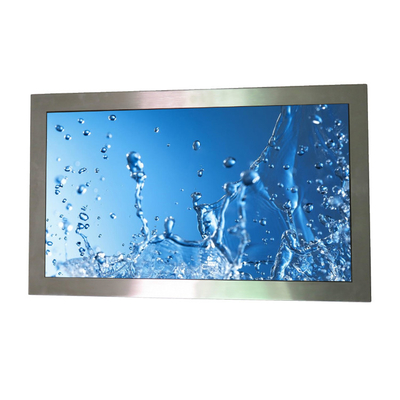

Product Display


stainless steel explosion proof



IP67 stainless steel panel PC



IP67 water proof pure flat panel PC
