Intel J4125 Industrial All In One Touch PC 15" 1000nits Waterproof Front IP65

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD15PPCT5B-J4125
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Aluminum Housing Housing Type Panel Mount, VESA Mounting
Operating Temperature -20~60℃(-20~70℃ Optional) I/O 4 X USB2.0 , 2 X USB3.0 (J4125/J6412) 1 1 2 X USB2.0 , 4 X USB3.0 (8th/10th/11th Intel Core I5/i7) 2 X DB-9 COM1&COM2,RS-232/422/485
IP Rate IP65 On Front Brightness 350nits 1000nits
CPU Lntel Celeron J4125/J6412 CPU Lntel Core 8/10/11th Gen. I5/i7 CPU OS Support Windows 7, Windows 10, Windows 11
MTBF 50000h
High Light

FCC industrial all in one touch pc

,

Fanless industrial all in one touch pc

,

1000nits waterproof touch Panel PC

Leave a Message
Product Description

industrial all in one touch pc 15" 1000nits waterproof Intel J4125



Features of Windows 11 panel pc

  • Onboard Intel® Celeron J4125/J6412 or 8th/10th intel Core i5/i7
  • Flat Bezel Panel mount supported
  • Die-Casting Aluminum Housing with Fanless Operation
  • IP65 Front Bezel
  • Windows 11, TPM 2.0 Supported
  • Wide DC Support 9 ~ 36V
  • Multiple I/Os
  • Multi touch capacitive or resistive touch



Applications of fanless panel PC

  • Automation
  • Transportation&Logistics
  • Robots
  • IoT
  • Marine
  • Fitness clubs
  • Warehouse&Logistics
  • Healthcare
  • Government
  • Smart charging station



Processor lntel Celeron J4125/J6412 CPU
lntel Core 8/10/11代-U i5/i7 CPU
System Memory J4125/J6412: DDR4 SODIMM x1
Core i5/i7: DDR4 SODIMM x2
Ethernet 2x 2.5 GbE R
J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V)
I/O Port

4 x USB2.0 , 2 x USB3.0 (J4125/J6412)
1 1 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th intel Core i5/i7)
2 x DB-9 COM1&COM2,RS-232/422/485

1 x Audio Line-out

2 x 8Ω 1W Audio AM P out (Optional)

1 x AT/ATX switch

1 x HDMI

1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO,
1x Remote switch

Storage Disk Driver 1 x M.2 2242/2260/2280 SATA
1 x SATA(2.5'' SATA )
1 x M.2 2280 NVME
Expansion Slot M.2 3042/3052 with SIM Card for 3G/4G/5G
M.2 2230 WiFi/Bluetooth
Watchdog timer 1~655 35S
OS support Windows® 10/11, WES 10, LINUX
Construction Aluminum
Mounting VESA 75/ 100 Panel mount



Operating TMP -20°C ~ 60 °C
Storage TMP - 30°C ~ 70°C
Storage Humidity 10~90% @30°C, non-condensing
DC Input DC 9 ~ 36V 4-pin M12 connector
Display Type 15.0" TFT-LCD
Max.Resolution 1024*768
Max.Colors 16.7M
Luminance 350 cd/m²
Viewing Angle(CR>=10) -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V )
Back Light MTBF (hours 50000H

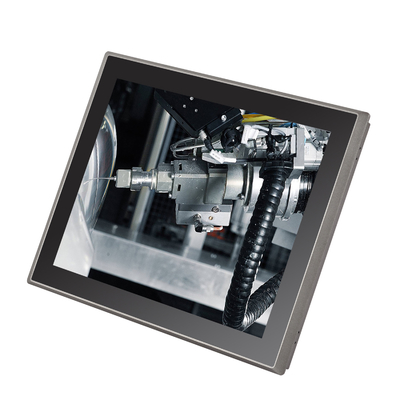

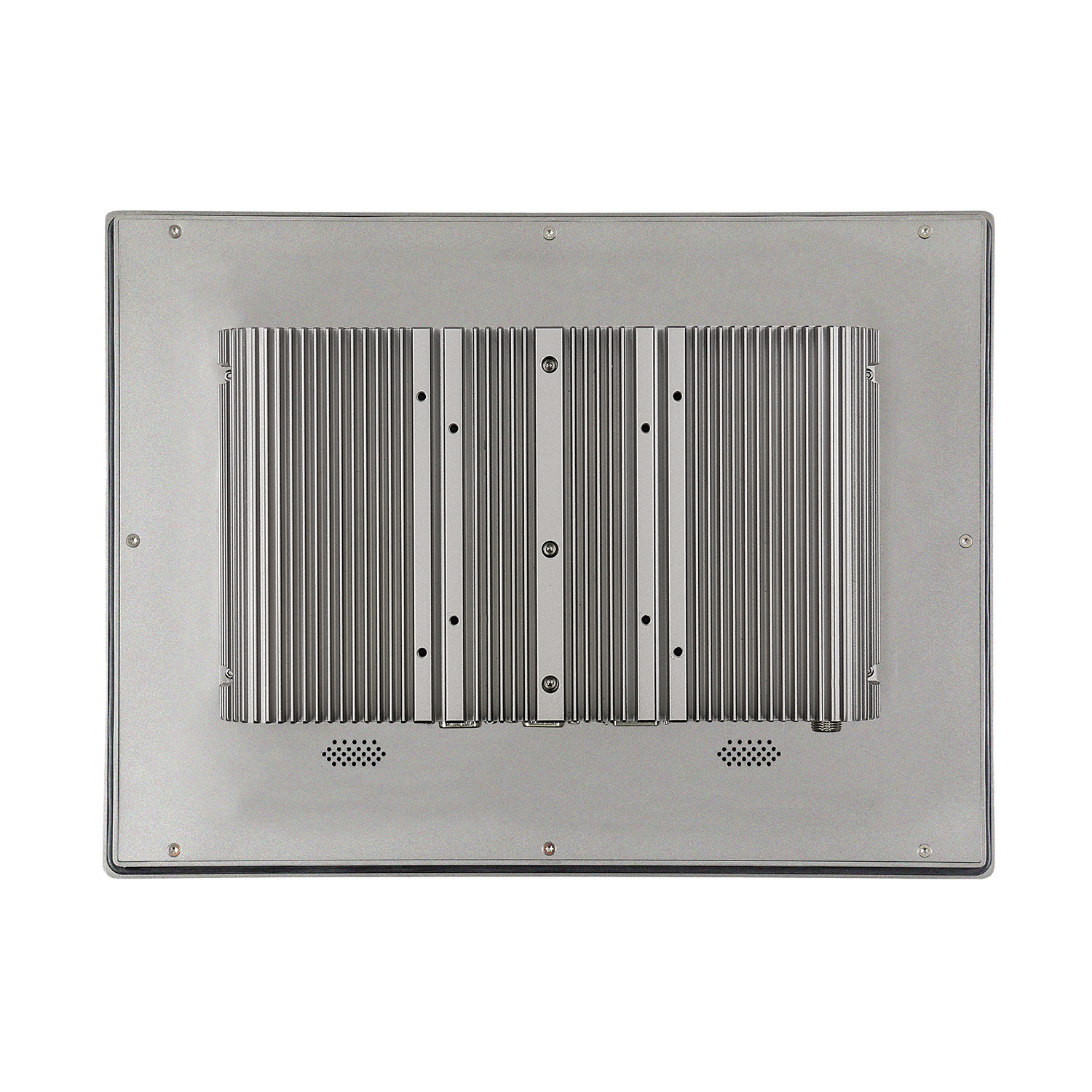

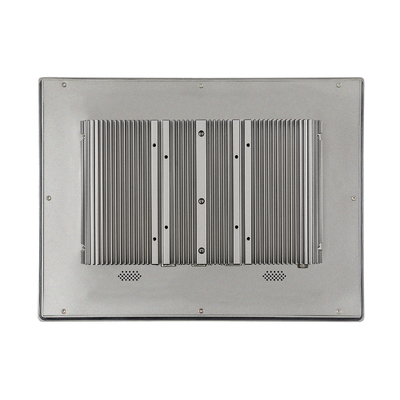

Photos of Industrial all ine one touch PC 15"

Intel J4125 Industrial All In One Touch PC 15" 1000nits Waterproof Front IP65 0

Intel J4125 Industrial All In One Touch PC 15" 1000nits Waterproof Front IP65 1
