15.6 Inch FHD Industrial Panel Mounted Touch Screen PC With Intel I7-10610U
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Die-Casting Aluminum Housing | Housing Type | Panel Mounted, VESA Mounting |
|---|---|---|---|
| Operating Temperature | -20~60℃(-20~70℃ Optional) | I/O | 4 X USB2.0 , 2 X USB3.0 (J4125/J6412) 1 1 2 X USB2.0 , 4 X USB3.0 (8th/10th/11th Intel Core I5/i7) 2 X DB-9 COM1&COM2,RS-232/422/485 |
| IP Rate | IP65 On Front | Brightness | 350nits, 1000nits Optional |
| CPU | Lntel I7-10610U | OS Support | Windows 7, Windows 10, Windows 11 |
| MTBF | 50000h | Resolution | FHD 1920x 1080 |
| High Light | IP65 panel mounted touch screen pc,FHD panel mounted touch screen pc,I7-10610U industrial panel PC |
||
Product Description
15.6 inch FHD industrial panel mounted touch screen pc with Intel i7-10610U
Features of industrial panel mounted touch screen pc
- Onboard powerful Intel® i7-10610U
- Flat Bezel Panel mount supported
- Die-Casting Aluminum Housing with Fanless Operation
- IP65 Front Bezel
- Windows 11, TPM 2.0 Supported
- Wide DC Support 9 ~ 36V
- High brightnesss optional
- Multi touch capacitive or resistive touch
- FHD at 1920x1080
Applications of IP65 panel PC
- Automation
- Transportation&Logistics
- Robots
- IoT
- Marine
- Fitness clubs
- Warehouse&Logistics
- Healthcare
- Government
- Smart charging station
- Gas Station
- Amusement Park
| Processor | lntel Celeron J4125/J6412 CPU lntel Core 8/10/11代-U i5/i7 CPU |
| System Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Ethernet | 2x 2.5 GbE R J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V) |
| I/O Port |
4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 1 x Audio Line-out 2 x 8Ω 1W Audio AM P out (Optional) 1 x AT/ATX switch 1 x HDMI 1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO, |
| Storage Disk Driver | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Expansion Slot | M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth |
| Watchdog timer | 1~655 35S |
| OS support | Windows® 10/11, WES 10, LINUX |
| Construction | Aluminum |
| Mounting | VESA 75/ 100 Panel mount |
| Operating TMP | -20°C ~ 60 °C |
| Storage TMP | - 30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| DC Input | DC 9 ~ 36V 4-pin M12 connector |
| Display Type | 15.6" TFT-LCD |
| Max.Resolution | 1920*1080 |
| Max.Colors | 262K |
| Luminance | 250 cd/m² |
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V ) |
| Back Light MTBF (hours | 30000H |

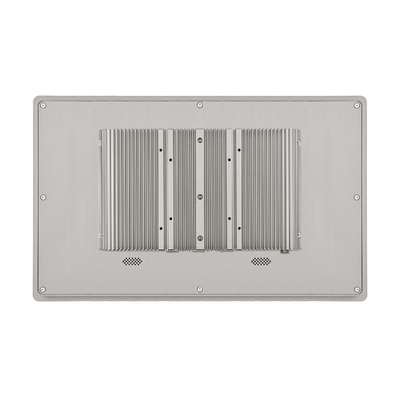

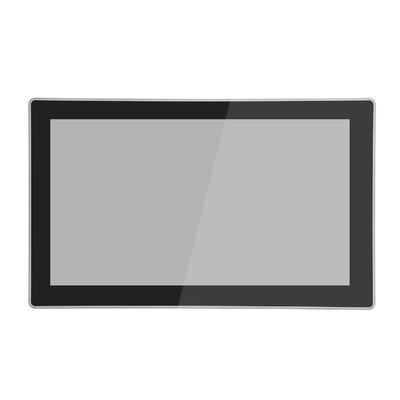

Photos of 15.6" industrial touch screen PC
