19" Integrated Buttons Operation Panel PC HMI industrial waterproof panel PC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
19" Integrated Buttons Operation Panel PC HMI industrial waterproof panel PC
ITD integrated buttons operation panel PC typically features a touchscreen display, allowing users to interact directly with the interface by tapping or swiping on the screen. In addition to the touchscreen functionality, the device incorporates physical buttons that are strategically placed on the panel for specific functions. These buttons may serve as shortcuts, control inputs, or dedicated keys for certain tasks, enhancing the overall user experience and efficiency. It is mainly used for industrial automation, manufacturing control systems, medical equipment interfaces, and more. The integration of physical buttons with a touchscreen interface aims to strike a balance between the convenience of touch interaction and the precision of dedicated buttons, catering to a wide range of user preferences and operational requirements.
Specifications:
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 19”/4:3 | |
| Active Area/ Pixel Pitch | 376.3(W) ×301.1(H)mm/0.294× 0.294mm | |
| Native Resolution/ Colors | 1280×1024/16.7M | |
| Brightness/ Contrast | 250cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900//J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional
| 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD | 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; COM port(optional); 1×Realtek ALC662 Line-Out /MIC IN | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 1×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Android 7.1/8/10/11 Linux Ubuntu(optional) | Windows 7/10, Linux Windows 11(available for J4125/J6412) | Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V input |
| Operation/Power Saving | 15~30W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 19” Integrated Buttons Panel PC with PCAP Touch RK3288/ITD19PPCT5OE1 | |
| 19” Integrated Buttons Panel PC with Resistive Touch RK3288/ITD19PPCT1OE1 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch RK3568/ITD19PPCT5OE3 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch RK3568/ITD19PPCT1OE3 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch J1900/ITD19PPCT5OJ1 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch J1900/ITD19PPCT1OJ1 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch J4125/ITD19PPCT5OJ4 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch J4125/ITD19PPCT1OJ4 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch J6412/ITD19PPCT5OJ6 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch J6412/ITD19PPCT1OJ6 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch i3/ITD19PPCT5OI3 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch i3/ITD19PPCT1OI3 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch i5/ITD19PPCT5OI5 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch i5/ITD19PPCT1OI5 | ||
| 19” Integrated Buttons Panel PC with PCAP Touch i7/ITD19PPCT5OI7 | ||
| 19” Integrated Buttons Panel PC with Resistive Touch i7/ITD19PPCT1OI7 | ||

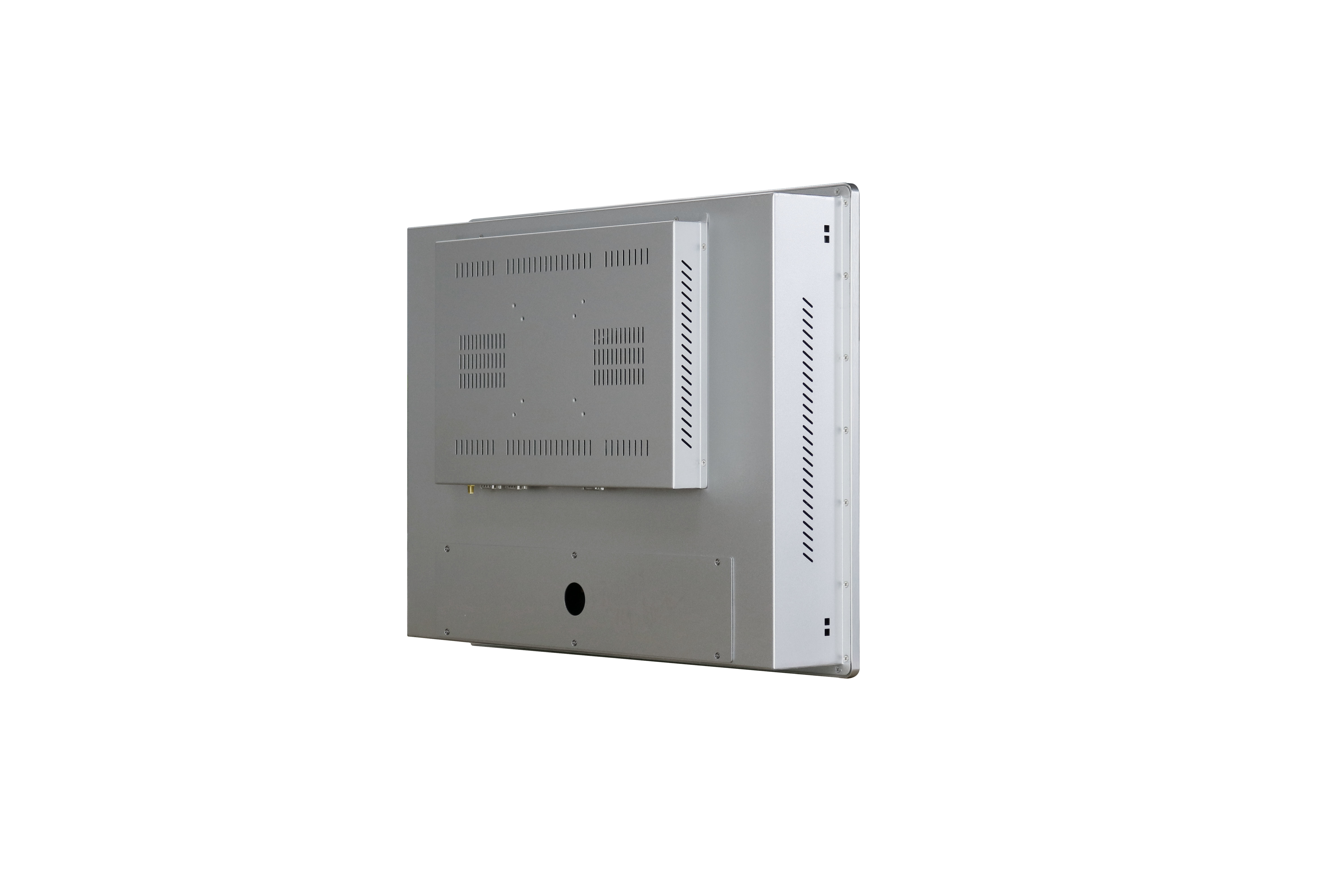

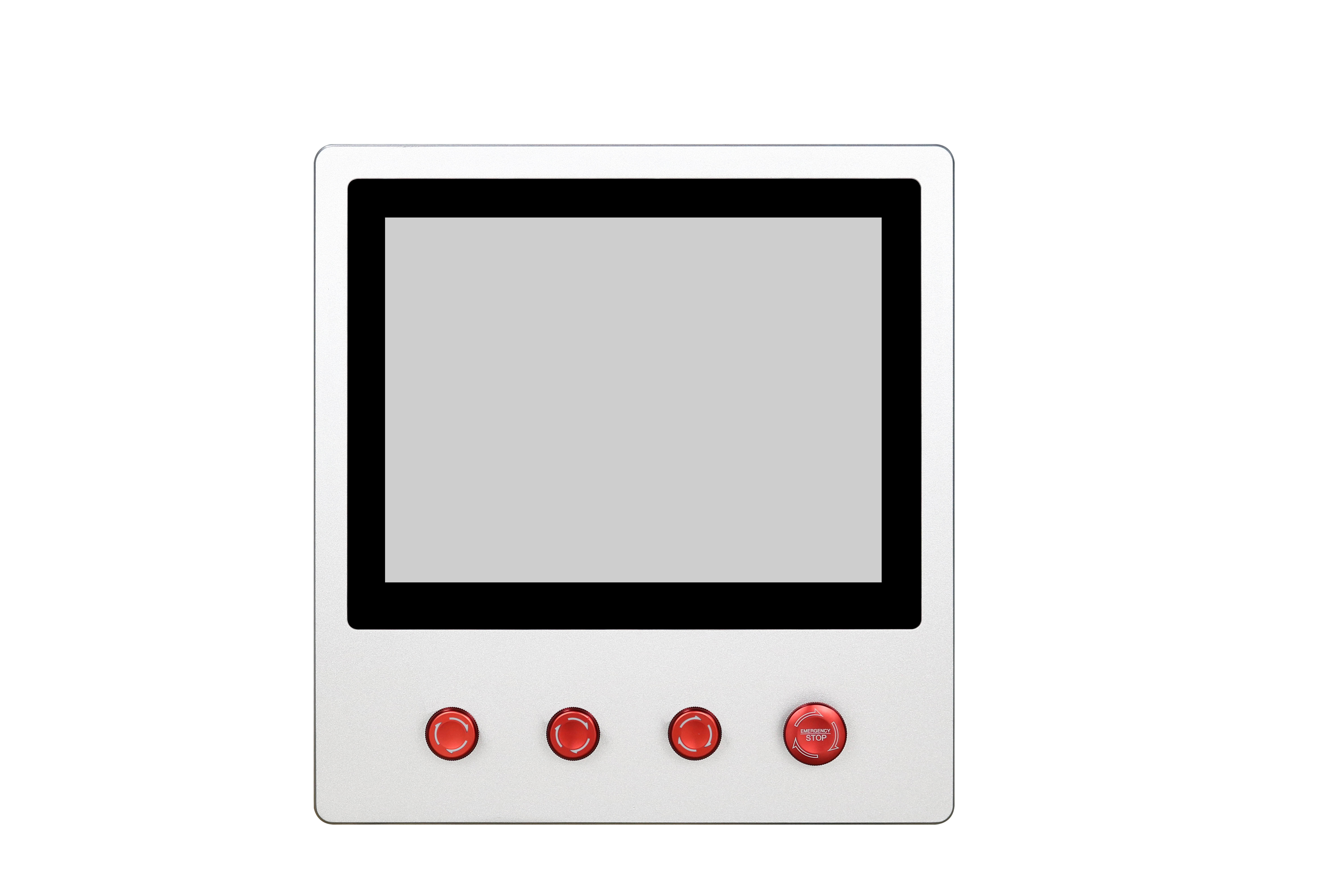

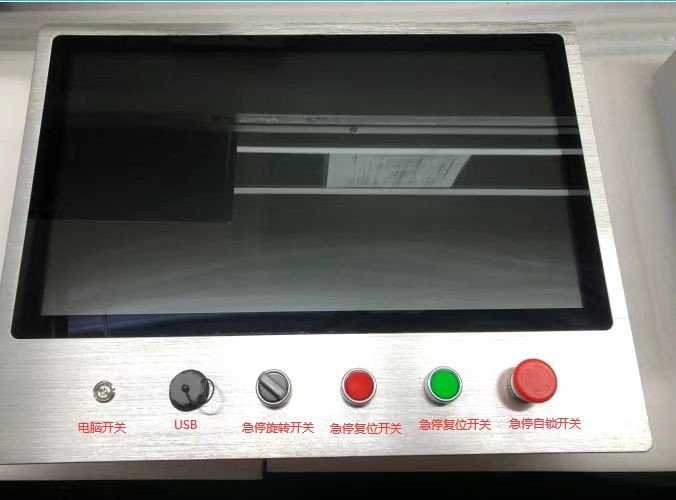

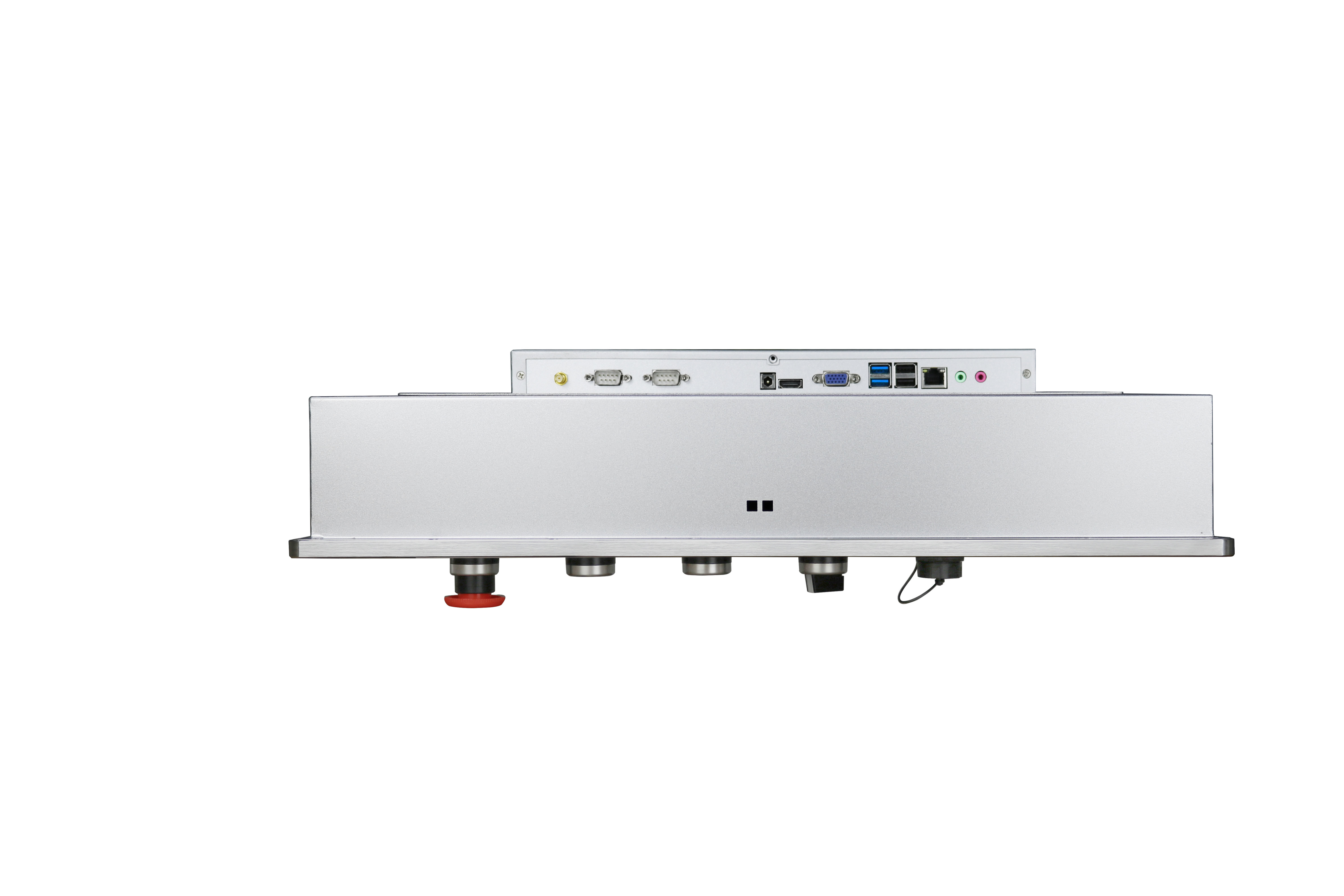

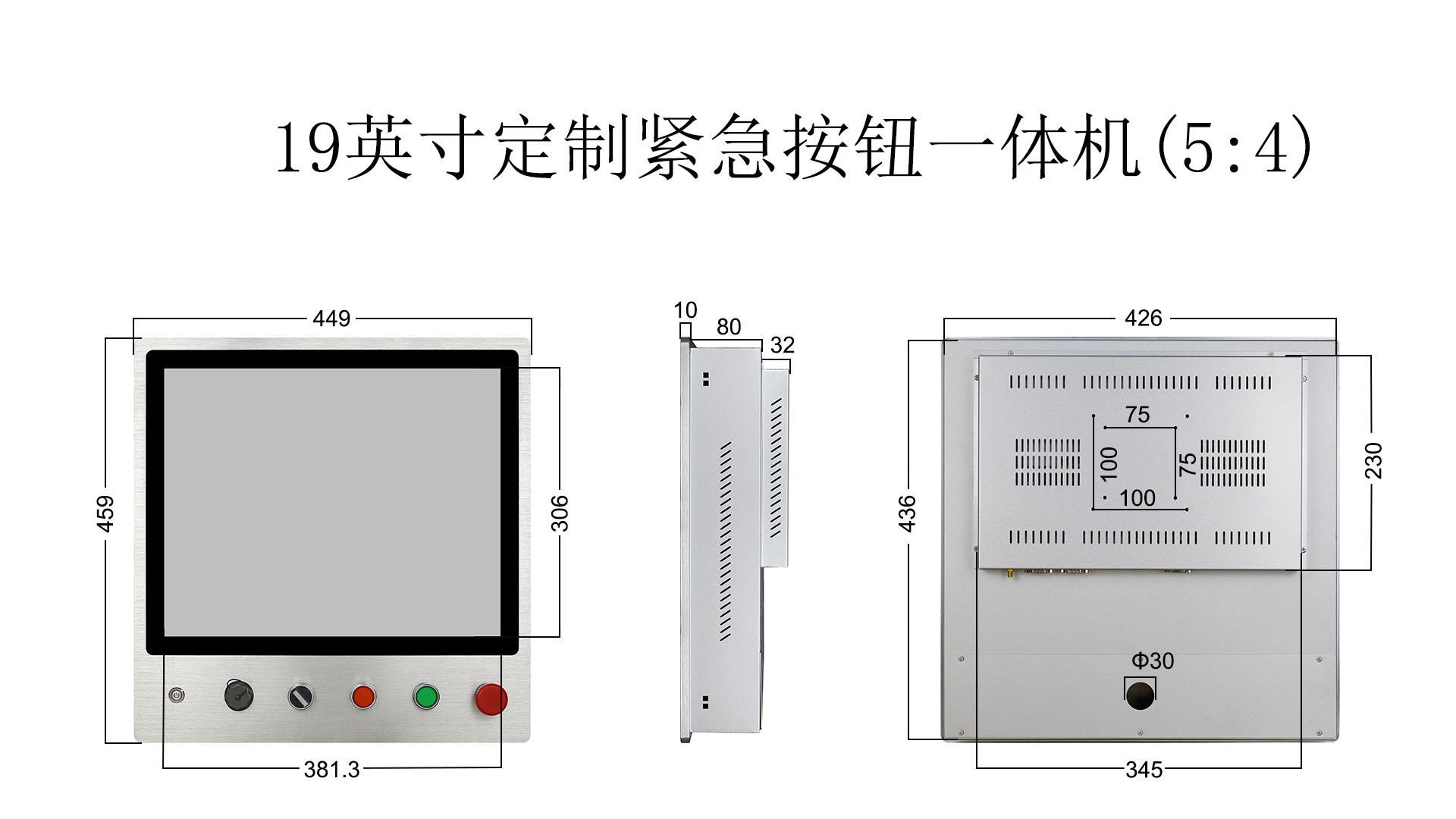

Product Display
